Centrifugal Blowers NCF9735 Series

Brief Introduction:

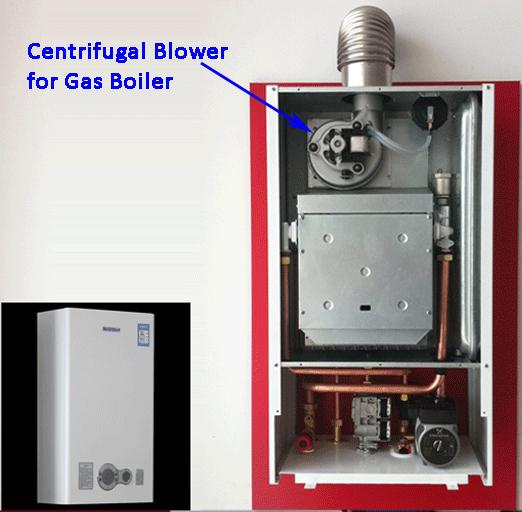

1. It’s mainly used for gas boiler, fuel boiler, pellet stove, water boiler, home air-pipe, etc. The input power can be adjusted during 25~65W.

2. The air-housing can be made of die-cast aluminium or galvanized steel,  the fan wheel can be made of sheet aluminium or galvanized steel, and  the motor can be of shaded pole type, capacitor type, or brushless one.

3. Long lifetime, low noise, stable running & withstand high temperature.

4. Class 180 (H) insulation, ambient temperature permits 250°C.

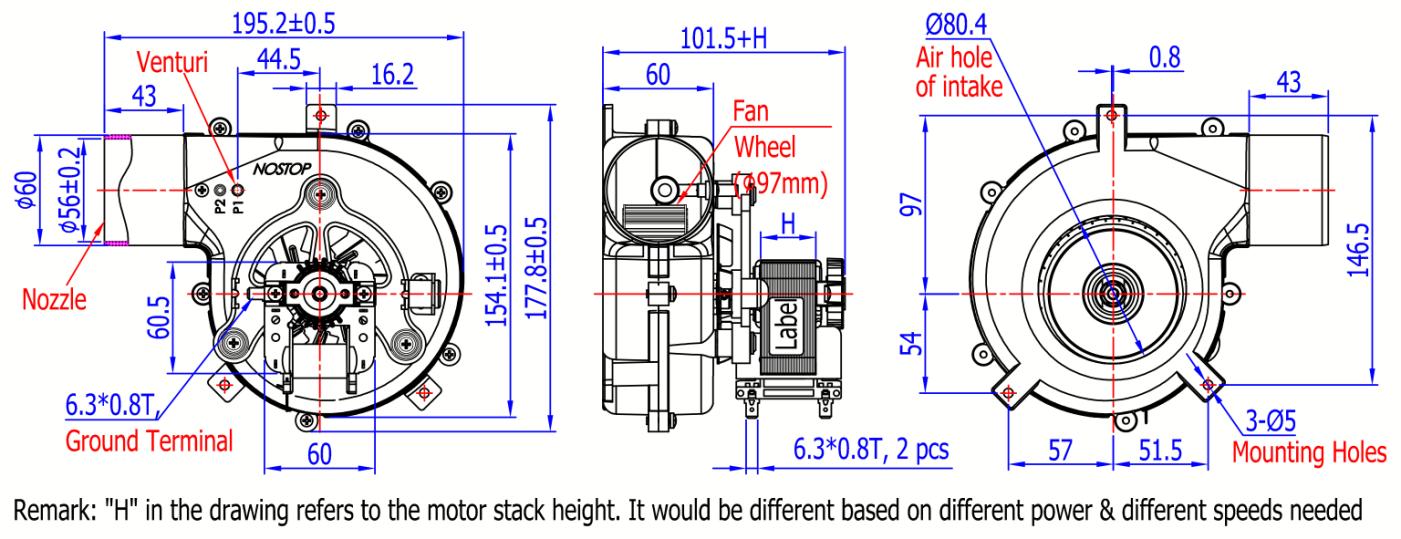

Basic Dimensions (viewed by 1st angle):

Notes: Based on the same fan wheel and air housing, adjusting the motor stack & design, the specs are as follow

Technical Performances of Some Typical Models:
Models of the Blower		Motor  Height	Rated Supply		Technical Performances
			Volt.	Freq'y	Input  Power	Input  Current	Output  Speed	Max. Air  Pressure	Max.  Airflow	Noise
		(H)	(VAC)	(Hz)	(W)	(A)	(rpm)	(Pa)	(m3 /h)	(dB)
NCF9735-SP6025B-25W		25mm	220	50	25	0.21	1500	136	72.0	≤50
NCF9735-SP6025B-35W		25mm	220	50	35	0.33	1950	193	98.5	≤57
NCF9735-SP6030B-45W		30mm	220	50	45	0.46	2200	256	118.0	≤61

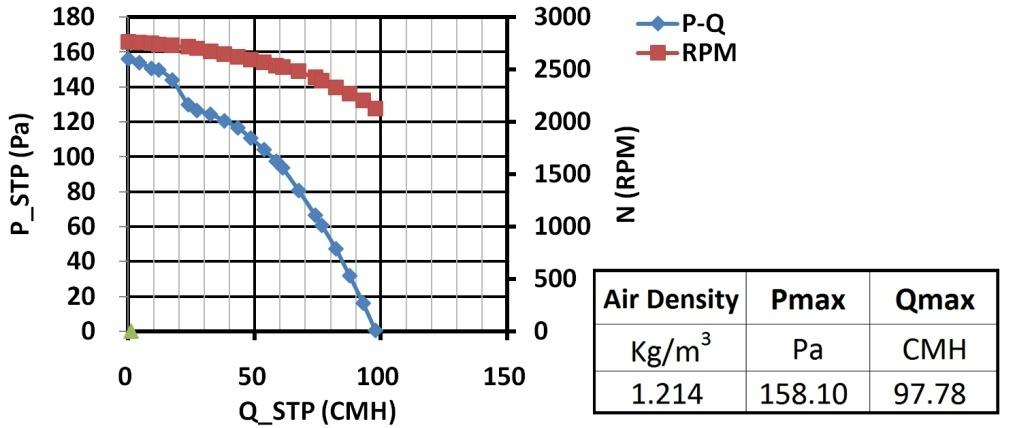

Performance Curve of NCF9735-SP6025B35 (as an example):
