BLDC Cooler motor 7500# Air Cooler

7500# Air Cooler Energy Grade: A+++

Airflow:	7500+ CMH
Motor Type:	3 Phase External Rotor BLDC Motor

Specification of BLDC Motor

Rated Voltage:	220 VAC
Rated Frequency:	50 Hz
Input Power:	400 Watts
Input Current:	1.89 Amp
Output Speed:	340 RPM
Output Torque:	10 N.M
Ps:	70 Pa
Pv:	110 Pa
Power Factor:	0.991 Unit
Starting Speed:	80 RPM

Specification of Motor Driver

Input Voltage:	180 ~ 265 VAC
Speed control:	Through RS485
Power Factor Correction (PFC):	Yes
Protection Grade:	IP55
Water Pump Control Section:	Yes
Drain Pump Control Section:	Yes
Hall Sensor Requirements:	Sensorless Drive
Residual Current Circuit Breaker:	Yes (RCCB)
Max. Leakage Current:	30 mA
Alarm Time:	≤100 mS
Rating of Fuse:	8.0 Amp Time-lag Fuse

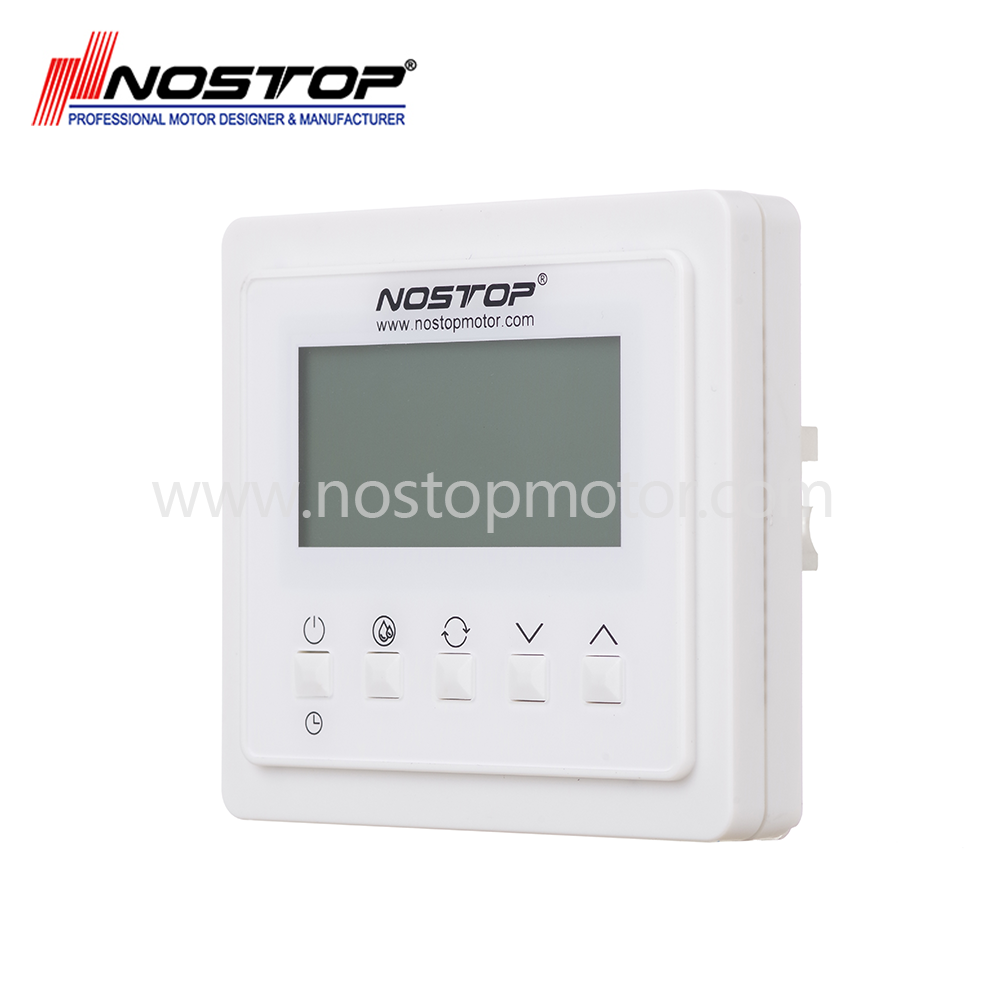

Specification of Control Panel

Input Voltage:	180 ~ 265 VAC
Input Current:	100 mA
Display:	LCD display
Control Methods:	5 Keys and Remote control
Control Interface:	RS485
Rating of Fuse:	1.0 Amp Time-lag Fuse
