DC Air Circulation Fan

  • NF12W-BWV(H)

Availability:
Quantity:

Product Name: DC Air Circulation Fan

Model: NF12W-BWV(H)

Specifications: 100-240V~50/60Hz
NO Product Description
1

AC Adapter: Input: AC 100-240V, 50/60HZ, 0.6A; Output: DC 12V、2A

Charging cable length: 1.5m (customizable); Rated power: 18W

2

Size of a Product: 321x321x1104mm

Size of a Package: φ321x132 mm

3Battery: 16850 lithium-ion battery pack, 11V, 2200mAh*3

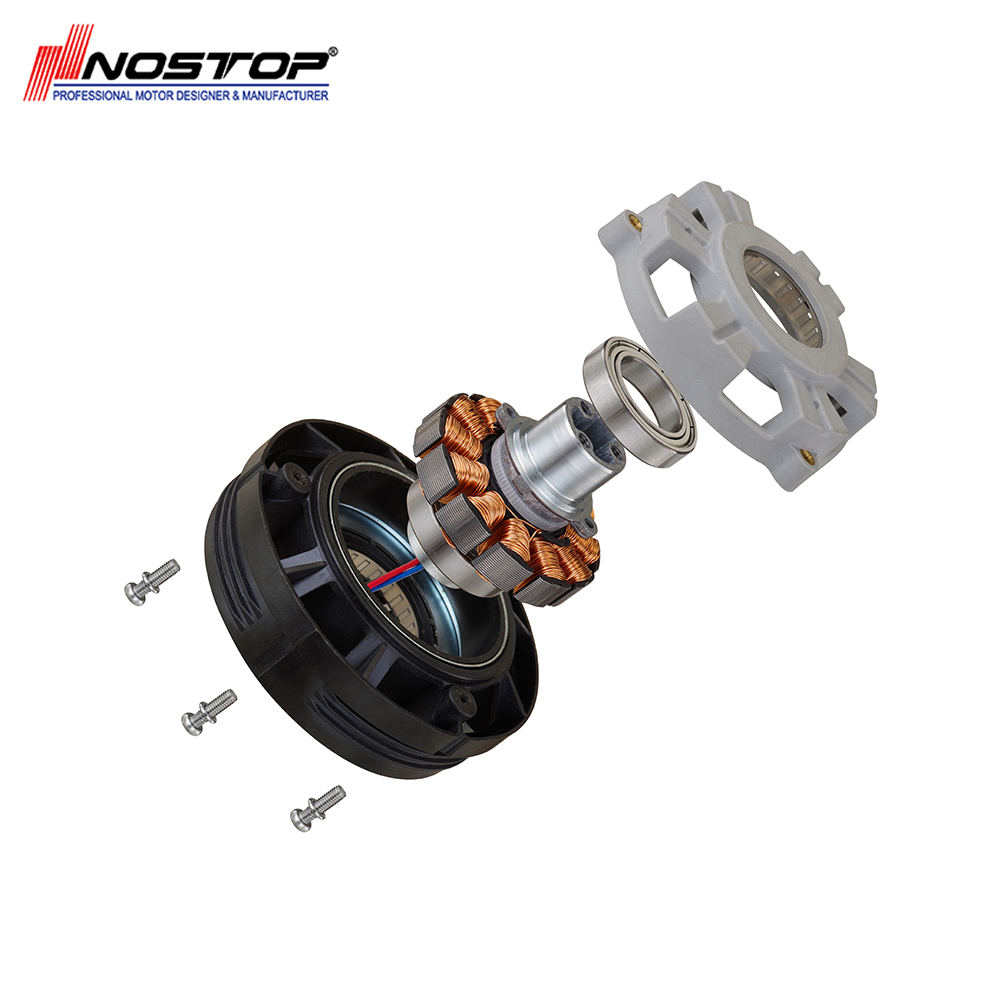

4Electric Motor: Frequency conversion, brushless and shaftless DC motor
5

Fan blades: Centrifugal/Axial flow fusion (9+11) 20 pieces

Main Material: ABS

6

Noise:

Test at 1m far away, the noise should be ≤28dB(A) at the first speed (the lowest speed), and ≤55dB(A) at the 12th speed (the highest speed).

71~12 speed selection, maximum wind speed 6.1m/s.
8The triangular bracket can be combined with four heights (users can choose according to demand), and the bracket can be hidden and stored.
9Functions: 3 modes to choose: natural wind, sleeping wind and adjustable wind speed mode.
10Timing (1-9hours)
11Left-right head-swing: 3 adjustable angles of 60 degrees, 90 degrees and 120 degrees.
12Up-dwon Angle: Manually adjust the pitch up and down by 30 degrees.
13
Remote Controller: Infrared remote control, accessible within a distance of 5 meters.
14The external battery is easy to disassemble and replaceable.
15The device can be switched to states of floor fan and table fan, which is suitable for different needs. And it uses external lithium-ion battery, which is avaliable for indoor and outdoor use.
16Detachable front grille and impeller are easy to clean and wipe
17Net weight: 3.3Kg; Gross weight: 4.5Kg; 2304 pcs in 40-inch high container.
