Model : G1 Type
Typical application : Vacuum cleaners, hand-dryers, stage snow machines, etc

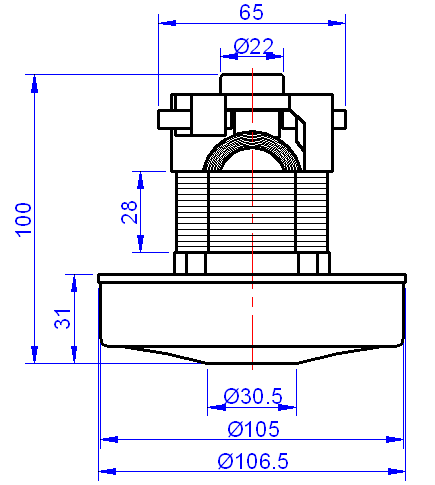

Outline Drawing : All dimensions are in the unit of millimeter (mm).
Basic Performances :
| Items | Unit | Rated Values | ||||
| Power (in) | (W) | 180 | 300 | 350 | 400 | 500 |
| Vacuum | (kPa) | 5 | 8 | 10 | 11 | 12 |
| Air Flow | (m3/min.) | 1.2 | 1.5 | 1.4 | 1.5 | 1.6 |
| Efficiency | （%） | 26 | 28 | 30 | 32 | |
Remarks:
1) The voltage can be 100V ~ 240V or any others as needed; the frequency can be either 50Hz, or 60Hz or 50/60Hz. 2) The thermal insulation system can be any from Class A to Class F.
3) The max. noise is 98dB(A), and the min. lifetime is 500 hours.
4) The speed is more than 30,000rpm or as needed.
