Model : GS-04S Type (2 stages）
Typical application : Vacuum cleaners, hand-dryers, stage snow machines, etc

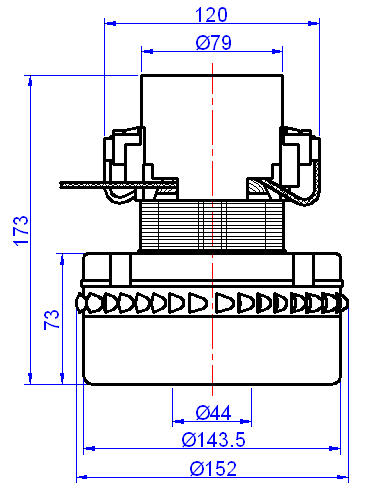

Outline Drawing : All dimensions are in the unit of millimeter (mm).
Basic Performances :
| Items | Unit | Rated Values | |||
| Power (in) | (W) | 800 | 1000 | 1200 | 1400 |
| Vacuum | (kPa) | 14 | 16 | 18 | 20 |
| Air Flow | (m3/min.) | 2.0 | 2.4 | 2.8 | 3.2 |
| Efficiency | （%） | 20 | 22 | ||
Remarks:
1) The voltage can be 100V ~ 240V or any others as needed; the frequency can be either 50Hz, or 60Hz or 50/60Hz. 2) The thermal insulation system can be any from Class A to Class F.
3) The max. noise is 98dB(A), and the min. lifetime is 500 hours.
4) The speed is more than 30,000rpm or as needed.
