Brief Introduction :
1. The rated voltage and the frequency can be any as needed.
2. The output power of the motor can be from 1.0W to 10W (approx.).
3. The shaft diameter (d) can be: Ø 5, Ø 5.5, Ø 6, Ø 6.35mm or as needed, with D-cuts, threads, etc., and the shaft length (L) can be any also.
4. The stator thickness (H) can be any from 12mm to 50mm.
5. The bearing can be either sleeve bearing or ball bearing as needed.
6. The brackets can be made either by steel or by zinc-aluminum alloy.
7. The coil is insulated to stator by bobbin (new design).
8. RoHS compliant is available. Lead out by terminals is also available.
Typical Application :
This motor is mainly designed for water pump of evaporative cooler. It can also be used for other applications such as hand dryer, hood fan, air purifier, massager, humidifier, etc

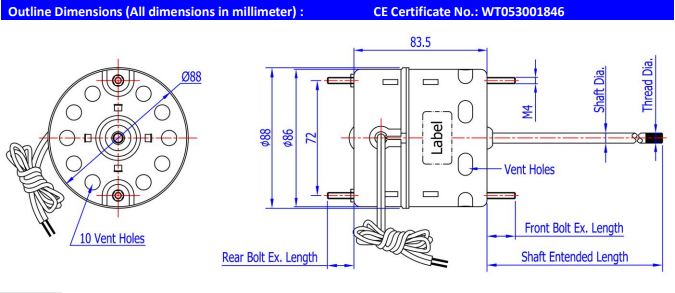

Remarks: Only the dimensions marked in letters are changeable as needed. Other dimensions are fixed.
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
Brief Introduction :
1. The rated voltage and the frequency can be any as needed.
2. The output power of the motor can be from 1.0W to 10W (approx.).
3. The shaft diameter (d) can be: Ø 5, Ø 5.5, Ø 6, Ø 6.35mm or as needed, with D-cuts, threads, etc., and the shaft length (L) can be any also.
4. The stator thickness (H) can be any from 12mm to 50mm.
5. The bearing can be either sleeve bearing or ball bearing as needed.
6. The brackets can be made either by steel or by zinc-aluminum alloy.
7. The coil is insulated to stator by bobbin (new design).
8. RoHS compliant is available. Lead out by terminals is also available.
Typical Application :
This motor is mainly designed for water pump of evaporative cooler. It can also be used for other applications such as hand dryer, hood fan, air purifier, massager, humidifier, etc
Remarks: Only the dimensions marked in letters are changeable as needed. Other dimensions are fixed.
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
