Brief Introduction :
1. The rated voltage can be from 100V to 240VAC. The frequency can be either 50Hz, or 60Hz, or 50/60Hz.
2. The motor can be made of 2 poles, 4 poles, 6 poles, etc as needed. Single speed, 2 speeds, 3 speeds or 4 speeds are all available.

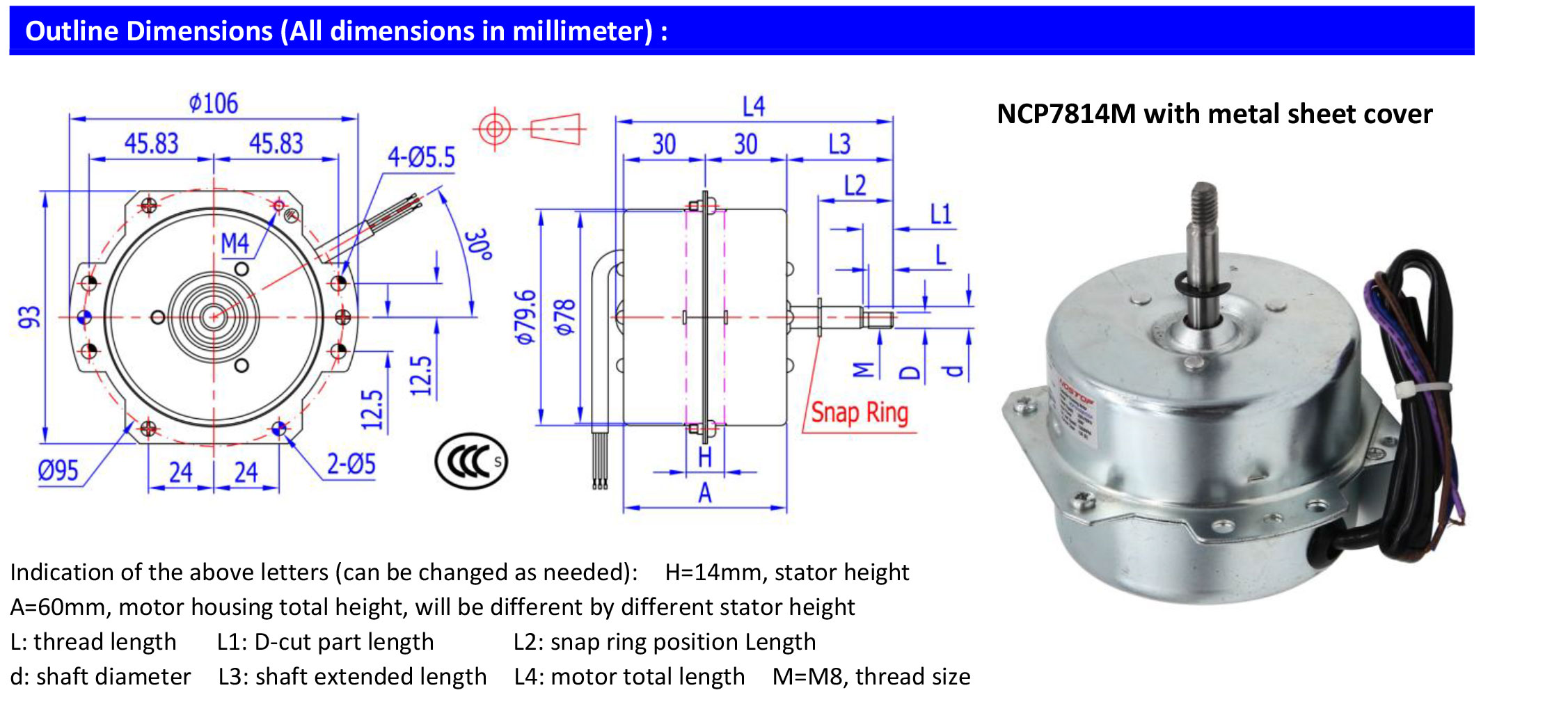

3. The standard shaft diameter (d) is Ø8mm. It can be others, and with D-cuts, threads, etc.. Its length (L2) can be any as needed.
4. The stator height (H) can be any from 20mm to 50mm.
5. The bearing brackets (housing) can be made either by steel sheet or by zinc-aluminum alloy, with or without a mounting flange.
6. The rotor bearings can be of either sleeve bearings (bush) or ball bearings as needed to reach different lifetime.
7. The motor rotation can be either in CW or CCW direction as needed.
8. RoHS compliant is available.
9. The motor is CCC certified. Certificate No.: 2017010401996939.
Typical Application :
These motors are mainly used for Ventilators, Exhausters, Air-purifiers, Table Fans, Desk Fans, Floor Fans, Wall Fans, Box Fans, etc.
Technical Performances (tested under room temperature) :
Stack Height | Number of Poles | Rated Power | Rated Supply | @ No Load | On Load | @ Stall | |||||||
Volt. | Freq. | Current | Input P. | Speed | Current | Input P. | Speed | Current | Input P. | ||||
Model | (mm) | ---- | (Watts) | (VAC) | (Hz) | (Amp) | (Watts) | (rmp) | (Amp) | (Watts) | (rmp) | (Amp) | (Watts) |
NCP7812S-001 | 12 | 4P | 6 | 220 | 50 | ||||||||
NCP7814S-002 | 14 | 4P | 8 | 220 | 50 | 0.13 | 29 | 1420 | 0.16 | 34 | 1300 | ||
NCP7816S-001 | 16 | 4P | 10 | 220 | 50 | ||||||||
NCP7818S-002 | 18 | 4P | 12 | 220 | 50 | ||||||||
NCP7820S-001 | 20 | 4P | 14 | 220 | 50 | ||||||||
NCP7822S-002 | 22 | 4P | 16 | 220 | 50 |
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
Brief Introduction :
1. The rated voltage can be from 100V to 240VAC. The frequency can be either 50Hz, or 60Hz, or 50/60Hz.
2. The motor can be made of 2 poles, 4 poles, 6 poles, etc as needed. Single speed, 2 speeds, 3 speeds or 4 speeds are all available.
3. The standard shaft diameter (d) is Ø8mm. It can be others, and with D-cuts, threads, etc.. Its length (L2) can be any as needed.
4. The stator height (H) can be any from 20mm to 50mm.
5. The bearing brackets (housing) can be made either by steel sheet or by zinc-aluminum alloy, with or without a mounting flange.
6. The rotor bearings can be of either sleeve bearings (bush) or ball bearings as needed to reach different lifetime.
7. The motor rotation can be either in CW or CCW direction as needed.
8. RoHS compliant is available.
9. The motor is CCC certified. Certificate No.: 2017010401996939.
Typical Application :
These motors are mainly used for Ventilators, Exhausters, Air-purifiers, Table Fans, Desk Fans, Floor Fans, Wall Fans, Box Fans, etc.
Technical Performances (tested under room temperature) :
Stack Height | Number of Poles | Rated Power | Rated Supply | @ No Load | On Load | @ Stall | |||||||
Volt. | Freq. | Current | Input P. | Speed | Current | Input P. | Speed | Current | Input P. | ||||
Model | (mm) | ---- | (Watts) | (VAC) | (Hz) | (Amp) | (Watts) | (rmp) | (Amp) | (Watts) | (rmp) | (Amp) | (Watts) |
NCP7812S-001 | 12 | 4P | 6 | 220 | 50 | ||||||||
NCP7814S-002 | 14 | 4P | 8 | 220 | 50 | 0.13 | 29 | 1420 | 0.16 | 34 | 1300 | ||
NCP7816S-001 | 16 | 4P | 10 | 220 | 50 | ||||||||
NCP7818S-002 | 18 | 4P | 12 | 220 | 50 | ||||||||
NCP7820S-001 | 20 | 4P | 14 | 220 | 50 | ||||||||
NCP7822S-002 | 22 | 4P | 16 | 220 | 50 |
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
