Brief Introduction :
1. The voltage can be 100-240V (50, 60, 50/60Hz).
2. The motor speed can be single, 2, 3, 4, 5, 6 speeds as needed.
3. The poles of this motor can be 2, 4, 6 or 8 poles as needed.
4. The shaft diameter (D) can be: Ø6 or Ø8mm, with D-cuts, threads, etc., and the shaft length (L) can be any as needed.
5. The stator stack thickness (H) can be any from 20mm to 40mm.
6. The bearing brackets can be made either by aluminum alloy diecast or galvanized steel sheet.
7. The rotor bearing can be either sleeve bearings or ball bearings as needed.
8. The rotation direction can be in CW or in CCW as needed.
RoHS compliant is available.
Typical Application :
Kitchen Range Hood Fan, Blower, Ventilator, Clothes Dryer, etc

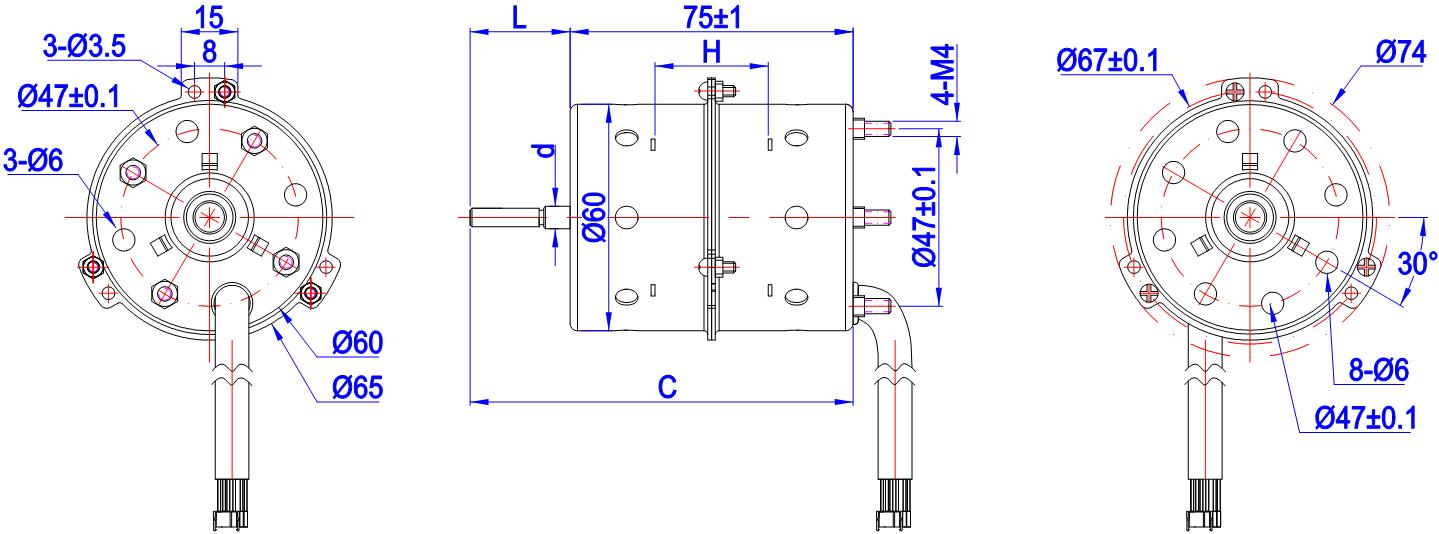

Outline Dimensions (All dimensions in millimeter) :
Indication of Letters: d: Shaft Diameter H: Stator Stack Height L: Shaft Extended Length C: Shaft Total Length
Remarks: 1) Only the dimensions marked in letters are changeable as needed. Other dimensions are fixed.
2) The height and the shape of the above brackets are not changeable unless we open new moulds.
Technical Performances (tested under room temperature):
Specs
Models | Stack Height | Power Supply | Speed Level | No Load | At Rated Load | |||||||
Volt. | Freq. | Current | Power | Current | Speed | Power | Airflow | EEI | FDE | |||
(mm) | (VAC) | (Hz) | (Amp) | (Watts) | (Amp) | (rpm) | (Watts) | (m³/h) | (%) | (%) | ||
NCP5820 | 20 | 230 | 50 | High | 0.23 | 50 | 0.26 | 2000 | 60 | 220 | ＜100 (D) | ＞7 (F) |
Medium | 0.15 | 28 | 0.15 | 1600 | 34 | 175 | ||||||
Low | 0.12 | 24 | 0.12 | 1300 | 26 | 145 | ||||||
NCP5825 | 25 | 230 | 50 | High | 0.25 | 52 | 0.27 | 2200 | 62 | 260 | ＜85 (C) | ＞8 (E) |
Medium | 0.16 | 30 | 0.16 | 1700 | 36 | 200 | ||||||
Low | 0.12 | 26 | 0.13 | 1400 | 28 | 165 | ||||||
NCP5830 | 30 | 230 | 50 | High | 0.28 | 57 | 0.30 | 2500 | 67 | 300 | ＜85 (C) | ＞8 (E) |
Medium | 0.20 | 36 | 0.21 | 2000 | 47 | 240 | ||||||
Low | 0.16 | 30 | 0.18 | 1600 | 41 | 190 | ||||||
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
