AC Single Phase Capacitor Operated Motors NCP80 Series

Brief Introduction :

1. The rated voltage can be from 100V to 240VAC. The frequency can be either 50Hz, 60Hz, or 50/60Hz.

2. The motor can be made of 2 poles, 4 poles, 6 poles, etc as needed. Single speed, 2 speeds, 3 speeds or 4 speeds are all available.

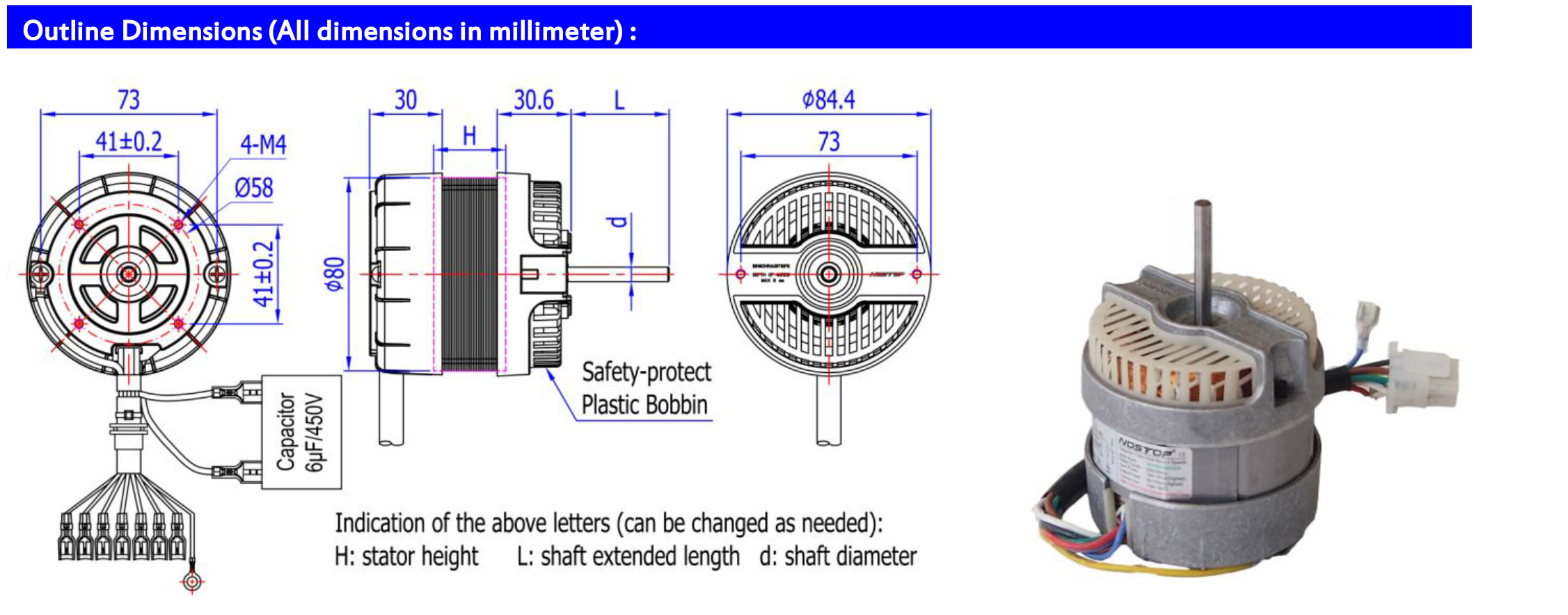

3. The standard shaft diameter (d) is Ø6 or Ø 8mm. It can be others, with D-cuts, threads, etc.. Its length (L2) can be any as needed.

4. The stator height (H) can be any from 20mm to 50mm.

5. The bearing brackets (housing) can be made either by steel sheet or by zinc-aluminum alloy, with or without a mounting flange.

6. The rotor bearings can be of either sleeve bearings (bush) or ball bearings as needed to reach different lifetime.

7. The motor rotation can be either in CW or CCW direction as needed.

8. RoHS compliant is available.

9. The motor is CCC certified. Certificate No.: 2017010401996939.

Typical Application：

Kitchen Range Hood Fan, Blower, Air Purifier, Ventilator, Clothes Dryer, Air Curtain, etc.

Technical Performances (tested under room temperature):

Specs	Stack	Power Supply		Number	Speed	@ No Load		@ Rated Load
	Height	Volt.	Freq.	of Poles	Level	Current	Power	Current	Speed	Power(in)	Airflow
Model	(mm)	(VAC)	(Hz)			(Amp)	(Watts)	(Amp)	(rmp)	(Watts)	(m³/h)
NCP8030	30	220	50	2	F5	0.632	136	0.871	1500	190	431
					F4	0.404	81	0.796	1200	164	385
					F3	0.337	58	0.698	1000	138	332
					F2	0.280	40	0.631	800	120	270
					F1	0.268	37	0.548	600	100	213
NCP8035	35	230	50	2	F3	0.708	119	0.903	2,094	209	756
					F2	0.289	65	0.739	1,399	167	494
					F1	0.203	46	0.620	946	138	327
NCP8040	40	230	50	2	F3	0.356	62	0910	1720	212	635
					F2	0.198	44	0.785	1281	180	463
					F1	0.126	26	0.578	731	133	274
NCP8050	50	230	50	2	F4	0.670	116	1.341	2074	307	715
					F3	0.350	77	1.072	1650	244	492
					F2	0.260	60	0.835	1320	188	248
					F1	0.120	27	0.330	689	72	150

Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
