AC Single Phase Capacitor Operated Motors NCP110 Series

Share to:

AC Single Phase Capacitor Operated Motors NCP110 Series

Availability:

Quantity:



Inquire Add to Basket

Product Description

Brief Introduction :

1. The rated voltage can be from 100V to 240VAC. The frequency can be either 50Hz, or 60Hz, or 50/60Hz.

2. The motor can be made of 2 poles, 4 poles, 6 poles, etc as needed. Single speed, 2 speeds, 3 speeds or 4 speeds are all available.

3. The standard shaft diameter (d) is Ø8mm. It can be others, and with D-cuts, threads, etc.. Its length (L2) can be any as needed.

4. The stator height (H) can be any from 20mm to 50mm.

5. The bearing brackets (housing) can be made either by steel sheet or by zinc-aluminum alloy, with or without a mounting flange.

6. The rotor bearings can be of either sleeve bearings (bush) or ball bearings as needed to reach different lifetime.

7. The motor rotation can be either in CW or CCW direction as needed.

8. RoHS compliant is available.

9. The motor is CCC certified. Certificate No.: 2017010401996939.

Typical Application :

Oil Extractor, Industrial Fan, Blower, Floor Fan, Water Heater, Bath Heater, Washing Machine, Bread Maker, etc.

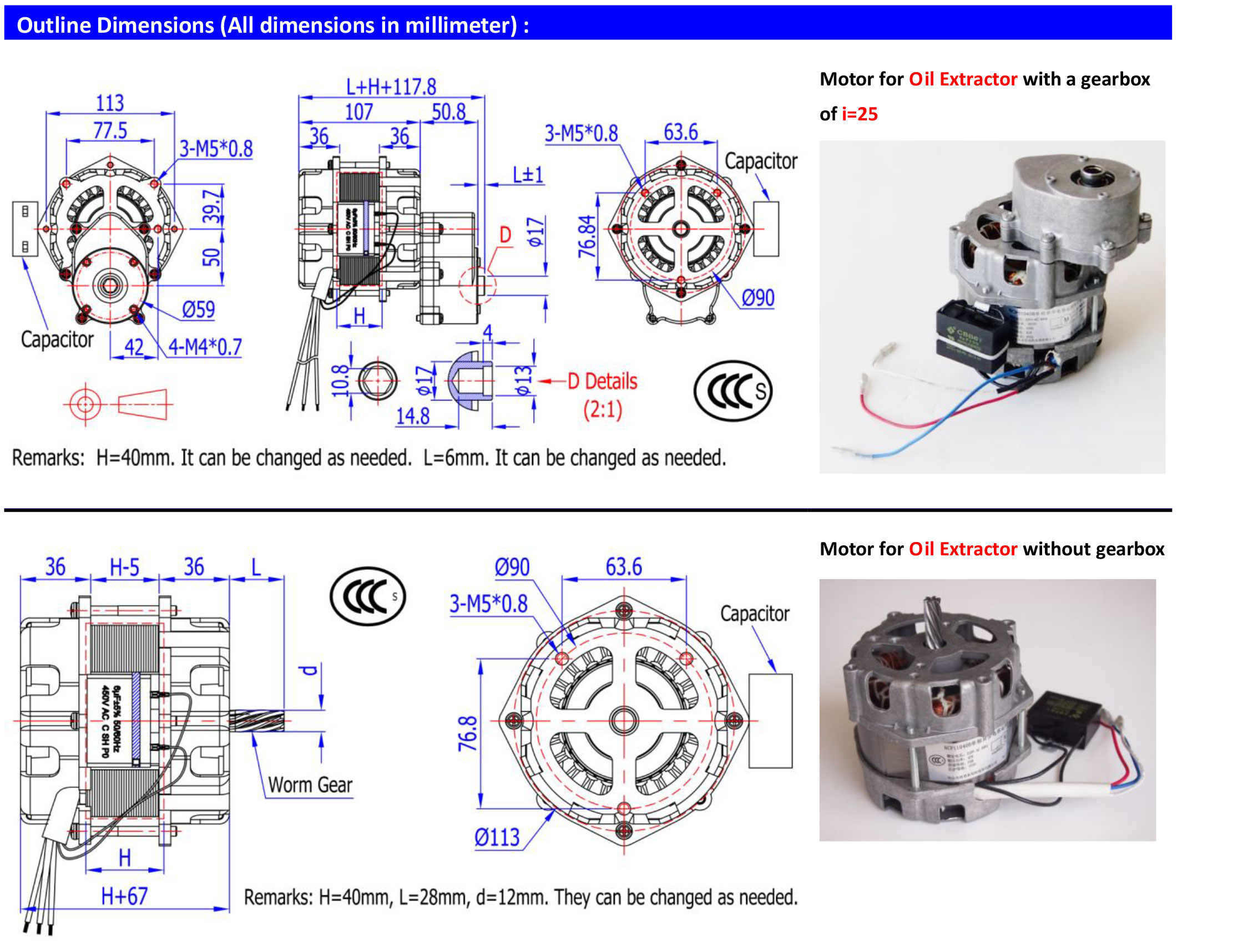

21-110-1_04

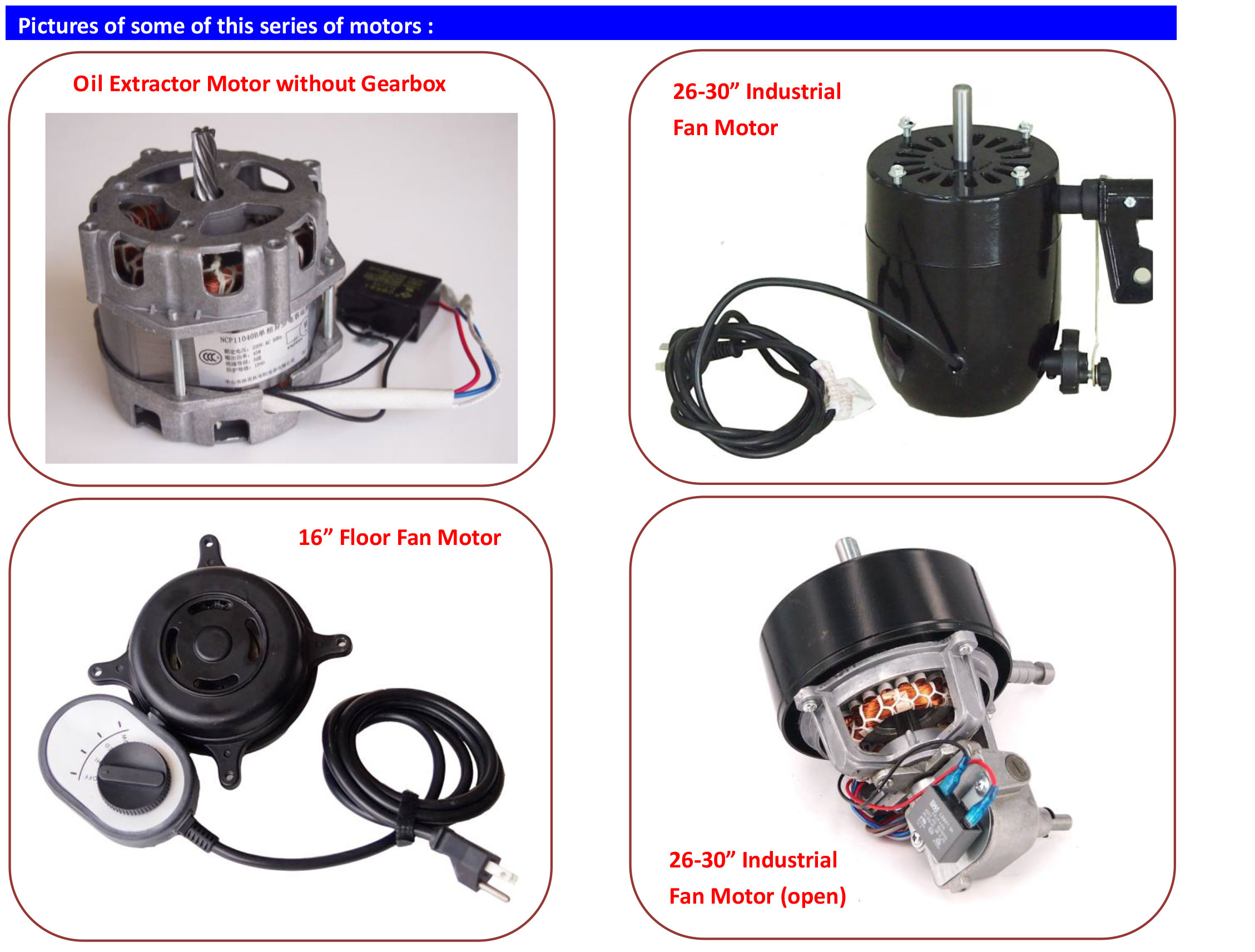

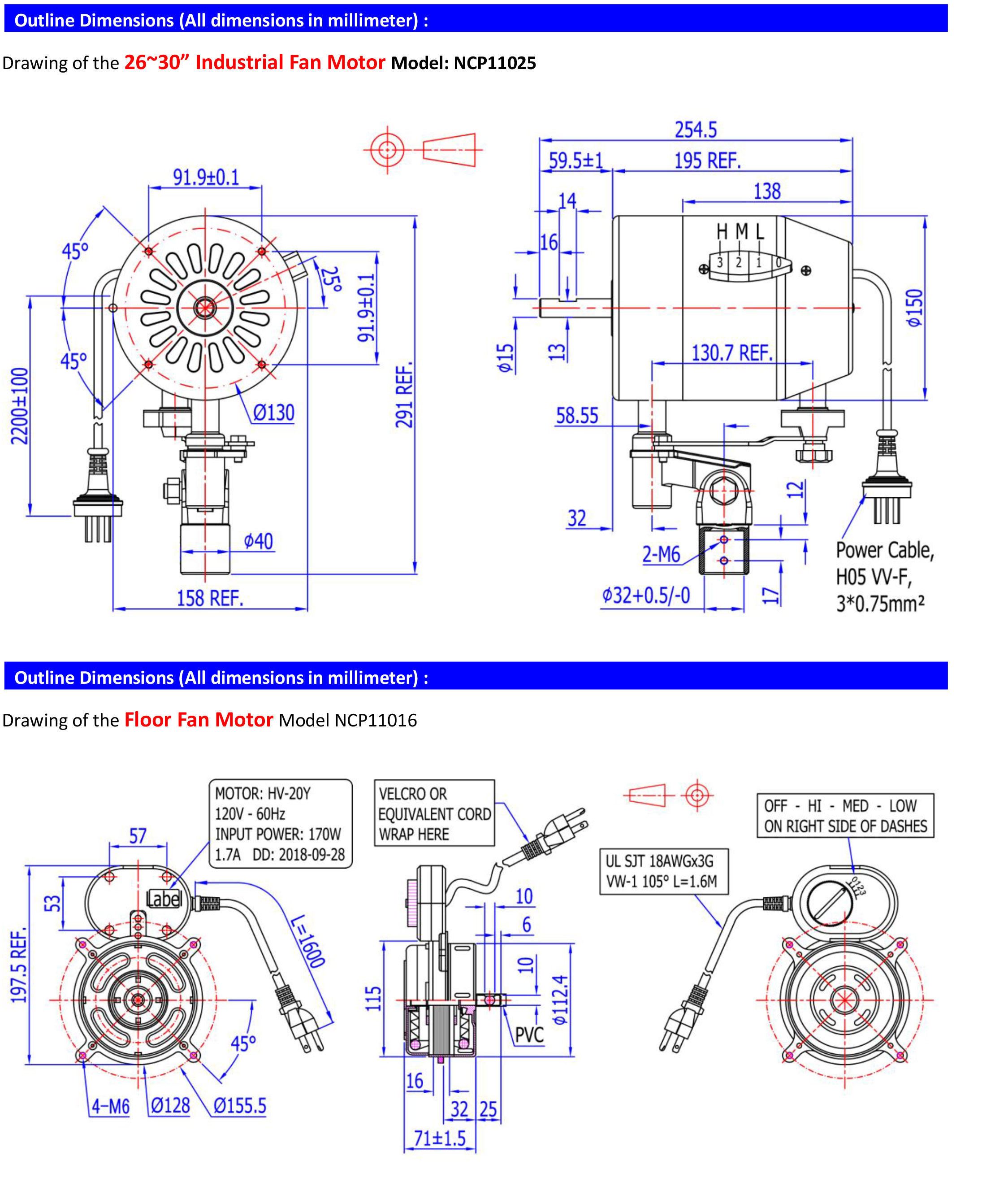

21-110-2_04 21-110-3_04

Technical Performances (tested under room temperature) :

Specs	Stack	Power Supply		Number of Poles	Speed Level	@ No Load		@ Rated Load
	Height	Volt.	Freq.			Current	Power	Speed	Current	Power	Torque
Model	(mm)	(VAC)	(Hz)			(Amp)	(Watts)	(Amp)	(rmp)	(Watts)	(mNm)
NCP11010	10	120	60	4	High	0.56	62	0.61	1560	72	200
					Medium	0.46	55	0.55	1400	65	220
					Low	0.38	46	0.51	1200	60	239
NCP11016	16	120	60	4	High	0.66	76	1.10	1400	125	426
					Medium	0.54	63	0.92	1200	115	458
					Low	0.47	53	0.85	950	105	528
NCP11025	25	220	50	4	High	0.26	48	0.51	1300	110	404
					Medium	0.19	41	0.49	1150	108	448
					Low	0.16	36	0.48	1000	106	506
NCP11040	40	220	50	4	High	0.57	58	0.90	1250	115	439
					Medium	0.50	46	0.82	1150	107	445
					Low	0.46	40	0.73	1000	100	476

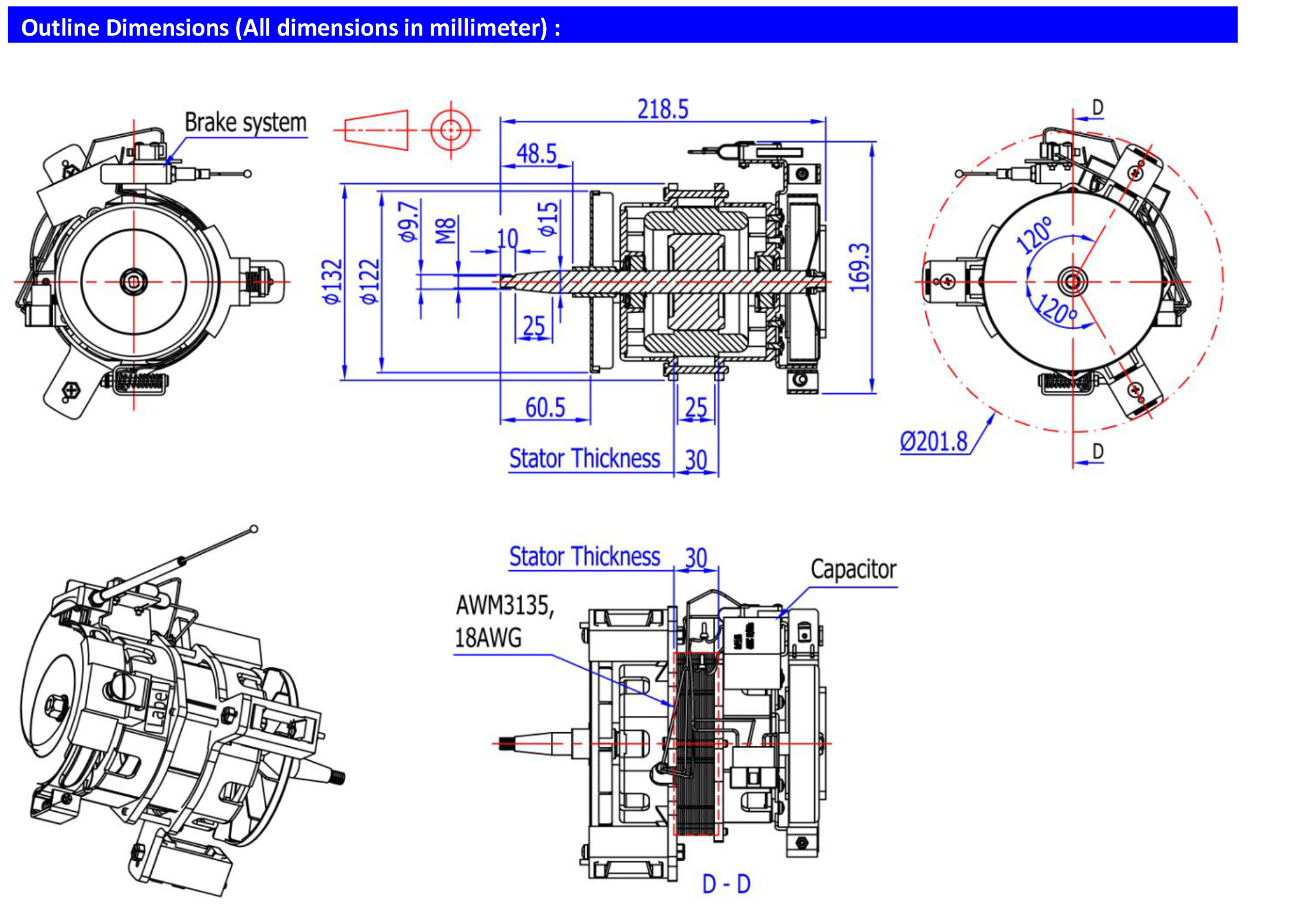

The following motor is a new model we developed for our customer, used for Dryer of Washing Machine . The motor is added with a patent protected Brake System. The specifications can be adjusted according to the customer’s needs.

21-110-4_04

Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.

Technical Performances (tested under room temperature) :

Specs

Stack

Height

Power Supply

Number

of Poles

@ No Load

On Load

@ Stall

Volt.

Freq.
