Brief Introduction :
This is a geared motor based on a gearbox mounted to a shaded pole motor. The motor can be
changed to other types with the same mounting holes distance, and the gear reduction ratio can
also be changed as need to reach a torque upto 34 Nm or 300 lb.in. All the gears are made from
molded powder metal or carbon steel with high tolerance and strong ability of break-resistance.
The gearbox is made from zinc-aluminum alloy. Output shaft is especially hardened.
We also have some other size gearboxes available. OEM and ODM are both welcome.
Typical application :
These motors are widely used for Vending Machine, Commercial Water Softeners, Valve Actuators, Ice-maker, Restaurant and Food Equipment, Packaging Equipment, Gaming Coffee brewing Systems, Banking System, Agricultural equipment, etc.

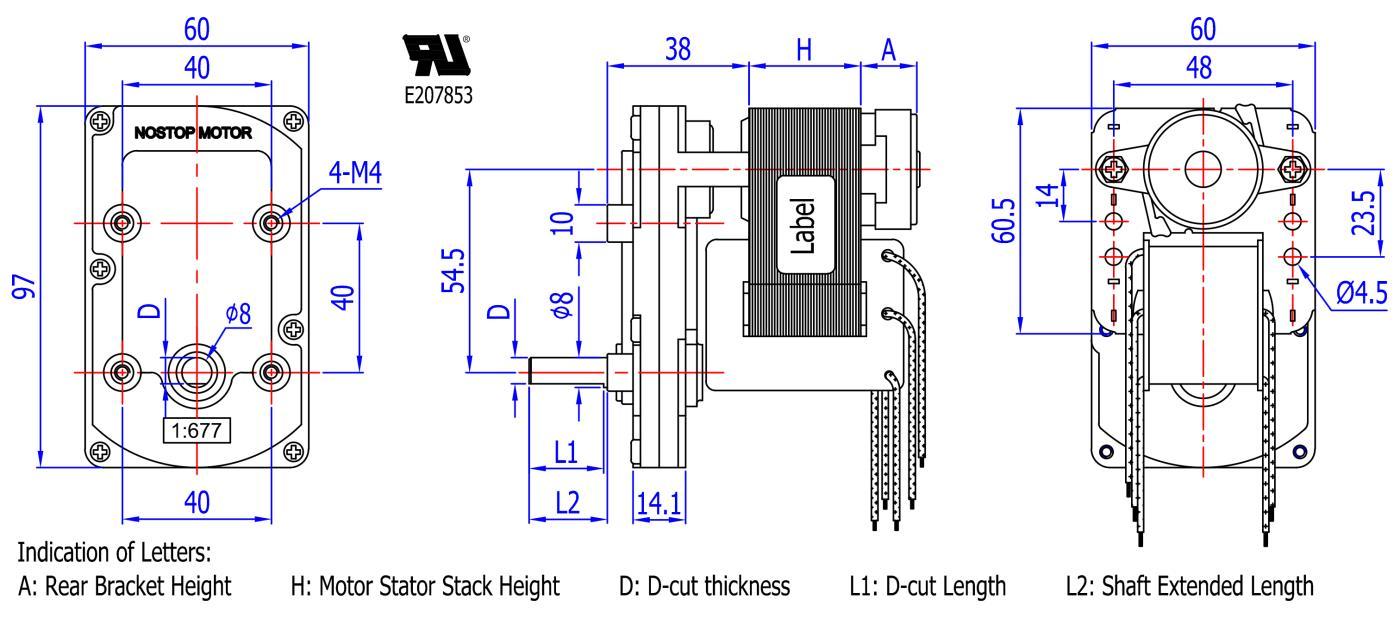

Outline Dimensions : UL File No.: E207853
Remarks: only the dimensions marked in letters are changeable as needed. Other dimensions are fixed.
Performances (tested under room temperature) : UL File No.: E207853
Specifications | Rated Supply | No Load | At Max. Efficiency | Gearbox Reduction Ratio | ||||||
Motor Models | Volts | Freq’y | Current | Speed | Power | Current | Speed | Power | Torque | |
(VAC) | (Hz) | (Amp) | (rpm) | (Watts) | (Amp) | (rpm) | (Watts) | (mNm) | ||
NSP6030V120B | 120 | 60 | 0.32 | 3350 | 20 | 0.34 | 2910 | 23.5 | 16 | - |
NSP6030V120B-G355 | 120 | 60 | 0.33 | 9.50 | 21 | 0.35 | 8.4 | 24 | 545 | 1:355 |
NSP6030V220A | 220 | 60 | 0.16 | 3350 | 19 | 0.17 | 2870 | 20.2 | 14 | - |
NSP6030V220A-G355 | 220 | 60 | 0.16 | 9.5 | 19 | 0.18 | 8.4 | 20.3 | 469 | 1:355 |
NSP6030V110B | 110 | 60 | 0.33 | 3400 | 22 | 0.35 | 2910 | 24 | 16 | - |
NSP6030V110B-G677 | 110 | 60 | 0.34 | 4.97 | 23 | 0.36 | 4.35 | 25 | 1121 | 1:677 |
NSP6030V220A | 220 | 50 | 0.19 | 2800 | 23 | 0.25 | 2260 | 27 | 23 | - |
NSP6030V220A-G677 | 220 | 50 | 0.20 | 4.17 | 24 | 0.26 | 3.35 | 28 | 1630 | 1:677 |
Remarks:This catalog listed just some typical models of some typical reduction ratios. The performances can be adjusted according to the customers’ needs. OEM & ODM are both welcome.
