Brake Geared Motor 6RK 120W

Availability:

Quantity:



Inquire Add to Basket

Product Description

30-6RK-120W_page-0001_02

List of Motor Caracteristics

Modle of Motor & Gearbox		Output Power	Rated Voltage	Rated Freq'y	No.of Poles	Duty Cycle	Rated Load				Starting Torque		Capacitor/Voltage
Motor Only	Motor with gear shaft	W	V	Hz	P		Speed	Current	Torque		N.m	kgf.cm	ΠF/VAC
Motor Only	Motor with gear shaft	W	V	Hz	P		r/min	A	N.m	kgf.cm	N.m	kgf.cm	ΠF/VAC
6RK120A-AM	6RK120GU-AM	120	1Ph 110	50	4	30Min	1350	1.90	0.85	8.50	0.59	5.85	25.0/250
6RK120A-CM	6RK120GU-CM	120	1Ph 220	50	4	30Min	1350	0.92	0.85	8.50	0.75	7.50	8.0/450
6RK120A-SM	6RK120GU-SM	120	3Ph 220	50	4	30Min	1350	0.89	0.85	8.50	3.50	35.0	/
6RK120A-SM	6RK120GU-SM	120	3Ph 380	50	4	30Min	1350	0.51	0.85	8.50	3.50	35.0	/

If the voltage is different,the capacitor's capacity will also be different.A suitable capacitor is required to match the applied voltage.wrong of the motor or components the main reason to cause problem.So before order,Please specify the correct voltage &select the suitable model (s)

Overall Dimension of Gearbox

30-6RK-120W_page-0001_04_1321_460

	Gear Ratio	Length L(mm)	G.W.(Kg)
Gearbox	1:3~1:9	72	1.87
	1:10~1:18		2.10
	1:20~1:200		2.75
Motor			5.00

Allowable Torque on Gearbox

Model of Geabox:2GN K

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50Hz	Output Shaft Speed	r/min	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Permitted Torque	N.m	2.06	2.48	3.44	4.13	5.16	6.19	6.19	7.75	9.30	11.2	11.2	14.0	16.8	20.0	22.4	28.0	33.6
	Permitted Torque	kgf.cm	21.0	25.3	35.1	42.1	52.6	63.2	63.2	79.1	94.9	114	114	143	171	206	228	286	343
39.2	Oputput Shaft Speed	r/min	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	1.74	2.09	2.90	3.48	4.35	5.22	5.22	6.54	7.85	9.42	11.8	14.2	17.0	18.9	23.6	28.4	35.5
	Allowable Torque	kgf.cm	17.8	21.3	29.6	35.5	44.4	53.3	53.3	69.7	80.0	96.0	121	146	174	193	241	289	362

Frequency	Reduction Ratio		75	90	100	120	150	180	200
50Hz	Output Shaft Speed	r/min	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	39.2	39.2	39.2	39.2	39.2	39.2	39.2
	Allowable Torque	kgf.cm	400	400	400	400	400	400	400
60Hz	Oputput Shaft Speed	r/min	24	20	18	15	12	10	9
	Allowable Torque	N.m	39.2	39.2	39.2	39.2	39.2	39.2	39.2
	Allowable Torque	kgf.cm	400	400	400	400	400	400	400

Capacitor / Wiring Diagram

30-6RK-120W_page-0001_06_372_227 30-6RK-120W_page-0001_06_950_391

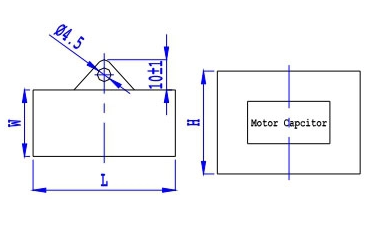

Capacity(∏F） Tolerance: ±0.5%	Voltage	L±1	W±1	H±1	Type
Capacity(∏F） Tolerance: ±0.5%	V	mm	mm	mm	Type
8.0	450	47	26	38	With Lead wire
25.0	250	68	32	56	With Lead wire
