Brake Speed Adjustable Geared Motor 5RK 90W

Availability:
Quantity:

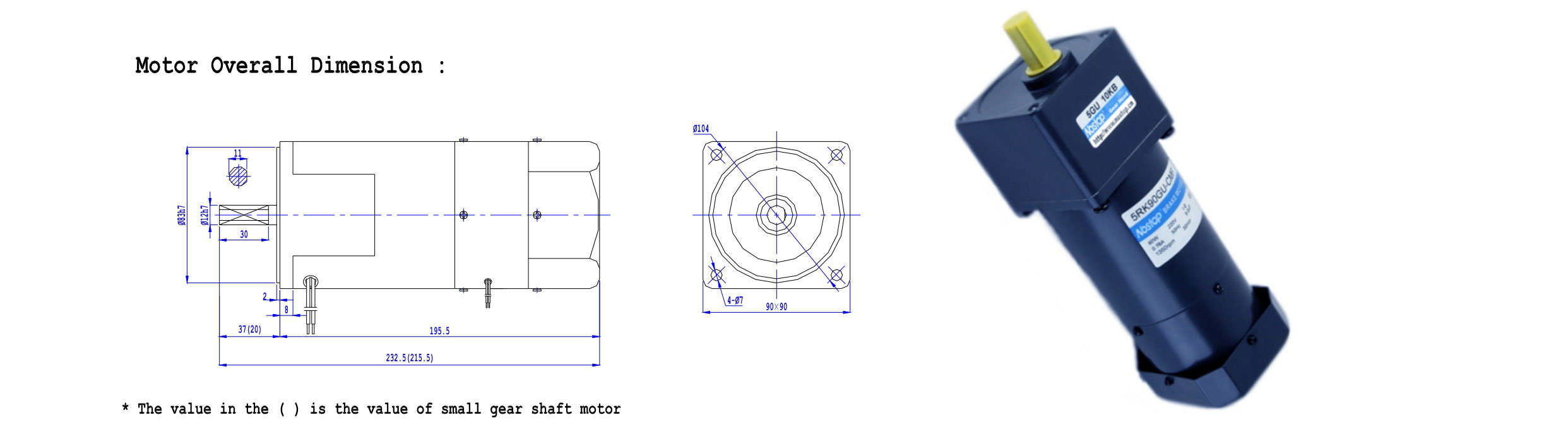

46-5RK-90W_page-0001_02

List of Motor Caracteristics


Model of Motor & Gearbox

Outrput power

Rated Voltage
Rated Freq'y
No.of poles
No.of Duty cycle Speed
Allowable Torque

Starting

Torque

Capacitor / Voltage
1200r/min 90r/min
Motor Only Motor with gear Shaft (W) (V) (Hz) (P) (r/min) (N.m) (kgf.cm) (N.m) (kgf.cm) (N.m) (kgf.cm) (ΠF/VAC)
5RK90A-AMF 5RK90RGU-AMF 90 1Ph 110 50 4 30Min 90~1350 0.71 7.10 0.23 2.30 0.64 6.40 25.0/250
5RK90A-CMF 5RK90RGU-CMF
90 1Ph 220 50 4 30Min 90~1350 0.71 7.10 0.23 2.30 0.45 4.50 6.0/450

If the voltage is different,the capacitor's capacity will also be different.A suitable capacitor is required to match the applied voltage.wrong of the motor or components the main reason to cause problem.So before order,Please specify the correct voltage &select the suitable model (s)

Overall Dimension of Gearbox

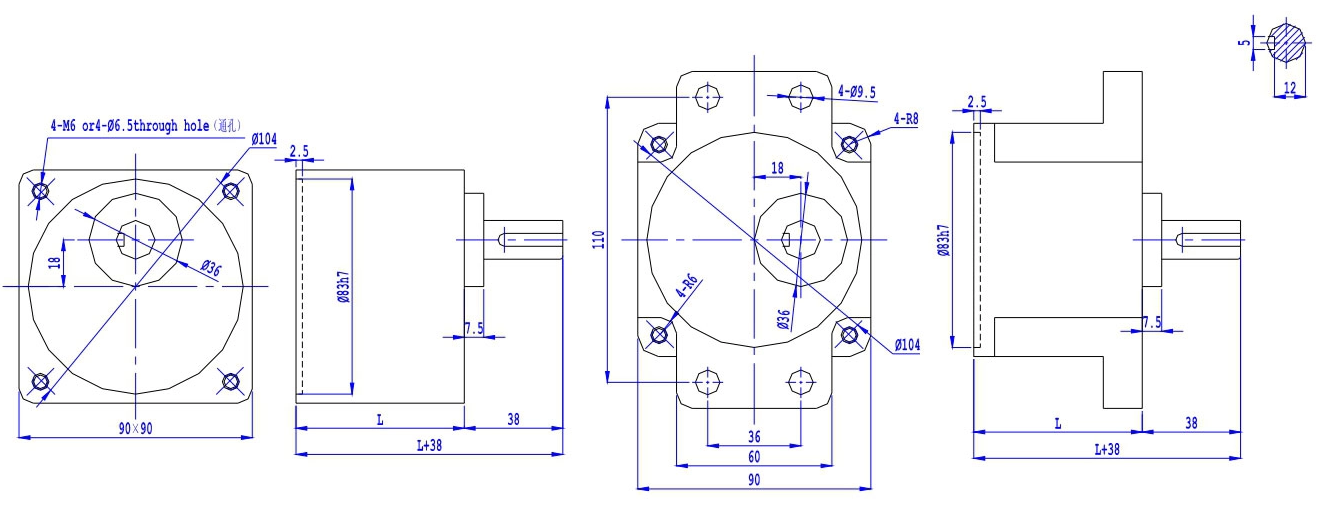

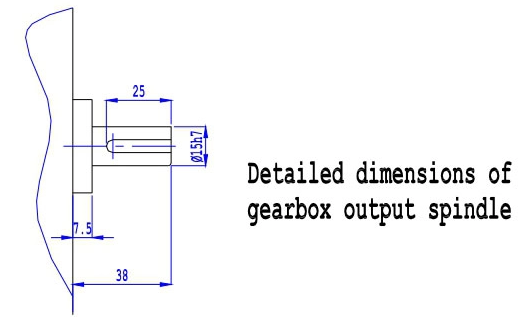

46-5RK-90W_page-0001_06_1336_52346-5RK-90W_page-0001_06_528_323


Gear Ratio Length L(mm) G.W.(Kg)
Gearbox 1:3~1:9
65 1.21
1:10~1:18 1.30
1:20~1:75 1.40
1:90~1:200 1.45
Motor
3.65

Allowable Torque on Gearbox

Model of Geabox:2GN K

Frequency Reduction Ratio
3 3.6 5
6 7.5 9 10 12.5 15 18
20 25 30 36 40 50
60
50Hz Output Shaft Speed RPM 500 417
300 250 200 166 150 120 100 83 75 60 50 41 37 30 25
Permitted Torque N.m 1.55 1.86 2.58 3.10 3.87 4.64 4.65 5.81 6.98 8.37 8.40 10.5 12.6 15.1 16.8 19.6 19.6
kgf.cm 15.8 19.0 29.2 31.6 39.6 47.2 47.4 59.3 71.2 85.4 85.7 107 129 154 171 200

200

4.83
Oputput Shaft Speed RPM 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30
Allowable Torque N.m 1.35 1.62 2.25 2.70 3.37 4.04 4.05 5.06 6.07 7.29 7.32 9.15 11.0 13.2 14.6 18.3

19.

6

kgf.cm 13.8 16.5 23.0 27.6 34.4 41.2 41.3 51.6 61.9 74.4 74.7 93.4 112 135 149 187 200
Frequency Reduction Ratio
75 90 100 120 150 180 200
50Hz Output Shaft Speed r/min 20
16 15 12 10 8 7.5
Allowable Torque N.m 19.6 19.6 19.6 19.6 19.6 19.6 19.6
kgf.cm 200 200 200 200 200 200 200
60Hz
Oputput Shaft Speed r/min 24 20 18 15 12 10 9
Allowable Torque N.m 19.6 19.6 19.6 19.6 19.6 19.6 19.6
kgf.cm 200 200 200 200 200 200 200

Capacitor  / Wiring Diagram

46-5RK-90W_page-0001_10_397_182

Capacity(∏F)

Tolerance: ±0.5%

Voltage L±1 W±1 H±1 Type
V mm mm mm
6.0 450 47 26 38

With

Lead wire

25.0 250 68 32 56



Previous:
Next:
