List of Motor Caracteristics
| Modle of Motor & Gearbox | Output Power | Rated Voltage | Rated Freq'y | No.of Poles | Duty Cycle | Rated Load | Starting Torque | Capacitor/Voltage | |||||
| Motor Only | Motor with gear shaft | W | V | Hz | P | Speed | Current | Torque | N.m | kgf.cm | ΠF/VAC | ||
| r/min | A | N.m | kgf.cm | ||||||||||
| 5IK60A-AF | 5IK60GU-AF | 60 | 1ph 110 | 50 | 4 | Cont | 1350 | 0.98 | 0.44 | 4.40 | 0.38 | 3.75 | 15.0/250 |
| 5IK60A-CF | 5IK50GU-CF | 60 | 1ph 220 | 50 | 4 | Cont | 1350 | 0.52 | 0.44 | 4.40 | 0.40 | 4.00 | 4.0/450 |
| 5IK60A-SF | 5IK60GU-SF | 60 | 3Ph 220 | 50 | 4 | Cont | 1350 | 0.49 | 0.46 | 4.55 | 1.70 | 17.0 | / |
| 5IK60A-S1F | 5IK60GU-S1F | 60 | 3Ph 380 | 50 | 4 | Cont | 1350 | 0.28 | 0.46 | 4.55 | 1.70 | 17.0 | / |
If the voltage is different,the capacitor's capacity will also be different.A suitable capacior is required t match the applied voltage. Wrong of the motor or components is the main reason to cause problem.So before order,lease speify the correct voltag & select the suitable model (s)

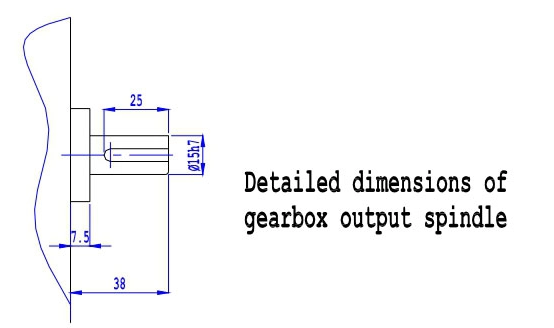

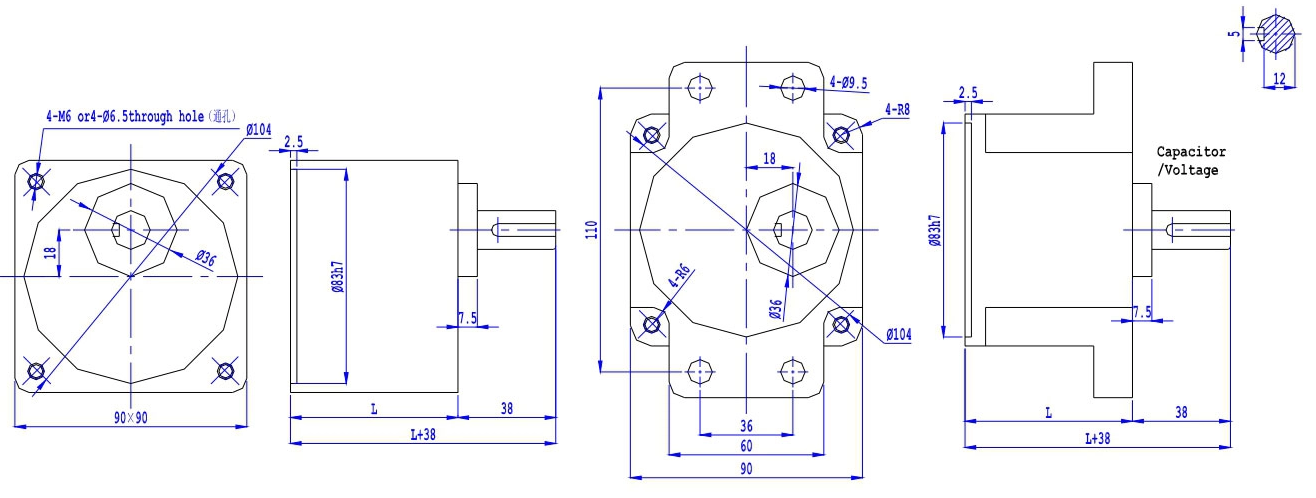

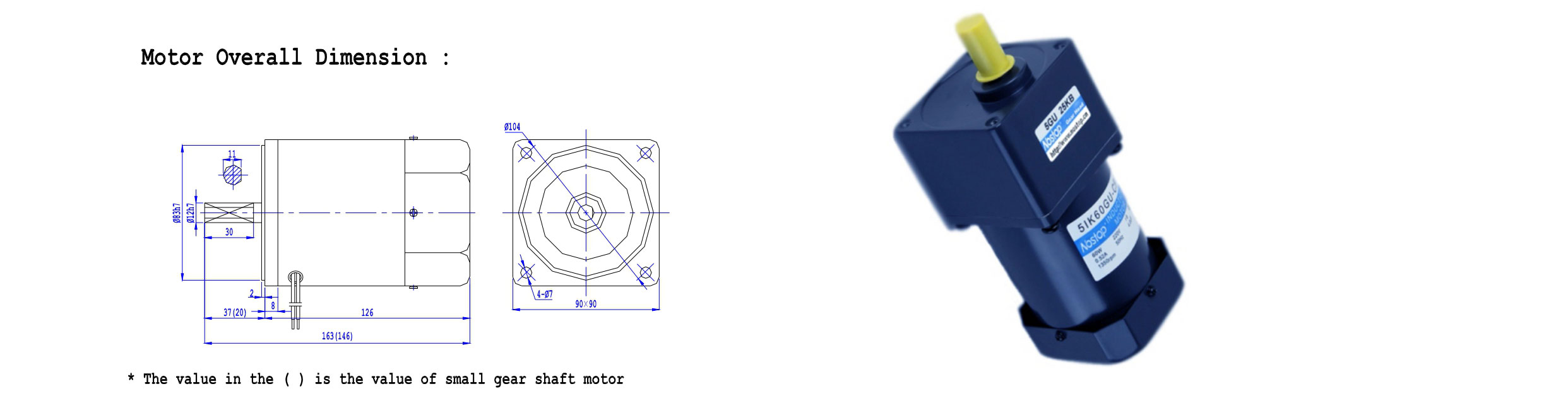

Overall Dimension of Gearbox
| Gear Ratio | Length L(mm) | G.W.(Kg) | |
| Gearbox | 1:3~1：9 | 65 | 1.21 |
| 1：10~1：18 | 1.30 | ||
| 1：20~1：75 | 1.40 | ||
| 1：90~1：200 | 1.45 | ||
| Motor | 2.40 | ||
Allowable Torque on Gearbox
Model of Geabox:2GN K
| Frequency | Reduction Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | |
| 50Hz | Output Shaft Speed | r/min | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 |
| Permitted Torque | N.m | 1.03 | 1.24 | 1.72 | 2.6 | 2.58 | 3.10 | 3.10 | 3.88 | 4.65 | 5.38 | 5.60 | 7.01 | 8.41 | 10.1 | 11.2 | 14.0 | 16.8 | |
| kgf.cm | 10.5 | 12.7 | 17.6 | 21.0 | 26.3 | 31.6 | 31.6 | 39.6 | 47.4 | 54.9 | 57.1 | 71.6 | 85.8 | 103 | 114 | 143 | 171 | ||
| 60Hz | Oputput Shaft Speed | r/min | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 |
| Allowable Torque | N.m | 0.9 | 1.08 | 1.50 | 1.80 | 2.23 | 2.70 | 2.70 | 3.38 | 4.05 | 4.88 | 4.88 | 6.10 | 7.33 | 8.79 | 9.76 | 12.2 | 14.6 | |
| kgf.cm | 9.18 | 11.0 | 15.3 | 18.4 | 23.0 | 27.6 | 27.6 | 34.5 | 41.3 | 49.5 | 49.5 | 62.2 | 74.7 | 90.0 | 99.8 | 124 | 149 |
| Frequency | Reduction Ratio | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz | Output Shaft Speed | r/min | 20 | 16 | 15 | 12 | 10 | 8 | 7.5 |
| Allowable Torque | N.m | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | |
| kgf.cm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||
| 60Hz | Oputput Shaft Speed | r/min | 24 | 20 | 18 | 15 | 12 | 10 | 9 |
| Allowable Torque | N.m | 18.3 | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | |
| kgf.cm | 187 | 200 | 200 | 200 | 200 | 200 | 200 |

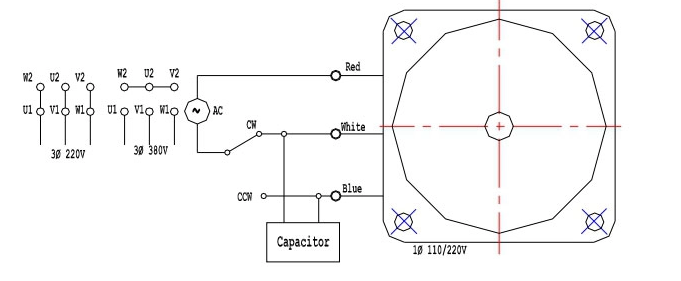

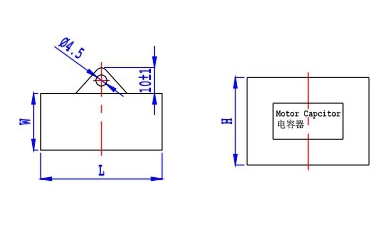

Capacitor / Wiring Diagram
