Induction Geared Motor 2IK 6W

List of Motor Caracteristics

Modle of Motor		Output	Voltage	Frequency	poples	Duty	Rated				Starting Torque		Capacitor/Ve
motor	Motor with gear shaft	W	V	Hz	P		Speed	Current	Torque		N.m	kgf.cm	ΠF/VAC
							r/min	A	N.m	kgf.cm
2IK6A-A	2IK6GN-A	6	1ph110	50	4	Cont	1250	0.20	0.05	0.45	0.06	0.55	3.0/250
2IK6A-C	2IK6GN-C	6	1ph220	50	4	Cont	1250	0.10	0.05	0.45	0.07	0.70	0.8/450
2IK6A-D		6	1ph220	50	2	Cont	2700	0.11	0.02	0.21	0.04	0.40	0.8/450

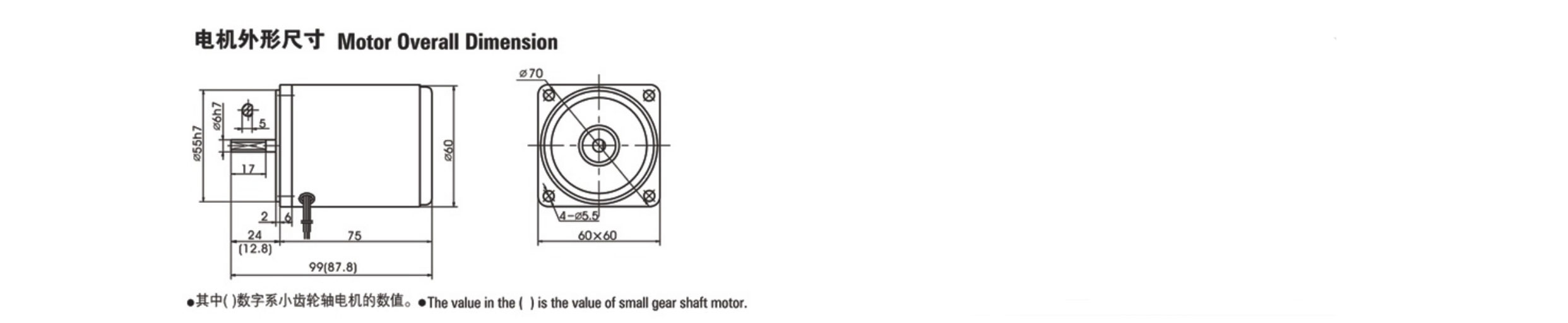

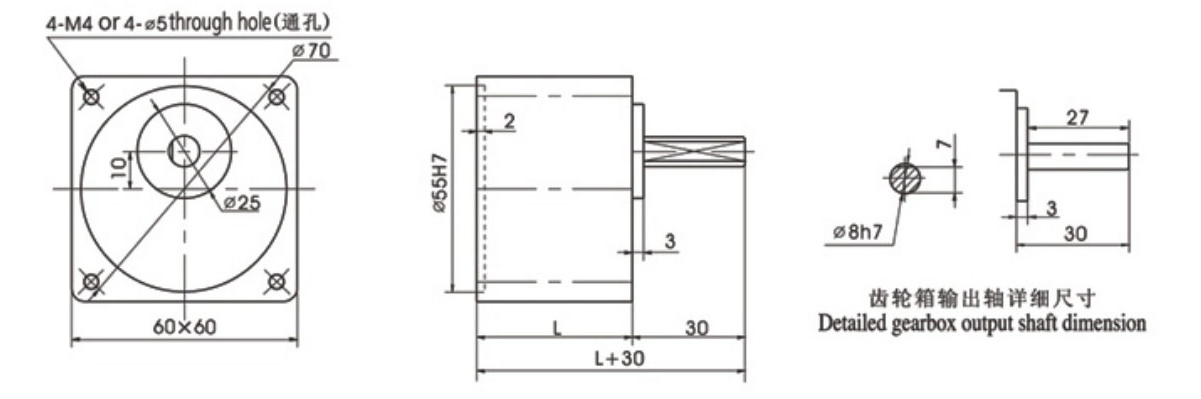

Overall Dimension of Gearbox

	Reduction Ratio	Length L(mm)	G.W.(Kg)
Gearbox	2GN3K-GN18K	32	0.24
	2GN20K-GN50K	42	0.30
	2GN60K-GN200K		0.33
Motor			0.70

Allowable Torque on Gearbox

Model of Geabox:2GN K

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50Hz	Output Shaft Speed	r/min	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Allowable Torque	N.m	0.13	0.15	0.21	0.21	0.32	0.38	0.42	0.53	0.76	0.76	0.76	0.95	1.14	1.36	1.52	1.72	2.06
		kgf.cm	1.3	1.5	2.1	2.1	3.2	3.9	4.3	5.4	6.4	7.7	7.7	9.7	11.6	13.9	12.5	17.5	21.0
60Hz	Oputput Shaft Speed	r/min	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	0.10	0.13	0.13	0.17	0.26	0.30	0.34	0.43	0.51	0.62	0.62	0.76	0.92	1.11	1.24	1.39	1.67
		kgf.cm	1.0	1.3	1.3	1.7	2.6	3.5	4.0	4.4	5.2	6.3	6.3	7.8	9.4	11.3	12.6	14.2	17.0

Frequency	Reduction Ratio		75	90	100	120	150	180	200
50Hz	Output Shaft Speed	r/min	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	2.57	2.94	2.94	2.94	2.94	2.94	2.94
		kgf.cm	26.2	30.0	30.0	30.0	30.0	30.0	30.0
60Hz	Oputput Shaft Speed	r/min	24	20	18	15	12	10	9
	Allowable Torque	N.m	2.09	2.50	2.78	2.94	2.94	2.94	2.94
		kgf.cm	21.3	25.5	28.4	30.0	30.0	30.0	30.0

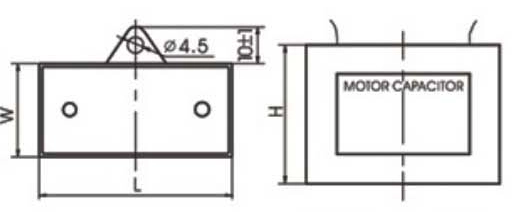

Capacitor

Capacity(∏F） Tolerance: ±0.5%	Voltage	L±1	W±1	H±1	Type
	V	mm	mm	mm
0.8	450	37	14	28	Down-lead
3.0	250	47	22	34

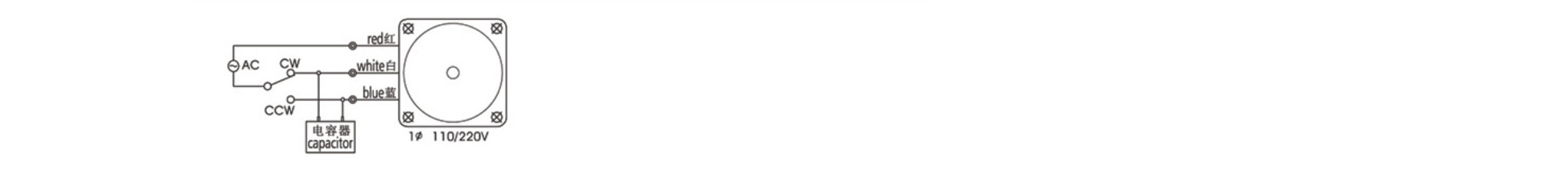

Wiring Diagram

Frequency	Reduction ratio		180	200
50Hz	Output Shaft Speed	r/min	8	7.5
	Allowable Torque	N.m	2.94	2.94
		kgf.cm	30.0	30.0
60Hz	Output Shaft Speed	r/min	10	9
	Allowable Torque	N.m	2.94	2.94
		kgf.cm	30.0	30.0
