Induction Geared Motor 5IK 90W

Availability:

Quantity:



Inquire Add to Basket

Product Description

11-5IK-90W_page-0001_02

List of Motor Caracteristics

Modle of Motor & Gearbox		Output Power	Rated Voltage	Rated Freq'y	No.of Poles	Duty Cycle	Rated Load				Starting Torque		Capacitor/Voltage
Motor Only	Motor with gear shaft	W	V	Hz	P		Speed	Current	Torque		N.m	kgf.cm	ΠF/VAC
Motor Only	Motor with gear shaft	W	V	Hz	P		r/min	A	N.m	kgf.cm	N.m	kgf.cm	ΠF/VAC
5IK90A-AF	5IK90GU-AF	90	1Ph 110	50	4	Cont	1350	1.40	0.64	6.40	0.50	5.00	20.0/250
5IK90A-CF	5IK90GU-CF	90	1Ph 220	50	4	Cont	1350	0.70	0.64	6.40	0.48	4.80	5.0/450
5IK90A-SF	5IK90GU-SF	90	3Ph 220	50	4	Cont	1300	0.66	0.66	6.60	2.40	24.0	/
5IK90A-SF	5IK90GU-SF	90	3Ph 380	50	4	Cont	1300	0.38	0.66	6.60	2.40	24.0	/
5IK90A-DF		90	1Ph 200	50	2	Cont	2800	0.79	0.30	3.00	0.34	3.40	6.0/450

If the voltage is different,the capacitor's capacity will also be different.A suitable capacitor is required to match the applied voltage.wrong of the motor or components the main reason to cause problem.So before order,Please specify the correct voltage &select the suitable model (s)

Overall Dimension of Gearbox

11-5IK-90W_page-0001_04_1332_524 11-5IK-90W_page-0001_04_641_316

	Gear Ratio	Length L(mm)	G.W.(Kg)
Gearbox	1:3~1:9	65	1.21
	1:10~1:18		1.30
	1:20~1:75		1.40
	1:90~1:200		1.45
Motor			3.40

Allowable Torque on Gearbox

Model of Geabox:2GN K

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50Hz	Output Shaft Speed	r/min	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Permitted Torque	N.m	1.55	1.86	2.58	3.10	3.87	4.64	4.65	5.81	6.98	8.37	8.40	10.5	12.6	15.1	16.8	19.6	19.6
	Permitted Torque	kgf.cm	15.8	19.0	29.2	31.6	39.6	47.2	47.4	59.3	71.2	85.4	85.7	107	129	154	171	200	200
60Hz	Oputput Shaft Speed	r/min	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	1.35	1.62	2.25	2.70	3.37	4.04	4.05	5.06	6.07	7.29	7.32	9.15	11.0	13.2	14.6	18.3	19.6
	Allowable Torque	kgf.cm	13.8	16.5	23.0	27.6	34.4	41.2	41.3	51.6	61.9	74.4	74.7	93.4	112	135	149	187	200

Frequency	Reduction Ratio		75	90	100	120	150	180	200
50Hz	Output Shaft Speed	r/min	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	19.6	19.6	19.6	19.6	19.6	19.6	19.6
	Allowable Torque	kgf.cm	200	200	200	200	200	200	200
60Hz	Oputput Shaft Speed	r/min	24	20	18	15	12	10	9
	Allowable Torque	N.m	19.6	19.6	19.6	19.6	19.6	19.6	19.6
	Allowable Torque	kgf.cm	200	200	200	200	200	200	200

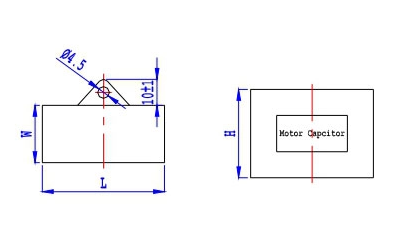

Capacitor / Wiring Diagram

11-5IK-90W_page-0001_06_394_250 11-5IK-90W_page-0001_06_648_283

Capacity(∏F） Tolerance: ±0.5%	Voltage	L±1	W±1	H±1	Type
Capacity(∏F） Tolerance: ±0.5%	V	mm	mm	mm	Type
5.0	450	47	22	34	With Lead Wire
6.0	450	47	26	38
20.0	250	68	32	56
