Reversible Geared Motor 2RK 6W

Availability:
Quantity:

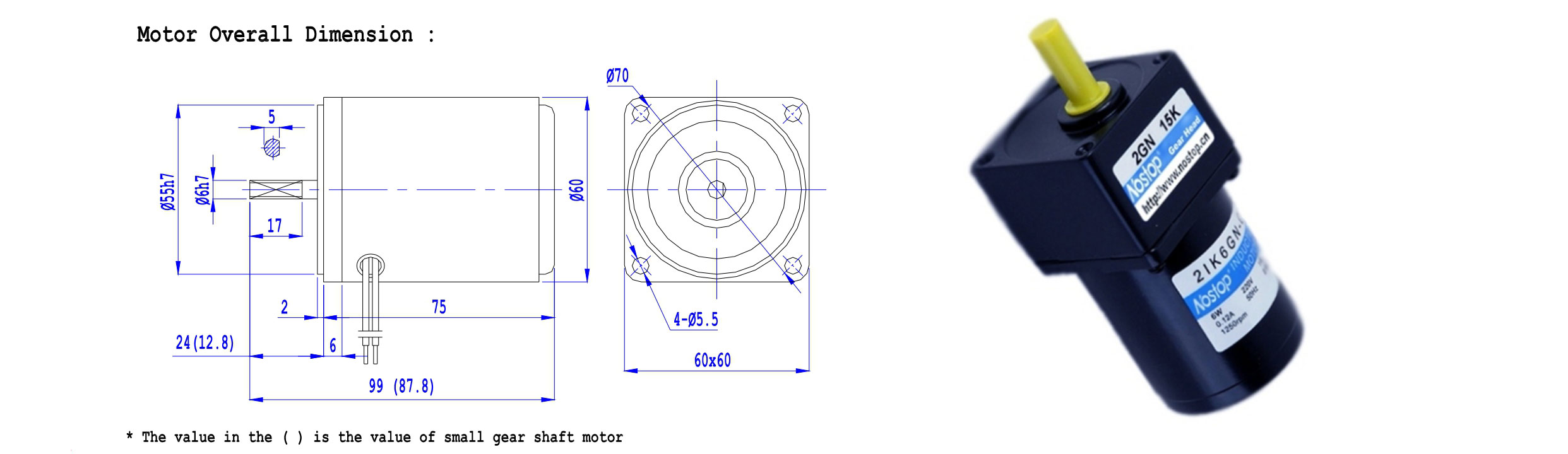

15-2RK-6W_page-0001_02

List of Motor Caracteristics


Modle of Motor & Gearbox
Output Power Rated Voltage Rated Freq'y No.of Poles

Duty

Cycle

Rated Load
Starting Torque Capacitor/Voltage
Motor Only Motor with gear shaft W V Hz P Speed Current Torque
N.m
kgf.cm

ΠF/VAC
r/min A N.m kgf.cm
2RK6A-A
2RK6GN-A 6 1Ph 100 50 4 30Min 1250 0.22 0.05 0.45 0.06 0.60 3.5/250
2RK6A-C 2RK6GN-C 6 1Ph 220 50 4 30Min 1250 0.11 0.05 0.45 0.06 0.60 1.0/450

If the voltage is different,the capacitor's capacity will also be different.A suitable capacitor is required to match the applied voltage.wrong of the motor or components the main reason to cause problem.So before order,Please specify the correct voltage &select the suitable model (s)

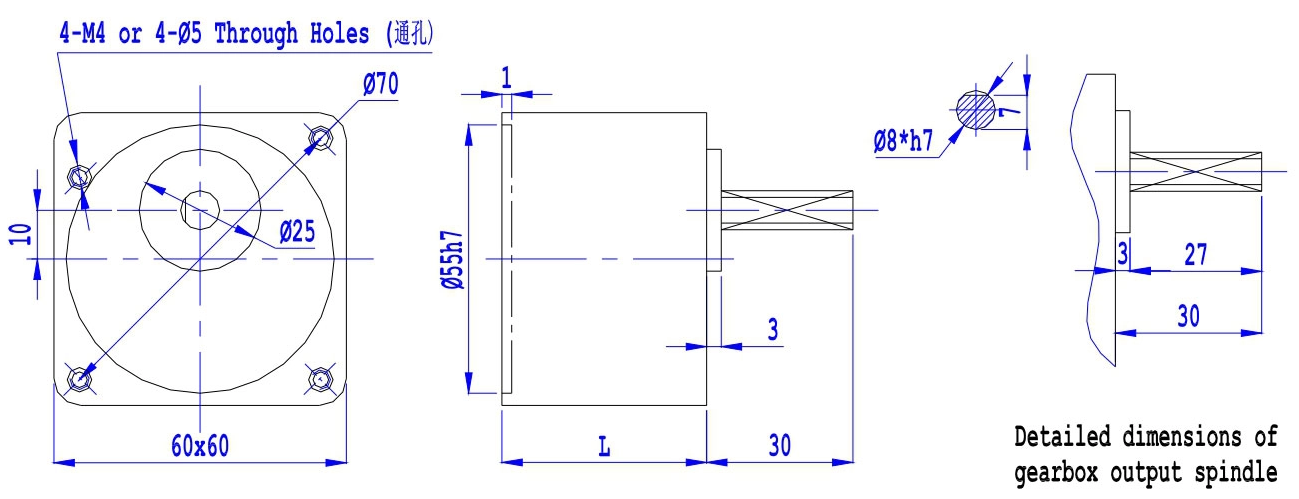

Overall Dimension of Gearbox

15-2RK-6W_page-0001_04_1299_499


Gear Ratio Length L(mm) G.W.(Kg)
Gearbox 1:3~1:8 32 0.24
1:20~1:50 42 0.30
1:60~1:200 0.33
Motor
0.71

Allowable Torque on Gearbox

Model of Geabox:2GN K

Frequency Reduction Ratio
3 3.6 5
6 7.5 9 10 12.5 15 18
20 25 30 36 40 50
60
50Hz Output Shaft Speed r/min 500 417
300 250 200 166 150 120 100 83 75 60 50 41 37 30 25
Permitted Torque N.m 0.13 0.15 0.21 0.26 0.31 0.38 0.42 0.53 0.63 0.76 0.76 0.95 1.14 1.36 1.52 1.72 2.06
kgf.cm 1.3 1.5 2.1 2.6 3.2 3.9 4.3 5.4 6.4 7.7 7.7 9.7 11.6 13.9 12.5 17.5


21.0

60Hz
Oputput Shaft Speed r/min 600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30
Allowable Torque N.m 0.10 0.13 0.17 0.21 0.26 0.30 0.34 0.43 0.51 0.62 0.62 0.76 0.92 1.11 1.24 1.39 1.67
kgf.cm 1.0 1.3 1.7 2.1 2.6 3.5 4.0 4.4 5.2 6.3 6.3 7.8 9.4 11.3 12.6 14.2 17.0
Frequency Reduction Ratio
75 90 100 120 150 180 200
50Hz Output Shaft Speed r/min 20
16 15 12 10 8 7.5
Allowable Torque N.m 2.57 2.94 2.94 2.94 2.94 2.94 2.94
kgf.cm 26.2 30.0 30.0 30.0 30.0 30.0 30.0
60Hz
Oputput Shaft Speed r/min 24 20 18 15 12 10 9
Allowable Torque N.m 2.09 5.50 2.78 2.94 2.94 2.94 2.94
kgf.cm 21.3 25.5 28.4 30.0 30.0 30.0 30.0

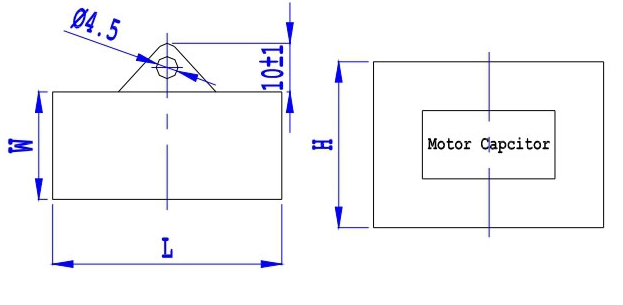

Capacitor  / Wiring Diagram


15-2RK-6W_page-0001_06_623_30515-2RK-6W_page-0001_06_630_371

Capacity(∏F)

Tolerance: ±0.5%

Voltage L±1 W±1 H±1 Type
V mm mm mm
1.0 450 37 14 28

With

Lead Wire

3.5 250 47 22 34
