Brief Introduction :
Wheel: Aluminum Alloy Insulation System: Class E, B, F or H As Request
Housing: Galvanized Sheet or E-Coating Operating Temperature: -10°C To +50°C
Motor Type: Shaded Pole Motors NSP61 Series (can be others) Overheating Protection: T.P. or Z.P.
Bearing: Ball Bearing or Bronze Sleeve Electrical Connection: Flat-pin Terminal or Lead Wire
Power Supply: 100 – 240VAC as request RoHS Compliance: As Needed

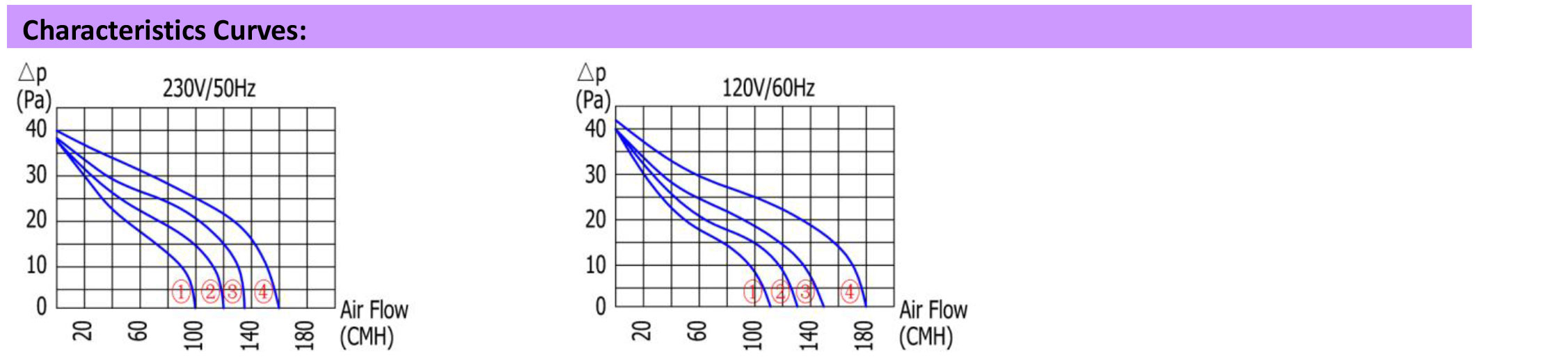

Technical Performances (based on free air conditions) :

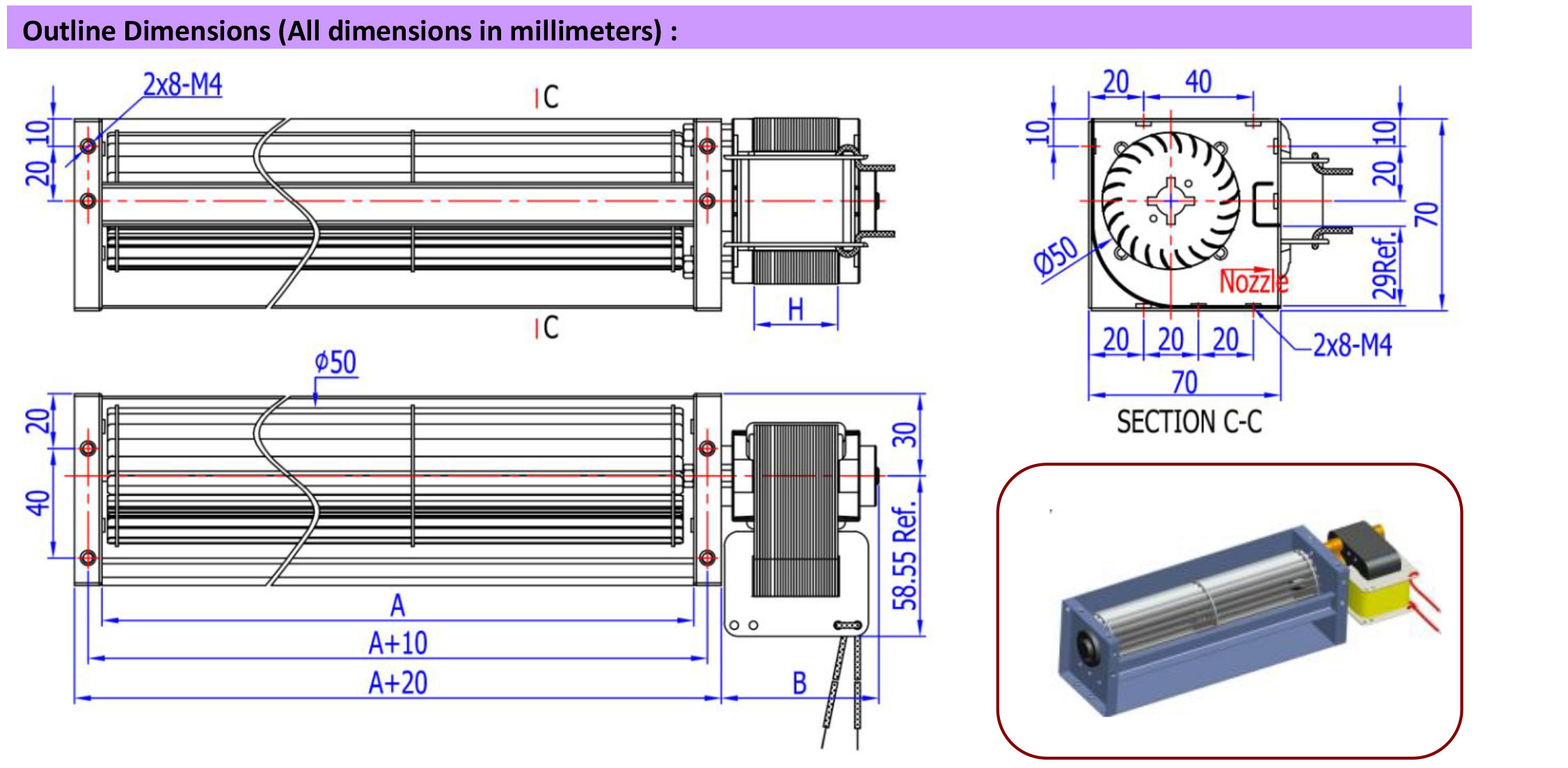

Specifications | Power Supply | Input Power | Output Speed | Max. Airflow | Max. Static Pressure | Noise Level | Dimensions(mm) | ||||||
Volts | Freq’y | Metric | American | Metric | American | A | B | C | |||||
Models | (VAC) | (Hz) | (Watts) | (rpm) | (m 3 /h) | (CFM) | (Pa) | (in H 2 O) | [dB(A)] | ||||
① | NAF50200-SP6115 | 230 | 50 | 15 | 2000 | 100 | 59 | 37 | 0.1487 | 42 | 200 | 42 | 15 |
120 | 60 | 15 | 2200 | 110 | 65 | 40 | 0.1608 | 45 | |||||
② | NAF50250-SP6120 | 230 | 50 | 22 | 2000 | 120 | 71 | 37 | 0.1487 | 43 | 250 | 47 | 20 |
120 | 60 | 22 | 2200 | 130 | 77 | 40 | 0.1608 | 45 | |||||
③ | NAF50300-SP6125 | 230 | 50 | 30 | 2000 | 135 | 80 | 38 | 0.1528 | 43 | 300 | 52 | 25 |
120 | 60 | 30 | 2200 | 150 | 89 | 40 | 0.1608 | 46 | |||||
④ | NAF50350-SP6130 | 230 | 50 | 38 | 2000 | 160 | 95 | 40 | 0.1608 | 43 | 350 | 57 | 30 |
120 | 60 | 38 | 2200 | 180 | 107 | 42 | 0.1688 | 47 | |||||
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
