Ø45mm Wheel + AC Shaded Pole Motor Cross Flow Blowers NAR45 Series

Share to:

Ø45mm Wheel + AC Shaded Pole Motor Cross Flow Blowers NAR45 Series

Availability:

Quantity:



Inquire Add to Basket

Product Description

Brief Introduction :

Wheel: Aluminum Alloy Insulation System: Class E, B, F or H As Request

Housing: Galvanized Sheet or E-Coating Operating Temperature: -10°C To +50°C

Motor Type: Shaded Pole Motors NSP61 Series (can be others) Overheating Protection: T.P. or Z.P.

Bearing: Ball Bearing or Bronze Sleeve Electrical Connection: Flat-pin Terminal or Lead Wire

Power Supply: 100 – 240VAC as request RoHS Compliance: As Needed

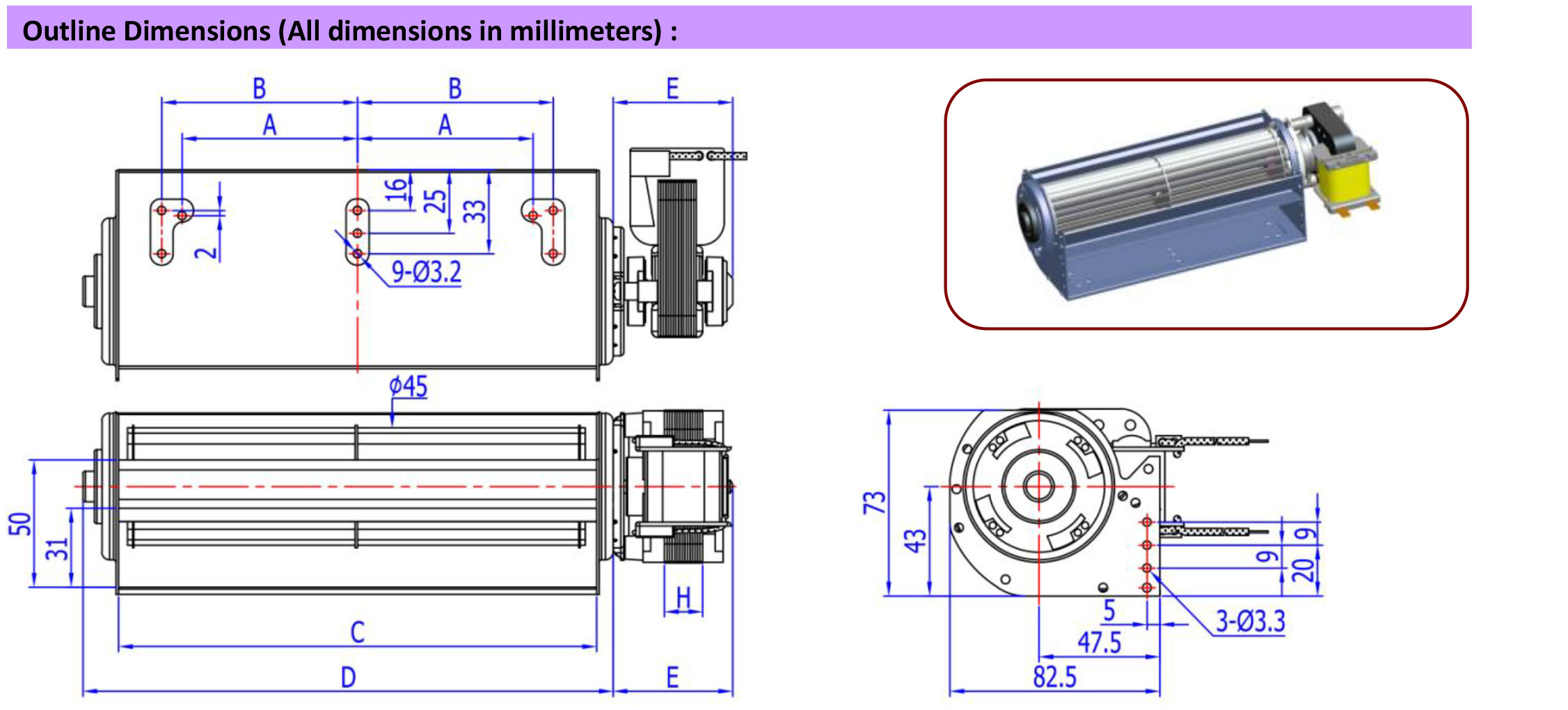

P22-AR45-series_04

Technical Performances (based on free air conditions) :

No.	Specifications	Power Supply		Input Power	Output Speed	Max. Airflow		Max. Static Pressure		Noise Level	Dimensions(mm)
		Volts	Freq’y			Metric	American	Metric	American		A	B	C	D	E
	Models	(VAC)	(Hz)	(Watts)	(rpm)	(m 3 /h)	(CFM)	(Pa)	(in H 2 O)	[dB(A)]
①	NAR45120 -SP6110	230	50	17	2100	80	47	60	0.2412	46	37	47	121	148	42
		120	60	16	2100	80	47	60	0.2412	46
②	NAR45180 -SP6115	230	50	21	1400	120	71	47	0.1889	40	69	77	188	215	47
		120	60	25	1800	150	88	53	0.2131	43
③	NAR45240 -SP6120	230	50	23	1600	155	92	50	0.2010	42	98	106	242	269	52
		150	60	22	1600	155	92	50	0.2010	45
④	NAR45300 -SP6125	230	50	28	1800	190	112	53	0.2131	45	126	136	303	330	57
		120	60	25	1600	170	100	50	0.2010	43

P22-AR45-series_08

Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
