Brief Introduction :
Wheel: Aluminum Alloy Insulation System: Class E, B, F or H As Request
Housing: Galvanized Sheet or E-Coating Operating Temperature: -10°C To +50°C
Motor Type: Shaded Pole Motors NSP61 Series (can be others) Overheating Protection: T.P. or Z.P.
Bearing: Ball Bearing or Bronze Sleeve Electrical Connection: Flat-pin Terminal or Lead Wire
Power Supply: 100 – 240VAC As Request RoHS Compliance: As Needed
Technical Performances (based on free air conditions) :

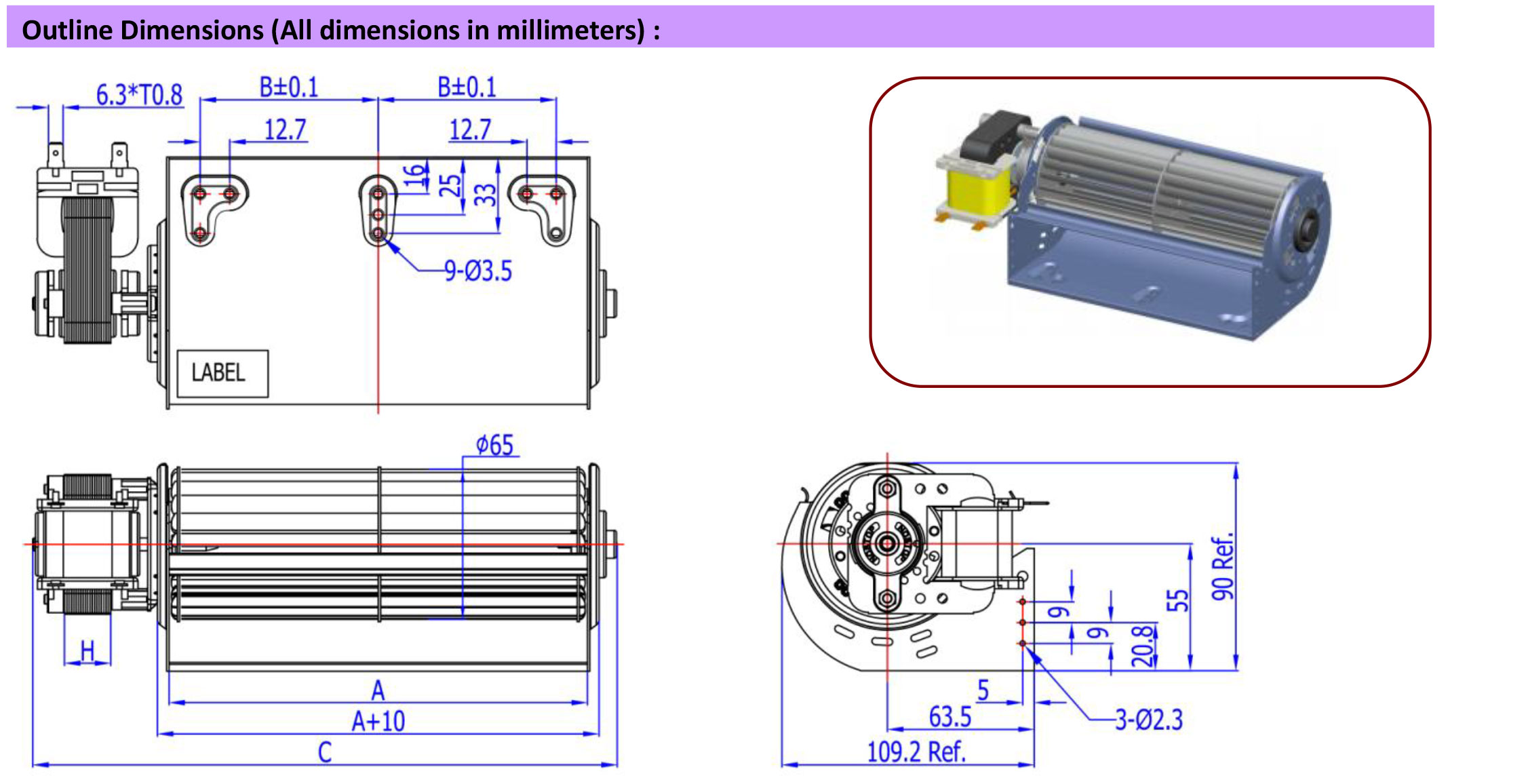

Specs | Power Supply | Input Power | Output Speed | Max. Airflow | Max. Static Pressure | Noise Level | Dimensions(mm) | |||||||
Volts | Freq’y | Metric | American | Metric | American | A | B | C | H | |||||
Model | (VAC) | (Hz) | (Watts) | (rpm) | (m 3 /h) | (CFM) | (Pa) | (in H 2 O) | [dB(A)] | |||||
① | NAR65120 -SP6120 | 230 | 50 | 15 | 1300 | 85 | 50 | 60 | 0.2412 | 42 | 121 | 46.5 | 193 | 20 |
120 | 60 | 20 | 1500 | 100 | 60 | 68 | 0.2734 | 45 | ||||||
② | NAR65180 -SP6125 | 230 | 50 | 30 | 1500 | 170 | 100 | 80 | 0.3216 | 46 | 181 | 77 | 258 | 25 |
120 | 60 | 23 | 1600 | 145 | 85 | 73 | 0.2935 | 42 | ||||||
③ | NAR65240 -SP6130 | 230 | 50 | 38 | 1200 | 220 | 130 | 70 | 0.2814 | 42 | 242 | 106 | 324 | 30 |
120 | 60 | 40 | 1300 | 240 | 142 | 75 | 0.3015 | 43 | ||||||
④ | NAR65300 -SP6135 | 230 | 50 | 42 | 1200 | 250 | 148 | 70 | 0.2814 | 42 | 303 | 136 | 390 | 35 |
120 | 60 | 45 | 1300 | 280 | 166 | 75 | 0.3015 | 43 | ||||||
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
