Brief Introduction :
Wheel: Aluminum Alloy Insulation System: Class E, B, F or H As Request
Housing: Galvanized Sheet or E-Coating Operating Temperature: -10°C To +50°C
Motor Type: Shaded Pole Motors NSP48 Series (can be others) Overheating Protection: T.P. or Z.P.
Bearing: Ball Bearing or Bronze Sleeve Electrical Connection: Flat-pin Terminal or Lead Wire
Power Supply: 100 – 240VAC as request RoHS Compliance: As Needed

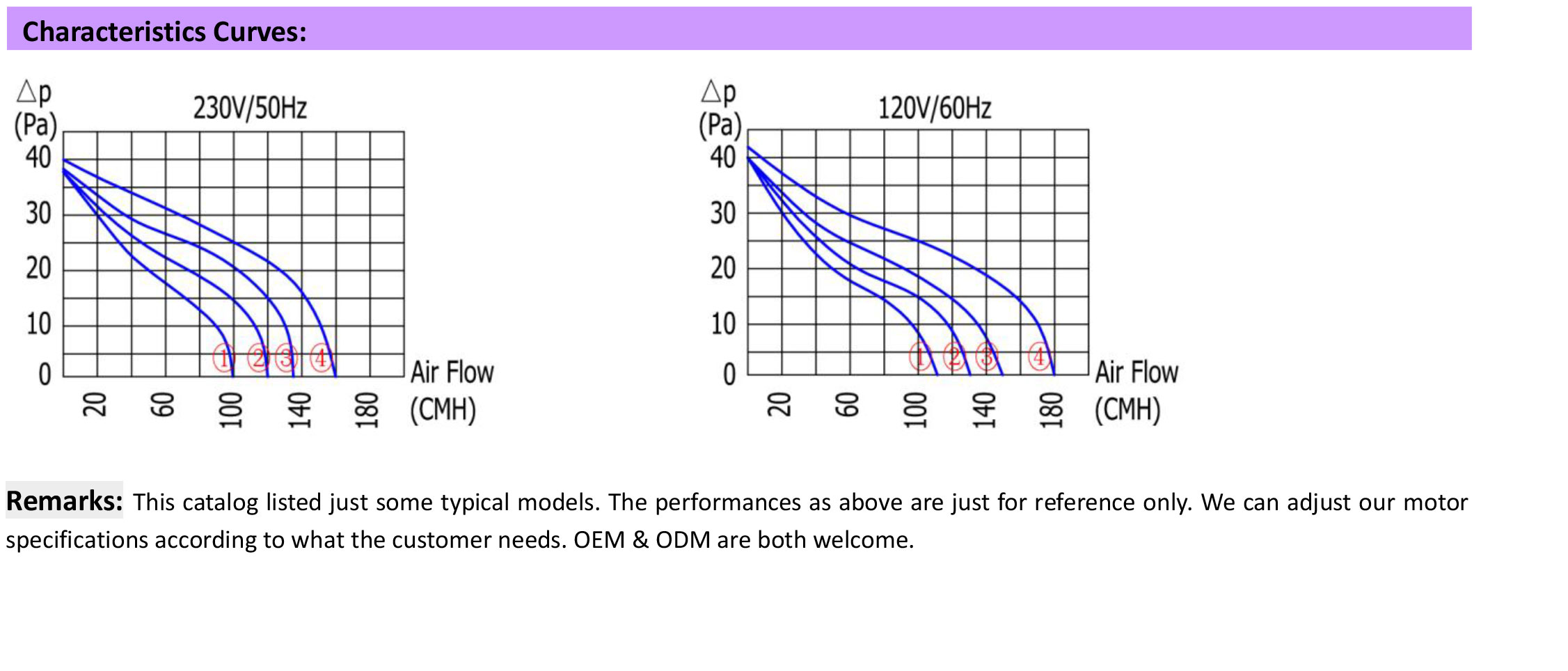

Technical Performances (based on free air conditions) :
Specifications | Power Supply | Input Power | Output Speed | Max. Airflow | Max. Static Pressure | Noise Level | Dimensions | ||||||
Volts | Freq’y | Metric | American | Metric | American | A | B | H | |||||

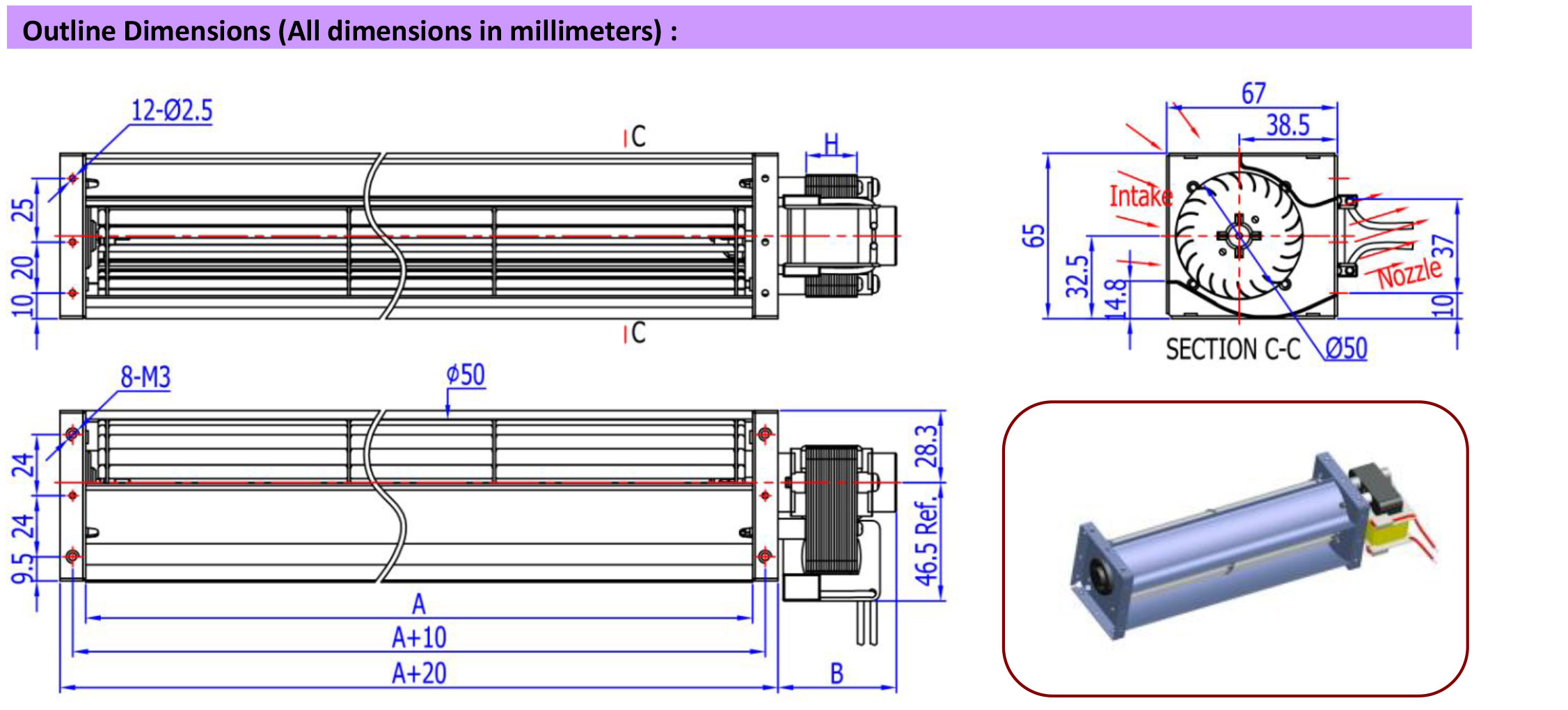

Model | (VAC) | (Hz) | (Watts) | (rpm) | (m 3 /h) | (CFM) | (Pa) | (in H 2 O) | [dB(A)] | (mm) | (mm) | (mm) | |
① | NAH50200-SP4815 | 230 | 50 | 13 | 2000 | 78 | 46 | 11 | 0.0442 | 41 | 200 | 41.5 | 15 |
120 | 60 | 13 | 2300 | 90 | 53 | 13 | 0.0523 | 43 | |||||
② | NAH50250-SP4820 | 230 | 50 | 18 | 2000 | 130 | 77 | 15 | 0.0603 | 42 | 250 | 46.5 | 20 |
120 | 60 | 18 | 2300 | 150 | 88 | 18 | 0.0724 | 45 | |||||
③ | NAH50300-SP4820 | 230 | 50 | 22 | 2000 | 150 | 88 | 15 | 0.0603 | 42 | 300 | 46.5 | 20 |
120 | 60 | 22 | 2300 | 170 | 100 | 18 | 0.0724 | 45 | |||||
