Brief Introduction :
Wheel: Aluminum Alloy Insulation System: Class E, B, F or H As Request
Housing: Galvanized Sheet or E-Coating Operating Temperature: -10°C To +50°C
Motor Type: Shaded Pole Motors NSP61 Series (can be others) Overheating Protection: T.P. or Z.P.
Bearing: Ball Bearing or Bronze Sleeve Electrical Connection: Flat-pin Terminal or Lead Wire
Power Supply: 100 – 240VAC as request RoHS Compliance: As Needed

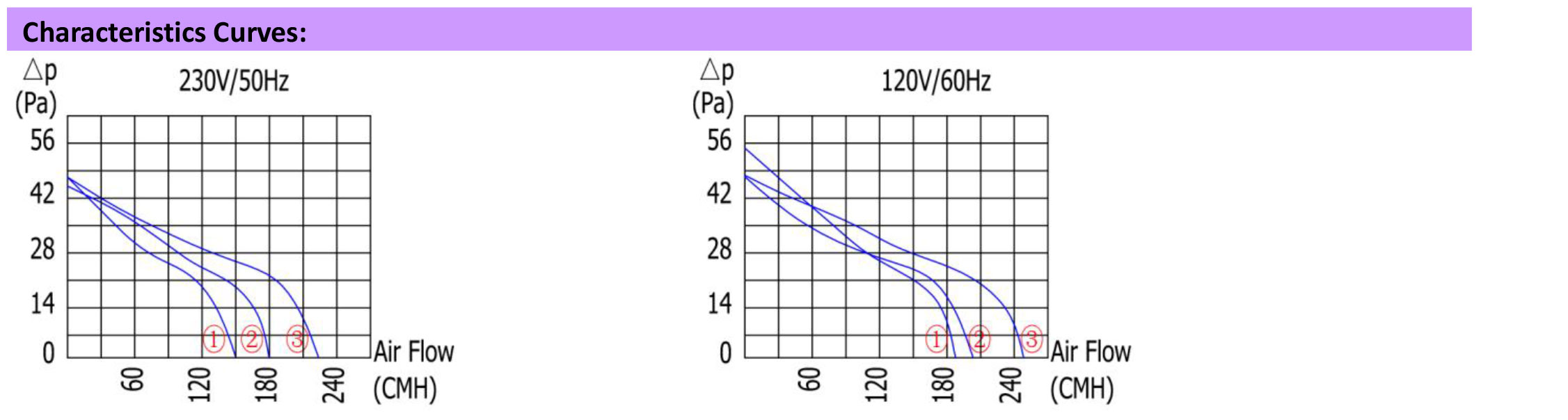

Technical Performances (based on free air conditions) :
Specifications | Power Supply | Input Power | Output Speed | Max. Airflow | Max. Static Pressure | Noise Level | Dimensions | ||||||
Volts | Freq’y | Metric | American | Metric | American | A | B | H | |||||
Model | (VAC) | (Hz) | (Watts) | (rpm) | (m 3 /h) | (CFM) | (Pa) | (in H 2 O) | [dB(A)] | (mm) | (mm) | (mm) | |
① | NAF60180-SP6130 | 230 | 50 | 28 | 2000 | 150 | 88 | 47 | 0.1889 | 45 | 184 | 47 | 30 |
120 | 60 | 32 | 2500 | 185 | 110 | 55 | 0.2211 | 48 | |||||
② | NAF60240-SP6130 | 230 | 50 | 33 | 1800 | 180 | 106 | 45 | 0.1809 | 43 | 245 | 47 | 30 |
120 | 60 | 38 | 2000 | 200 | 118 | 47 | 0.1889 | 46 | |||||
③ | NAF60300-SP6140 | 230 | 50 | 40 | 1800 | 225 | 121 | 47 | 0.1889 | 42 | 306 | 57 | 40 |
120 | 60 | 45 | 2000 | 250 | 148 | 48 | 0.1930 | 46 | |||||
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
