Brief Introduction :
Wheel: Aluminum Alloy Insulation System: Class E, B, F or H as Request
Housing: Galvanized Sheet or E-Coating Operating Temperature: -10°C To +50°C
Motor Type: Shaded Pole Motors NSP61 Series (can be others) Overheating Protection: T.P. or Z.P.
Bearing: Ball Bearing or Bronze Sleeve Electrical Connection: Flat-pin Terminal or Lead Wire
Power Supply: 100 – 240VAC as Request RoHS Compliance: As needed

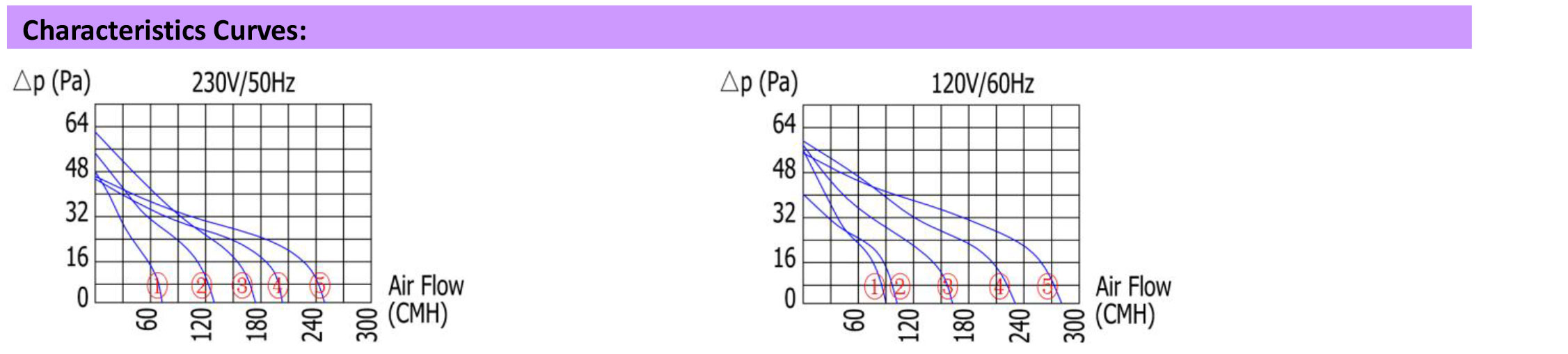

Technical Performances (based on free air conditions) :

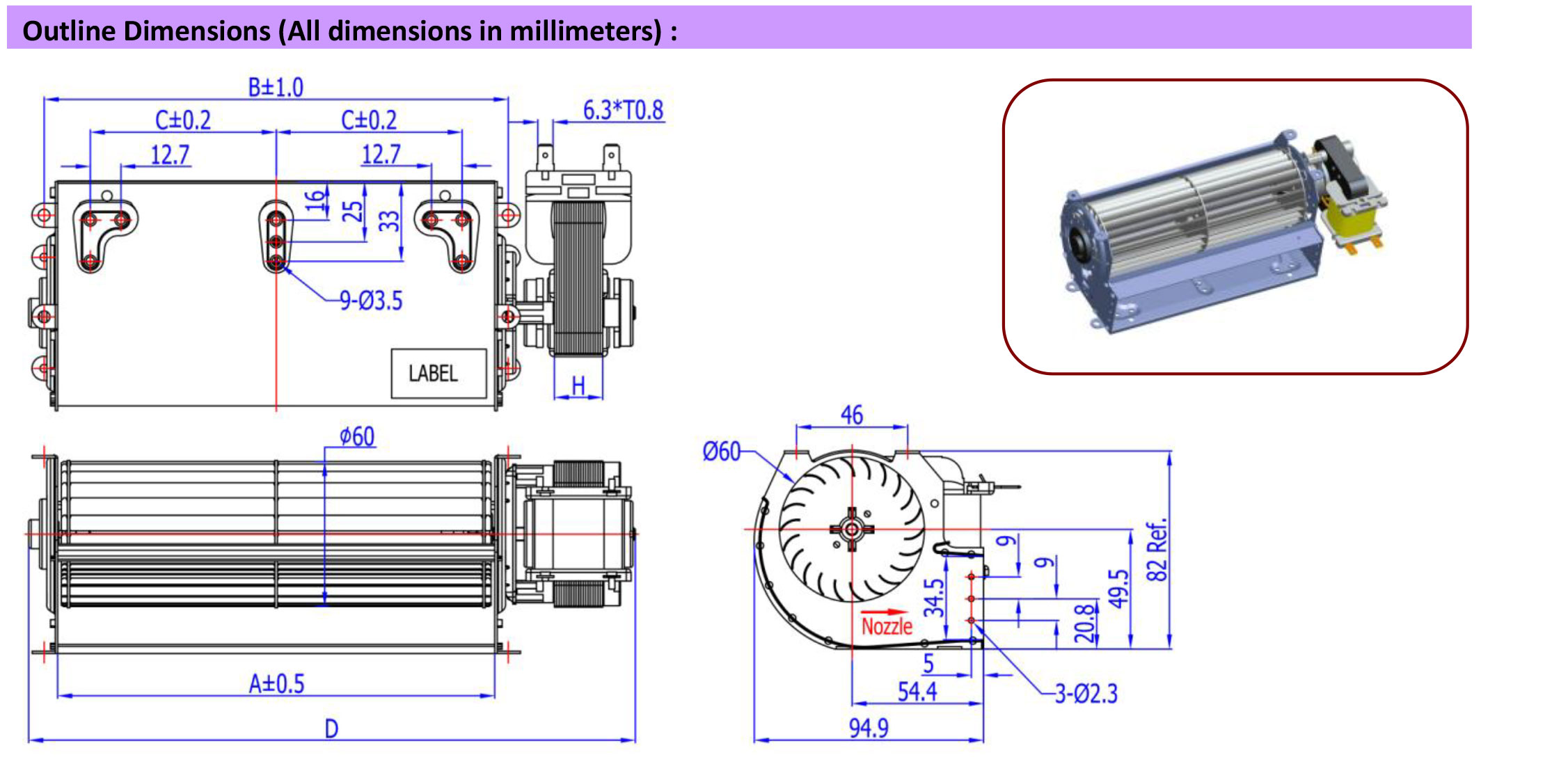

Specs | Power Supply | Input Power | Output Speed | Max. Airflow | Max. Static Pressure | Noise Level | Dimensions(mm) | ||||||||
Volts | Freq’y | Metric | American | Metric | American | A | B | C | D | H | |||||
Model | (VAC) | (Hz) | (Watts) | (rpm) | (m 3 /h) | (CFM) | (Pa) | (in H 2 O) | [dB(A)] | ||||||
① | NAR60120 -SP6120 | 230 | 50 | 17 | 1600 | 70 | 41 | 48 | 0.1930 | 45 | 121 | 132 | 46.5 | 188 | 20 |
120 | 60 | 20 | 2000 | 90 | 53 | 56 | 0.2251 | 49 | |||||||
② | NAR60180 -SP6115 | 230 | 50 | 23 | 1400 | 130 | 77 | 55 | 0.2211 | 45 | 181 | 192 | 77 | 253 | 15 |
120 | 60 | 18 | 1200 | 100 | 60 | 40 | 0.1608 | 40 | |||||||
③ | NAR60240 -SP6125 | 230 | 50 | 33 | 1700 | 170 | 100 | 63 | 0.2533 | 48 | 242 | 253 | 106 | 324 | 25 |
120 | 60 | 30 | 1600 | 160 | 95 | 57 | 0.2291 | 47 | |||||||
④ | NAR60300 -SP6130 | 230 | 50 | 28 | 1400 | 200 | 120 | 45 | 0.1809 | 43 | 303 | 314 | 136 | 380 | 30 |
120 | 60 | 45 | 1600 | 230 | 136 | 60 | 0.2412 | 47 | |||||||
NAR60360 -SP6135 | 230 | 50 | 45 | 1400 | 250 | 148 | 46 | 0.1849 | 44 | 366 | 377 | 166 | 453 | 35 | |
120 | 60 | 47 | 1600 | 290 | 171 | 55 | 0.2211 | 48 | |||||||
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
