Basic Introduction & Main Features :
1. Specially designed as hot-air circulation fans used for Oven, Sterilization Units, Climate
Cabinet, Meal & Dish Warmer, etc.
2. With a radial impeller (cooling fan) made of sheet steel and a mounting plate (heat
shield) to set the motor away from the hot area of approx. 250°C.
3. For the motor using sleeve bearings, high temperature-resistant lubricant is used in the
sleeve bearings. The max. permitted temperature of the bearing lubricant is up to 200°C.
4. If the motor uses sleeve bearings, the motor must work with its shaft horizontally.
5. Motor with ball bearings are also available on request. If the ball bearings are used, the
motor shaft position can be any (not only horizontal);
6. Motor winding insulation is Class H (permitting max. 180°C as IEC 62114).
7. Stainless steel fan blades are available. Other special requirements are welcome.

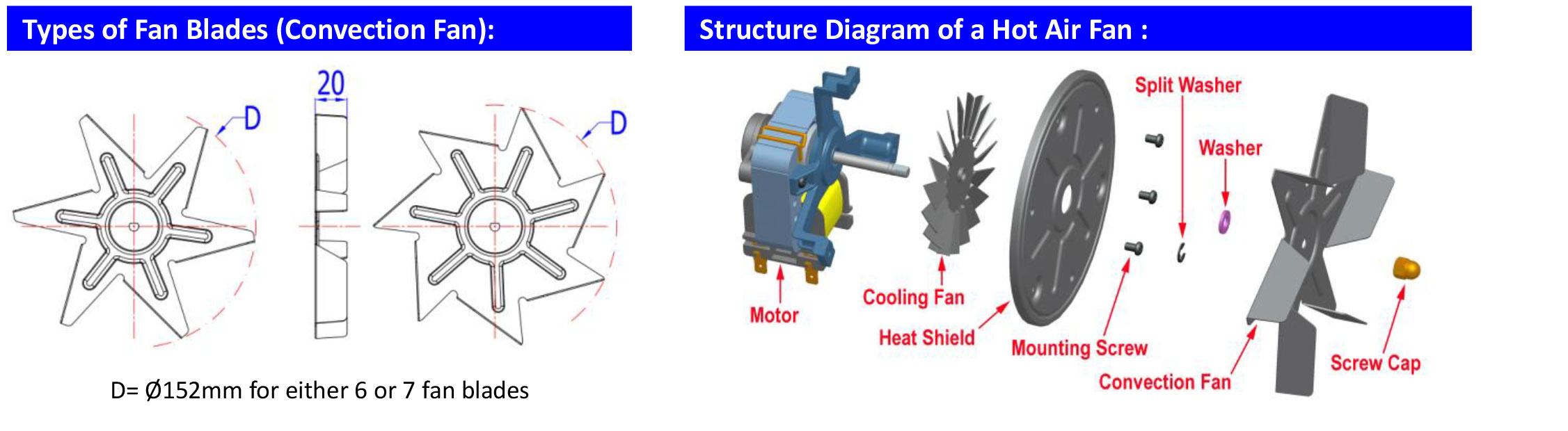

8. Two types of fan blades are available: either Ø152*7P or Ø152*6P.

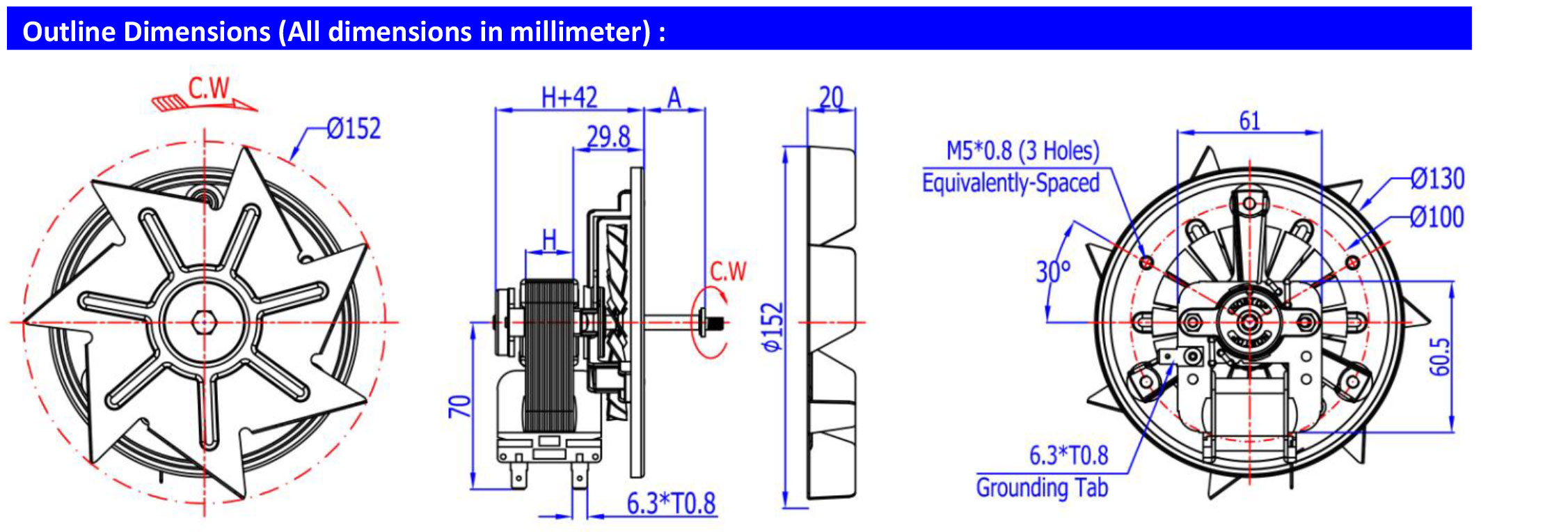

Remarks: only the dimensions marked in letters are changeable as needed. Other dimensions are fixed.
Technical Performances (tested under room temperature) :
Specs | Stack Height | Rated Supply | Rated Performances | Gross Weight | |||
Voltage | Voltage | Current | Speed | Input Power | |||
Models | (mm) | (VAC) | (Hz) | (Amps) | (rmp) | (Watts) | (Kgs) |
NSP6115-HT6 | 12 | 120 | 60 | 0.42 | 1300 | 26 | 0.75 |
NSP6120-HT6 | 20 | 230 | 50 | 0.26 | 1450 | 30 | 0.90 |
NSP6125-HT6 | 25 | 230 | 50 | 0.30 | 1600 | 35 | 1.05 |
NSP6130-HT6 | 30 | 230 | 50 | 0.33 | 1800 | 38 | 1.20 |
Remarks: This catalog listed just some typical models. The performances as above are just for reference only. We can adjust our motor specifications according to what the customer needs. OEM & ODM are both welcome.
