| Type | Ratd voltage (VDC) | No-load speed (r/min) | No-load current (mA) | Rated speed (r/min) | Rated torque (mN.m) | Output power (W) | Biggest torque (mN.m) |
| 57ZWN98-2420 | 24 | 2000 | 200 | 1450 | 0.40 | 60 | 4.0 |
| 57ZWN98-2430 | 24 | 3000 | 300 | 2000 | 0.40 | 80 | 6.0 |
| 57ZWN98-2441 | 24 | 4100 | 250 | 3300 | 0.55 | 180 | 9.2 |
| Redution ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 | 55 | 65 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |

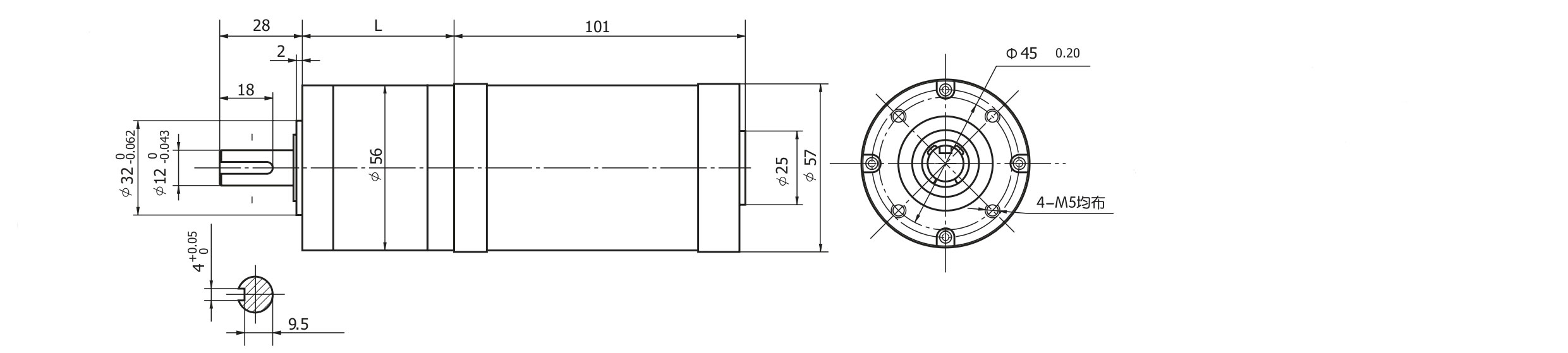

| Length(L) mm | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 57.5 | 57.5 | 57.5 | 57.5 |
| No-load speed r/min | 556 | 471 | 154 | 133 | 111 | 63 | 43 | 36 | 31 |
| Rated speed r/min | 403 | 341 | 112 | 97 | 81 | 45 | 31 | 26 | 22 |
| Rated torque N.m | 1.3 | 1.5 | 4.2 | 4.9 | 5.8 | 10 | 14 | 16 | 19 |
| Max.permissible load in a short time N.m | 3 | 3 | 10 | 10 | 10 | 30 | 30 | 30 | 30 |
| Redution ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 | 55 | 65 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |
| Length(L) mm | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 57.5 | 57.5 | 57.5 | 57.5 |
| No-load speed r/min | 833 | 706 | 231 | 200 | 167 | 94 | 64 | 55 | 46 |
| Rated speed r/min | 556 | 471 | 154 | 133 | 111 | 63 | 43 | 36 | 31 |
| Rated torque N.m | 1.3 | 1.5 | 4.2 | 4.9 | 5.8 | 10 | 14 | 19 | 19 |
| Max.permissible load in a short time N.m | 3 | 3 | 10 | 10 | 10 | 30 | 30 | 30 | 30 |
| Redution ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 |
| Length(L) mm | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 57.5 | 57.5 |
| No-load speed r/min | 1139 | 965 | 315 | 273 | 228 | 128 | 87 |
| Rated speed r/min | 917 | 776 | 254 | 220 | 183 | 103 | 70 |
| Rated torque N.m | 1.8 | 2.1 | 5.8 | 6.7 | 8.0 | 14 | 19 |
| Max.permissible load in a short time N.m | 3 | 3 | 10 | 10 | 10 | 30 | 30 |
