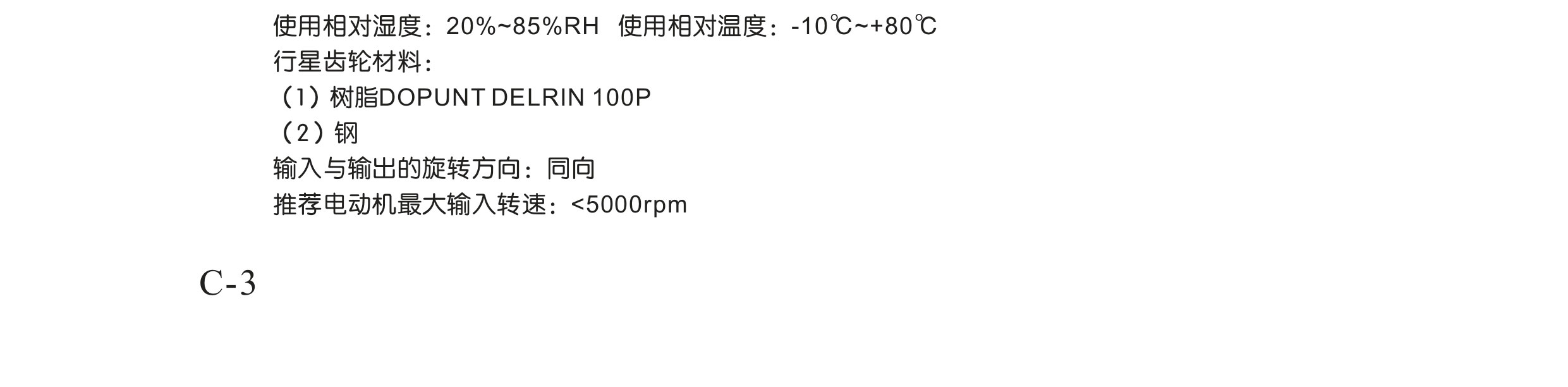

| Housing material | Metal |
| Bearing at output | Sleeve earings |
| Radial load(10mm from flange) | ≦ 10N |
| Shaft axial load | ≦ 6N |
| Radial play of shaft | ≦ 0.04 mm |
| Thrust play of shaft | ≦ 0.3 mm |
| Backlash,at no-load | ≦ 3° |
| Shaft press fit force,max | ≦ 50N |
| Module | 0.4 | |
| No .of teeth | 11 | 17 |
| Pressure angle | 20° | |
| Hole diameter | 常规 ø 2.02 可提供ø 2.32 | |
| Reduction ratio | 1/5.2 1/27 1/139 1/720 1/3730 | 1/3.7 1/14 1/19 1/51 1/71 1/100 1/189 1/264 1/369 1/516 1981 1/1370 1/1913 1/2671 |

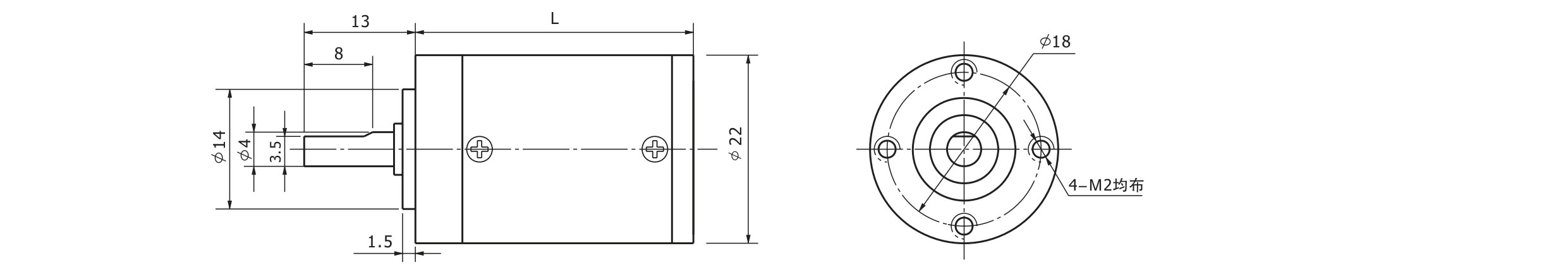

| Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
| 1/3.7 1/5.2 | 1/3.71 1/5.18 | 0.1N.m | 0.3N.m | 90% | 26.0±0.5 | 30 |
| 1/14 1/19 1/27 | 1/13.76 1/19.22 1/26.83 | 0.2N.m | 0.6N.m | 81% | 28.0±0.5 | 34 |
| 1/51 1/71 1/100 1/139 | 1/51.06 1/71.30/99.55 1/138.99 | 0.3N.m | 0.9N.m | 73% | 32.5±0.5 | 42 |
1/189 1/264 1/369 1/516 1/720 | 1/189.45 1/264.52 1/369.32 1/515.66 1/719.98 | 0.4N.m | 1.2N.m | 66% | 37.5±0.5 | 45 |
1/981 1/1370 1/1913 1/2671 1/3730 | 1/981.35 1/1370.2 1/1913.1 1/2671.1 1/3729.5 | 0.5N.m | 1.5N.M | 59% | 42.0±0.5 | 50 |
| Housing material | Metal |
| Bearing at output | Sleeve earings |
| Radial load(10mm from flange) | ≦ 10N |
| Shaft axial load | ≦ 6N |
| Radial play of shaft | ≦ 0.04 mm |
| Thrust play of shaft | ≦ 0.3 mm |
| Backlash,at no-load | ≦ 3° |
| Shaft press fit force,max | ≦ 50N |
| Module | 0.4 | |
| No .of teeth | 11 | 17 |
| Pressure angle | 20° | |
| Hole diameter | 常规 ø 2.02 可提供ø 2.32 | |
| Reduction ratio | 1/5.2 1/27 1/139 1/720 1/3730 | 1/3.7 1/14 1/19 1/51 1/71 1/100 1/189 1/264 1/369 1/516 1981 1/1370 1/1913 1/2671 |
| Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
| 1/3.7 1/5.2 | 1/3.71 1/5.18 | 0.1N.m | 0.3N.m | 90% | 26.0±0.5 | 30 |
| 1/14 1/19 1/27 | 1/13.76 1/19.22 1/26.83 | 0.2N.m | 0.6N.m | 81% | 28.0±0.5 | 34 |
| 1/51 1/71 1/100 1/139 | 1/51.06 1/71.30/99.55 1/138.99 | 0.3N.m | 0.9N.m | 73% | 32.5±0.5 | 42 |
1/189 1/264 1/369 1/516 1/720 | 1/189.45 1/264.52 1/369.32 1/515.66 1/719.98 | 0.4N.m | 1.2N.m | 66% | 37.5±0.5 | 45 |
1/981 1/1370 1/1913 1/2671 1/3730 | 1/981.35 1/1370.2 1/1913.1 1/2671.1 1/3729.5 | 0.5N.m | 1.5N.M | 59% | 42.0±0.5 | 50 |
