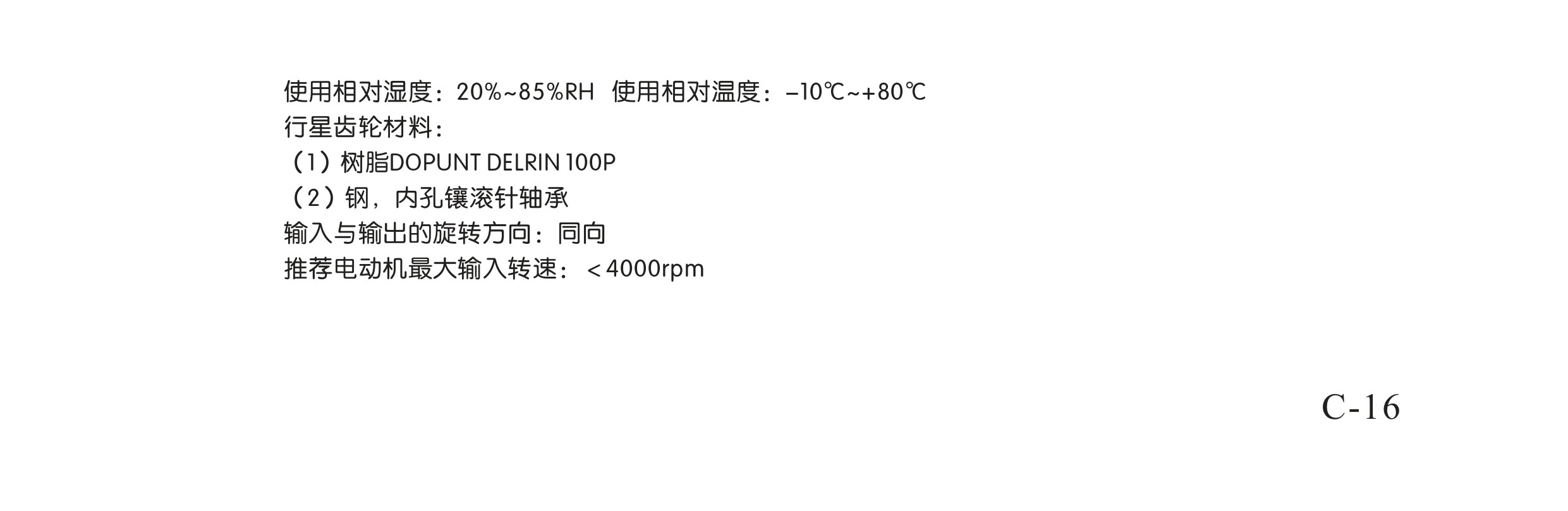

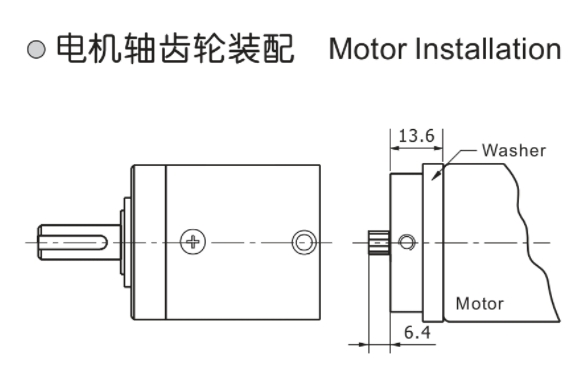

| Housing material | Metal |
| Bearing at output | Sleeve earings |
| Radial load(10mm from flange) | ≦ 100 N |
| Shaft axial load | ≦ 70 N |
| Radial play of shaft | ≦ 0.04 mm |
| Thrust play of shaft | ≦ 0.3 mm |
| Backlash,at no-load | ≦ 3° |
| Shaft press fit force,max | ≦ 200N |
| Module | 0.5 | |
| No .of teeth | 16 | 22 |
| Pressure angle | 20° | |
| Hole diameter | ø3.16 ø3.98 ø4.48 ø4.98 | |
| Reduction ratio | 1/24 1/116 | 1/15 1/19 1/56 1/71 1/91 |

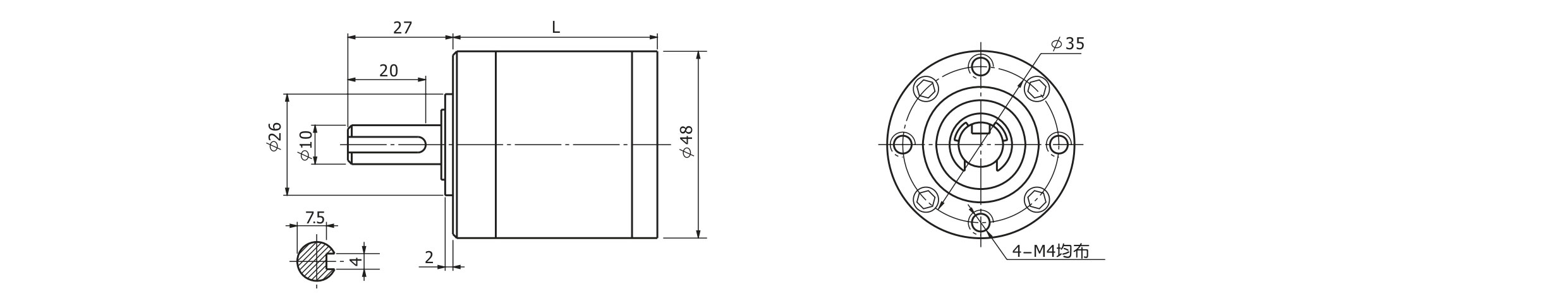

| Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
| 1/15 1/19 1/24 | 1/14.58 1/18.61 1/23.77 | 2N.m | 6N.m | 81% | 52.5±0.5 | 426 |
1/56 1/71 1/91 1/116 | 1/55.66 1/71.06 1/90.74 1/115.86 | 5N.m | 15N.m | 73% | 52.5±0.5 | 557 |
