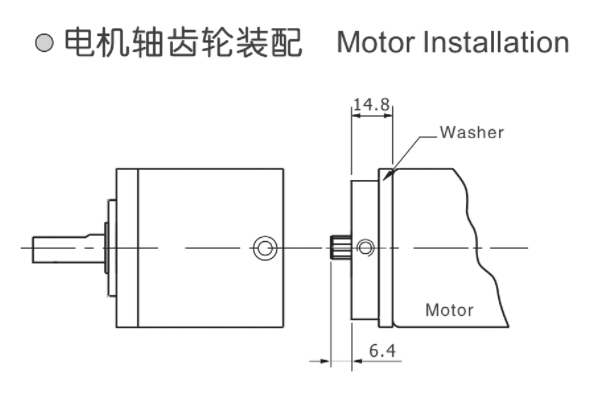

| Housing material | Metal |
| Bearing at output | Sleeve earings |
| Radial load(10mm from flange) | ≦ 200 N |
| Shaft axial load | ≦ 100 N |
| Radial play of shaft | ≦ 0.04 mm |
| Thrust play of shaft | ≦ 0.3 mm |
| Backlash,at no-load | ≦ 3° |
| Shaft press fit force,max | ≦ 300N |
| Module | 1.0 | |
| No .of teeth | 12 | 15 |
| Pressure angle | 20° | |
| Hole diameter | ø6.01 | |
| Reduction ratio | 1/4.3 1/18 1/77 1/326 | 1/3.6 1/13 1/15 1/47 1/55 1/65 1/168 1/198 1/234 1/276 |

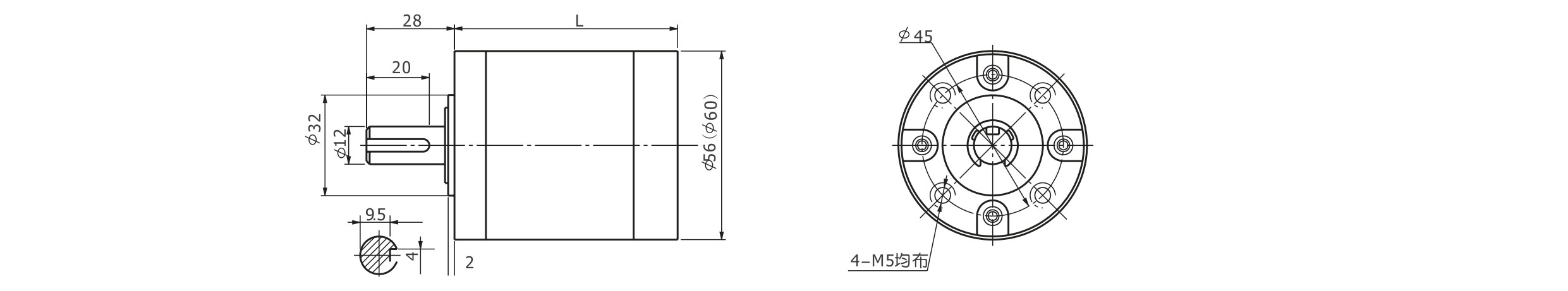

| Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
1/3.6 1/4.3 | 1/3.6 1/4.25 | 1.5N.m | 4.5N.m | 90% | 52.0±0.5 | 660 |
1/13 1/15 1/18 | 1/12.96 1/15.30 1/18.06 | 5N.m | 15N.m | 81% | 52.0±0.5 | 745 |
1/47 1/55 1/65 1/77 | 1/46.66 1/55.08 1/65.03 1/76.77 | 10N.m | 30N.m | 73% | 63.5±0.5 | 922 |
1/168 1/198 1/234 1/276 1/326 | 1/167.96 1/198.29 1/234.09 1/276.36 1/326.25 | 15N.m | 45N.m | 66% | 74.5±0.5 | 1098 |
| 1/168 1/198 1/234 1/276 1/326 | 1/167.96 1/198.29 1/234.09 1/276.36 1/326.25 | 30N.m | 90N.m | 66% | 83.0±0.5 | 1277 |
