Planetary Gear head 24JX5K

Availability:
Quantity:
Housing material Metal
Bearing at output Sleeve earings
Radial load(10mm from flange) ≦ 10 N
Shaft axial load ≦ 6 N
Radial play of shaft ≦ 0.04 mm
Thrust play of shaft ≦ 0.3 mm
Backlash,at no-load ≦ 3°
Shaft press fit force,max ≦ 50N

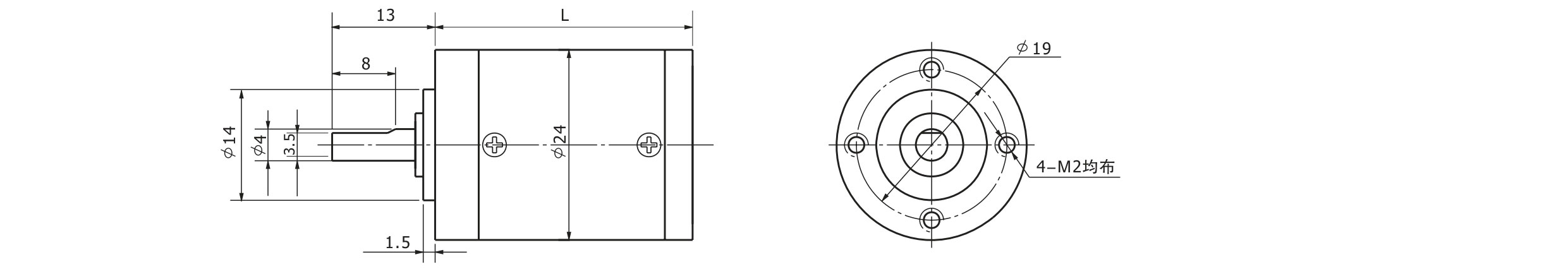

c-3_page-0001_02c-5_page-0001_04c-3_page-0001_04

Module 0.4
No .of teeth 11 17
Pressure angle 20°
Hole diameter 常规 ø 2.02 可提供ø 2.32
Reduction ratio

1/5.2  1/27

1/139  1/720

1/3730

1/3.7 1/14 1/19 1/51 1/71 1/100 1/189 1/264 1/369 1/516 1/981 1/1370 1/1913 1/2671

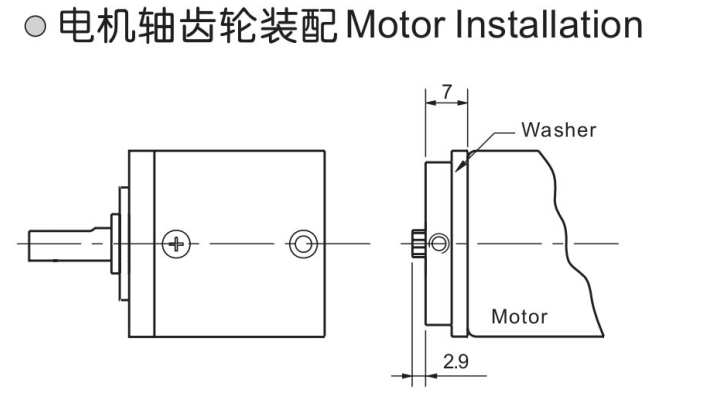

微信截图_20240603165425

c-3_page-0001_06

Reduction ratio Exact reduction ratio Reted tolerance torque Max momentary tolerance torque Efficiency

L

(mm)

Weight(g)
1/3.7 1/5.2 1/3.71 1/5.18 0.1N.m 0.3N.m 90% 26.0±0.5 35
1/14 1/19 1/27

1/13.76 1/19.22

1/26.83

0.2N.m 0.6N.m 81% 28.0±0.5 39
1/51 1/71 1/100 1/139

1/51.06

1/71.30

1/99.55

1/138.99

0.3N.m 0.9N.m 73% 32.5±0.5 47

1/189 1/264

1/369 1/516

1/720

1/189.45

1/264.52

1/369.32

1/515.66

1/719.98

0.4N.m 1.2N.m 66% 37.5±0.5 58
1/981 1/1370 1/1913 1/2671 1/3730

1/981.35

1/1370.2

1/1913.1

1/2671.1

1/3729.5

0.5N.m 1.5N.m 59% 42.0±0.5 67
