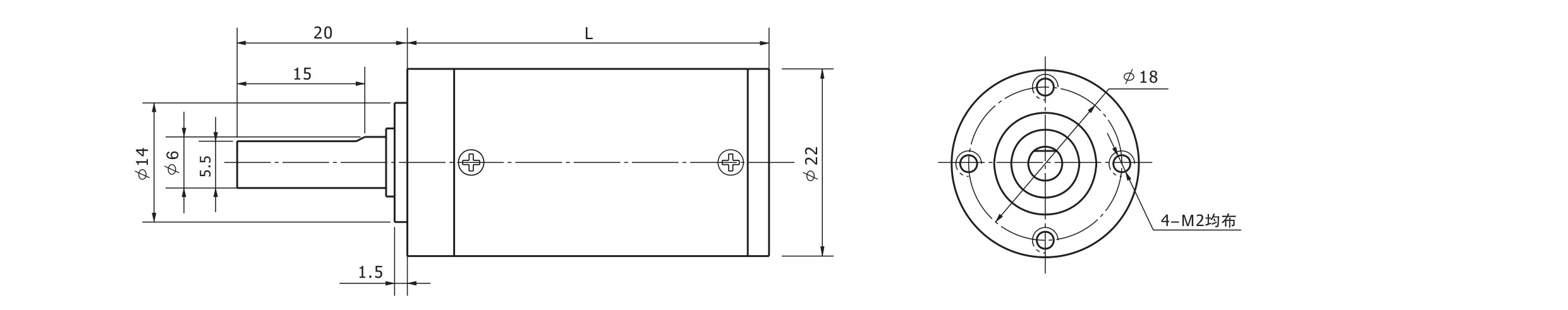

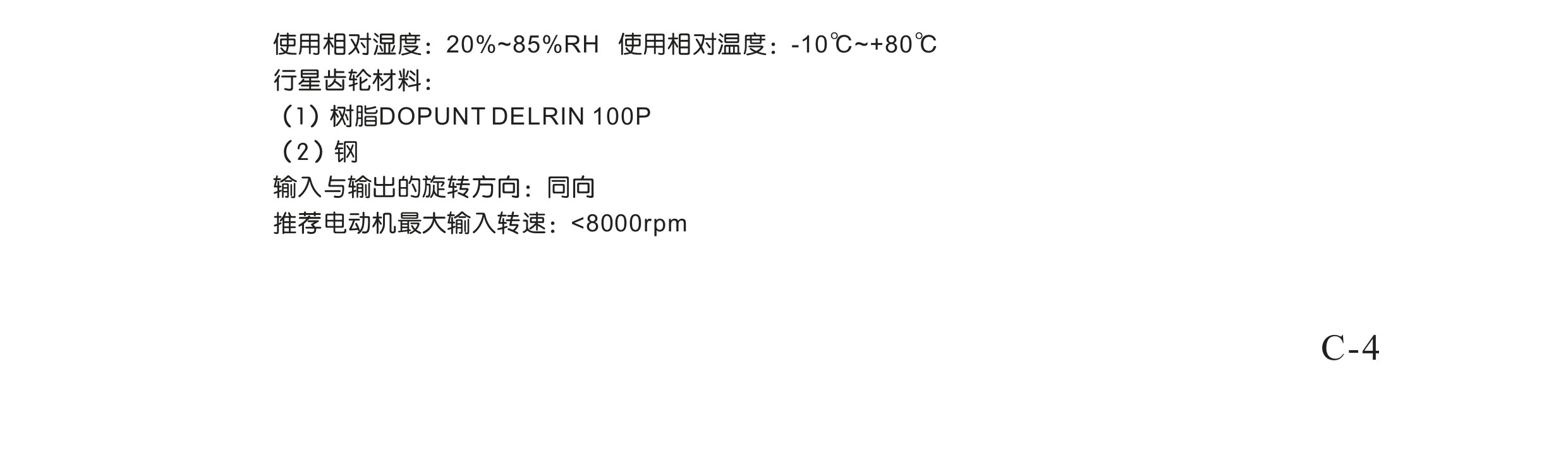

Housing material | Metal |
Bearing at output | Sleeve earings |
Radial load(10mm from flange) | ≦ 15N |
Shaft axial load | ≦ 9N |
Radial play of shaft | ≦ 0.04 mm |
Thrust play of shaft | ≦ 0.3 mm |
Backlash,at no-load | ≦ 3° |
Shaft press fit force,max | ≦ 60N |
Module | 0.4 | |
No .of teeth | 11 | 17 |
Pressure angle | 20° | |
Hole diameter | 常规 ø 2.02 可提供ø 2.32 | |
Reduction ratio | 1/5.2 1/27 1/139 1/720 | 1/3.7 1/14 1/19 1/51 1/71 1/100 1/189 1/264 1/369 1/516 |
Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
1/3.7 1/5.2 | 1/3.71 1/5.18 | 0.1N.m | 0.3N.m | 90% | 26.0±0.5 | 35 |
1/14 1/19 1/27 | 1/13.76 1/19.22 1/26.83 | 0.2N.m | 0.6N.m | 81% | 34.5±0.5 | 44 |
1/51 1/71 1/100 1/139 | 1/51.06 1/71.30 1/99.55 1/138.99 | 0.5N.m | 1.5N.m | 73% | 42.5±0.5 | 53 |
1/189 1/264 1/369 1/516 1/720 | 1/189.45 1/264.52 1/369.32 1/515.66 1/719.98 | 1N.m | 3N.m | 66% | 51±0.5 | 63 |
Housing material | Metal |
Bearing at output | Sleeve earings |
Radial load(10mm from flange) | ≦ 15N |
Shaft axial load | ≦ 9N |
Radial play of shaft | ≦ 0.04 mm |
Thrust play of shaft | ≦ 0.3 mm |
Backlash,at no-load | ≦ 3° |
Shaft press fit force,max | ≦ 60N |
Module | 0.4 | |
No .of teeth | 11 | 17 |
Pressure angle | 20° | |
Hole diameter | 常规 ø 2.02 可提供ø 2.32 | |
Reduction ratio | 1/5.2 1/27 1/139 1/720 | 1/3.7 1/14 1/19 1/51 1/71 1/100 1/189 1/264 1/369 1/516 |
Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
1/3.7 1/5.2 | 1/3.71 1/5.18 | 0.1N.m | 0.3N.m | 90% | 26.0±0.5 | 35 |
1/14 1/19 1/27 | 1/13.76 1/19.22 1/26.83 | 0.2N.m | 0.6N.m | 81% | 34.5±0.5 | 44 |
1/51 1/71 1/100 1/139 | 1/51.06 1/71.30 1/99.55 1/138.99 | 0.5N.m | 1.5N.m | 73% | 42.5±0.5 | 53 |
1/189 1/264 1/369 1/516 1/720 | 1/189.45 1/264.52 1/369.32 1/515.66 1/719.98 | 1N.m | 3N.m | 66% | 51±0.5 | 63 |
