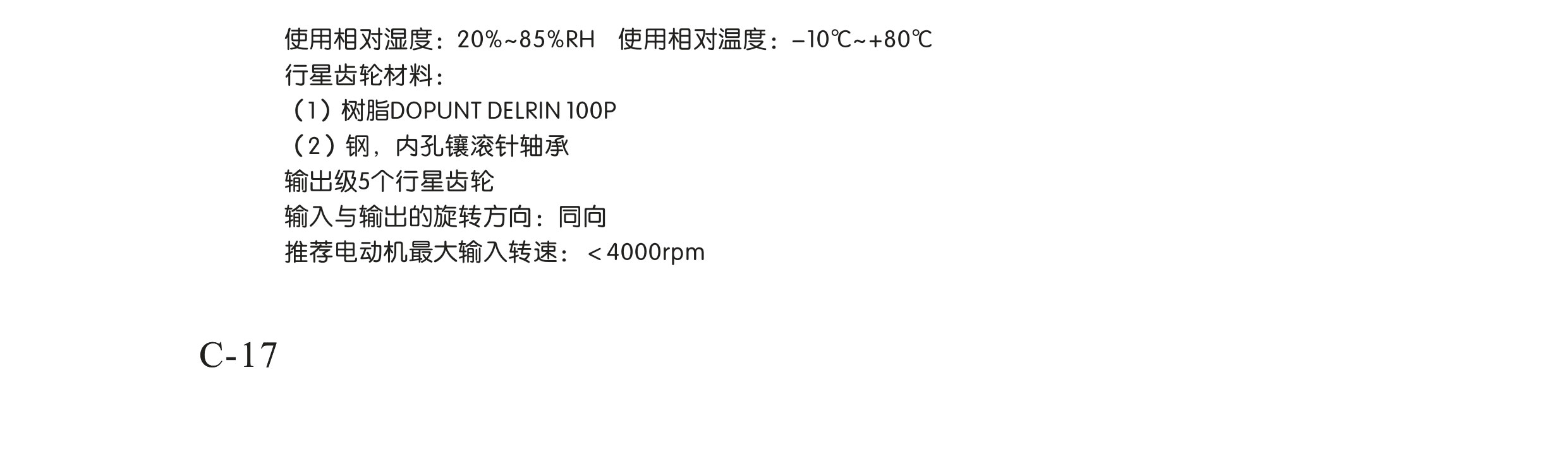

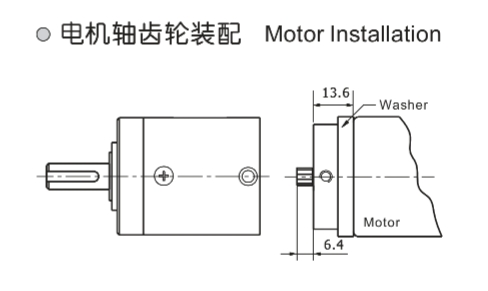

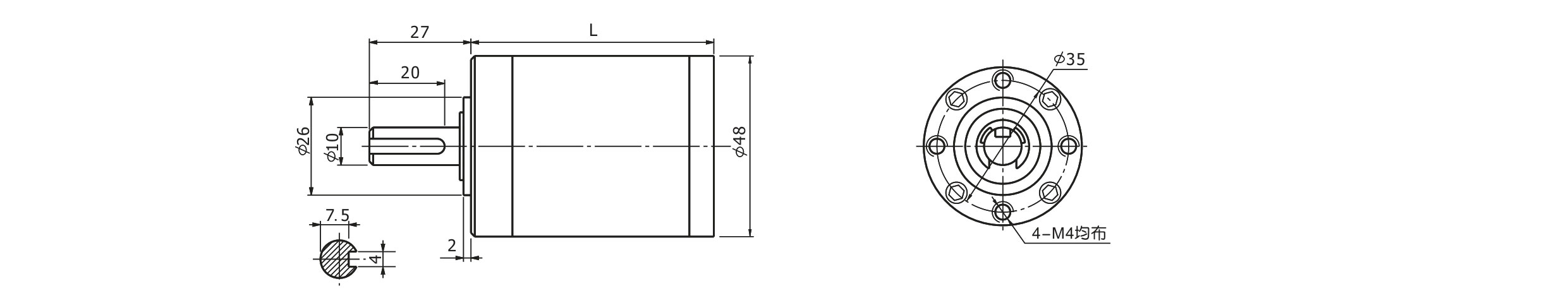

| Housing material | Metal |
| Bearing at output | Sleeve earings |
| Radial load(10mm from flange) | ≦ 40 N |
| Shaft axial load | ≦ 30 N |
| Radial play of shaft | ≦ 0.04 mm |
| Thrust play of shaft | ≦ 0.3 mm |
| Backlash,at no-load | ≦ 3° |
| Shaft press fit force,max | ≦ 100N |
| Module | 0.5 | |
| No .of teeth | 16 | 22 |
| Pressure angle | 20° | |
| Hole diameter | ø3.16 ø3.98 ø4.48 ø4.98 | |
| Reduction ratio | 1/515 1/2510 | 1/247 1/316 1/403 1/944 1/1206 1/1540 |
| Reduction ratio | Exact reduction ratio | Reted tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight(g) |
1/247 1/316 1/403 1/515 | 1/247.33 1/315.81 1/403.24 1/514.87 | 10N.m | 30N.m | 66% | 64.5±0.5 | 688 |
1/944 1/1206 1/1540 1/2150 | 1/944.32 1/1205.75 1/1539.55 1/2509.99 | 20N.m | 60N.m | 59% | 74.5±0.5 | 798 |
