BLDC Planetary Geared Motor 36JX30K-W2838

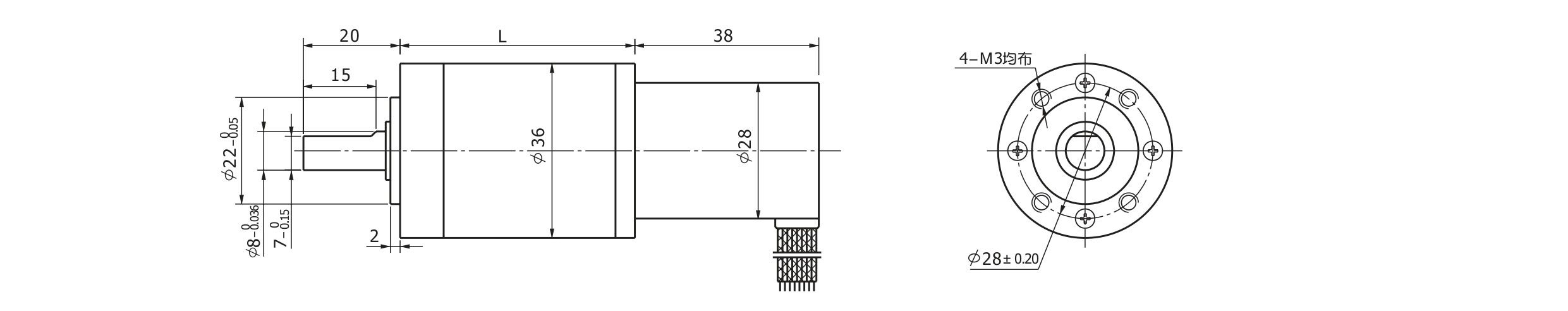

b-03-BLDC-Planetary-Geared-Motor-36JX30K-W2838_page-0001_02

b-02-BLDC-Planetary-Geared-Motor-28JX20K-W2838_page-0001_03

Type

Ratd voltage

(VDC)

No-load speed

(r/min)

No-load current

(mA)

Rated speed

(r/min)

Rated torque

(mN.m)

Output

power

(W)

Biggest torque

(mN.m)

28ZWN38-2450

5000

100

3600

2.9

28ZWN38-2460

6000

100

4200

3.4

b-03-BLDC-Planetary-Geared-Motor-36JX30K-W2838_page-0001_05

Redution ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	31.5	31.5	38.5	38.5	38.5	48.5	48.5	48.5	48.5	55.5	55.5	55.5	55.5	55.5
No-load speed r/min	1348	965	357	263	185	98	70	50	36	26	19	14	9.7	6.9
Rated speed r/min	943	676	250	184	130	69	49	35	25	19	13	9.5	6.8	5.4
Rated torque N.m	0.03	0.04	0.09	0.12	0.17	0.3	0.41	0.58	0.81	1	1.4	1.9	2.7	3
Max.permissible load in a short time N.m	0.9	0.9	3	3	3	6	6	6	6	9	9	9	9	9

b-03-BLDC-Planetary-Geared-Motor-36JX30K-W2838_page-0001_07

Redution ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	31.5	31.5	38.5	38.5	48.5	48.5	48.5	48.5	48.5	55.5	55.5	55.5	55.5	55.5
No-load speed r/min	1617	1158	429	316	222	118	85	60	43	32	23	16	12	8.3
Rated speed r/min	1132	811	300	221	156	82	59	42	30	22	16	11	8.1	6.4
Rated torque N.m	0.03	0.04	0.09	0.12	0.17	0.3	0.41	0.58	0.81	1	1.4	1.9	2.7	3
Max.permissible load in a short time N.m	0.9	0.9	3	3	3	6	6	6	6	9	9	9	9	9
