1.Motor rotation can be either CW or CCW as needed. And motor can also adjust the speed.
2.Planetary gear hole is equipped with ball bearing for extended life.
3.The shaft is equipped with 5pcs planetary gears for increased load capacity.
4.Suitable for occasions requiring less maintenance and low electromagnetic interference.
| Type | Ratd voltage (VDC) | No-load speed (r/min) | No-load current (mA) | Rated speed (r/min) | Rated torque (mN.m) | Output power (W) | Biggest torque (mN.m) |
| 42ZWN60-2420 | 24 | 2000 | 0.3 | 1400 | 0.06 | 4.8 | 0.18 |
| 42ZWN60-2430 | 24 | 3000 | 0.3 | 2100 | 0.06 | 15.7 | 0.18 |
| Redution ratio | 247 | 316 | 403 | 515 |
| Number of gear trains | 4 | 4 | 4 | 4 |

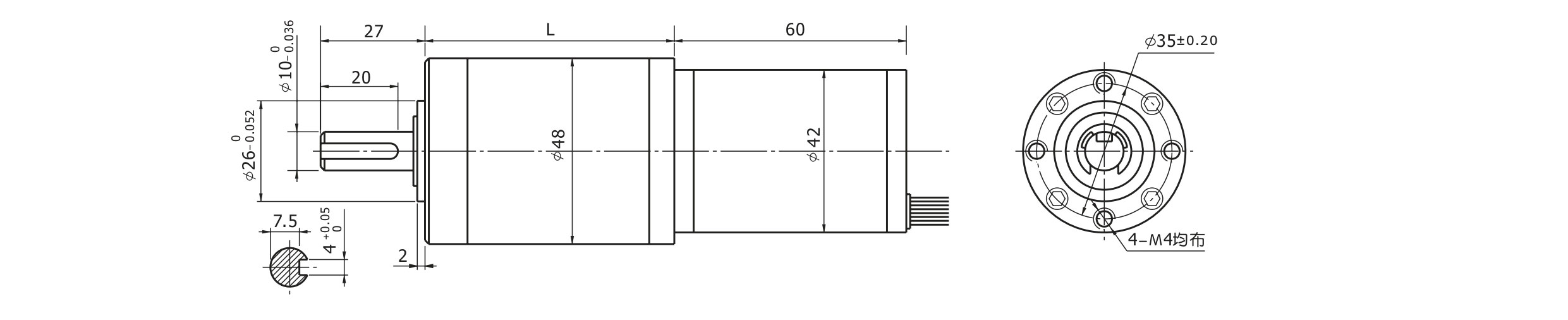

| Length(L) mm | 64.5 | 64.5 | 64.5 | 64.5 |
| No-load speed r/min | 12 | 9.5 | 7.4 | 5.8 |
| Rated speed r/min | 8.5 | 6.6 | 5.2 | 4.1 |
| Rated torque N.m | 9.8 | 12.5 | 16 | 20 |
| Max.permissible load in a short time N.m | 60 | 60 | 60 | 60 |
| Redution ratio | 944 | 1206 | 1540 | 2510 |
| Number of gear trains | 5 | 5 | 5 | 5 |
| Length(L) mm | 74.5 | 74.5 | 74.5 | 74.5 |
| No-load speed r/min | 2.1 | 1.7 | 1.3 | 0.8 |
| Rated speed r/min | 1.8 | 1.4 | 1.1 | 0.7 |
| Rated torque N.m | 20 | 20 | 20 | 20 |
| Max.permissible load in a short time N.m | 60 | 60 | 60 | 60 |
