| Type | Ratd voltage (VDC) | No-load speed (r/min) | No-load current (mA) | Rated speed (r/min) | Rated torque (mN.m) | Output power (W) | Biggest torque (mN.m) |
| 57ZWN55-2420 | 24 | 2000 | 200 | 1300 | 0.085 | 10 | 1.20 |
| 57ZWN55-2430 | 24 | 3000 | 400 | 2250 | 0.110 | 25 | 2.00 |
| 57ZWN55-2441 | 24 | 4100 | 120 | 3300 | 0.130 | 43 | 2.25 |

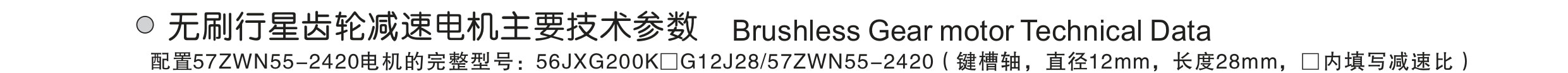

| Redution ratio | 13 | 15 | 18 | 32 | 47 | 55 | 65 | 76 | 168 | 198 | 234 | 276 | 326 |
| Number of gear trains | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |

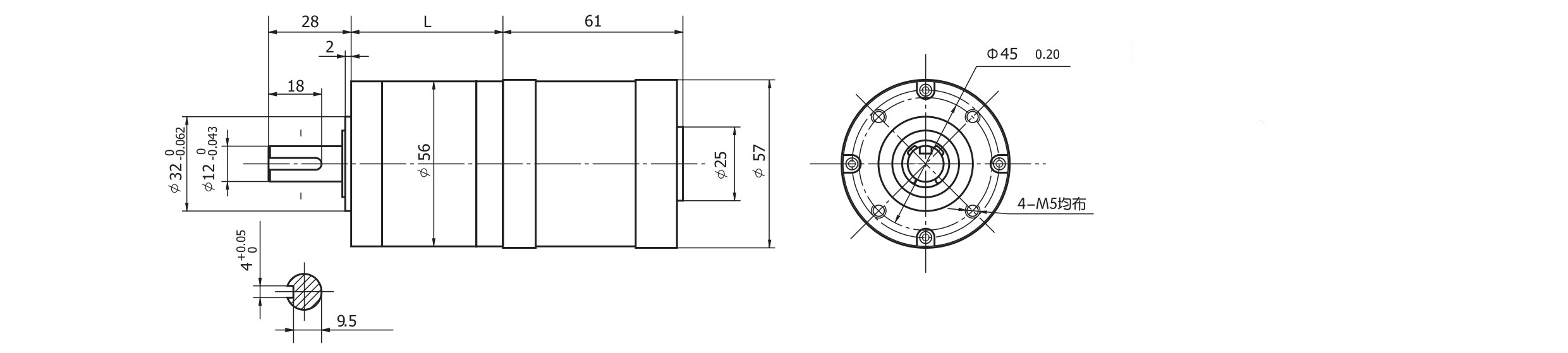

| Length(L) mm | 46.0 | 46.0 | 46.0 | 57.5 | 57.5 | 57.5 | 57.5 | 57.5 | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| No-load speed r/min | 556 | 471 | 154 | 133 | 111 | 63 | 43 | 36 | 31 | 26 | 12 | 10 | 9 |
| Rated speed r/min | 361 | 306 | 100 | 87 | 72 | 41 | 28 | 24 | 20 | 17 | 7.7 | 6.6 | 5.6 |
| Rated torque N.m | 0.3 | 0.3 | 0.9 | 1.0 | 1.2 | 2.2 | 2.9 | 3.4 | 4.0 | 4.7 | 9.4 | 11 | 13 |
| Max.permissible load in a short time N.m | 10 | 10 | 10 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 40 |
| Redution ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 | 55 | 65 | 76 | 168 | 198 | 234 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Length(L) mm | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 57.5 | 57.5 | 57.5 | 57.5 | 57.5 | 68.5 | 68.5 | 68.5 |
| No-load speed r/min | 833 | 706 | 231 | 200 | 167 | 94 | 64 | 55 | 46 | 39 | 18 | 15 | 13 |
| Rated speed r/min | 625 | 529 | 173 | 150 | 125 | 70 | 48 | 41 | 35 | 30 | 13 | 11 | 9.6 |
| Rated torque N.m | 0.4 | 0.4 | 1.2 | 1.3 | 1.6 | 2.9 | 3.8 | 4.4 | 5.2 | 6.1 | 12 | 14 | 17 |
| Max.permissible load in a short time N.m | 3 | 3 | 10 | 10 | 10 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 40 |
| Redution ratio | 3.6 | 4.25 | 13 | 15 | 18 | 32 | 47 | 55 | 65 | 76 | 168 | 198 | 234 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Length(L) mm | 46.0 | 46.0 | 46.0 | 46.0 | 46.0 | 57.5 | 57.5 | 57.5 | 57.5 | 57.5 | 68.5 | 68.5 | 68.5 |
| No-load speed r/min | 1139 | 965 | 315 | 273 | 228 | 128 | 87 | 75 | 63 | 54 | 24 | 21 | 18 |
| Rated speed r/min | 917 | 776 | 254 | 220 | 183 | 103 | 70 | 60 | 51 | 43 | 20 | 17 | 14 |
| Rated torque N.m | 0.4 | 0.5 | 1.4 | 1.6 | 1.9 | 3.4 | 4.5 | 5.2 | 6.2 | 7.2 | 14 | 17 | 20 |
| Max.permissible load in a short time N.m | 3 | 3 | 10 | 10 | 10 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 40 |
