DC Geared Motor Z2D 6-10W

Availability:
Quantity:
Inquire Add to Basket

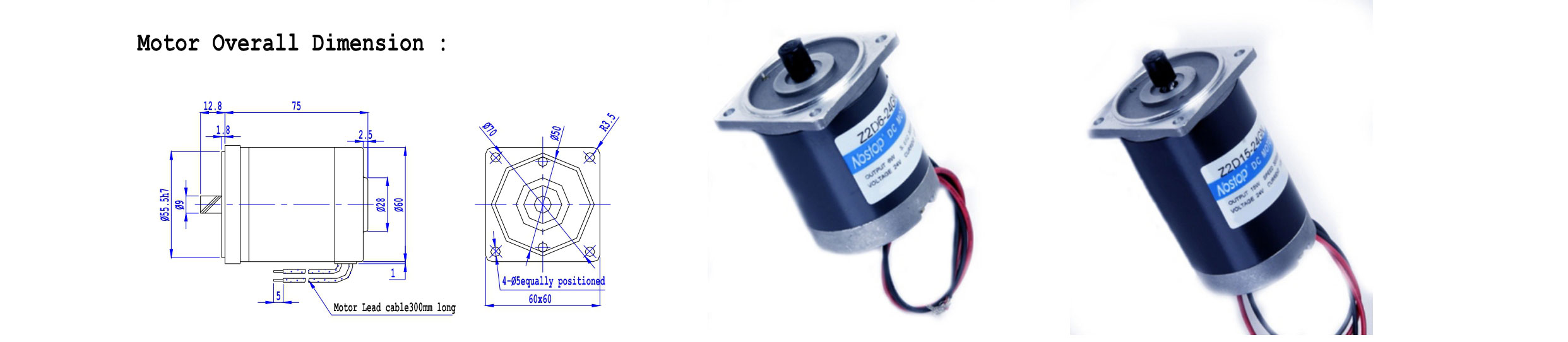

48-Z2D-6-10W_page-0001_02

List of Motor Caracteristics

Model
 Voltage Power No-load Parameters
 Load parameters Brush Life Motor Weight
 Remarks
Speed Current
 Spedd Torque Current
(V) (W) (RPM)
 (A)
 (RPM) (kgf.cm) (A) (H) (kg
Z2D06-12 12 6 3200 0.6 2950 0.2 0.8 2000 0.6
Z2D06-24 24 6 3200 0.3 2950 0.2 0.5 2000 0.6
Z2D06-90 90 6 3200 0.2 2800 0.2 0.3 2000 0.6
Z2D10-12 12 10 3200 1.0 2800 0.35 2.0 2000 0.7
Z2D10-24 24 10 3200 0.5 3000 0.35 0.9 2000 0.7
Z2D10-90 90 10 3200 0.3 2800 0.35 0.6 2000 0.7

Overall Dimension of Gearbox

48-Z2D-6-10W_page-0001_06_939_348


 Gear Ratio Length L(mm) G.W.(Kgs)
Gearbox 1:3~1:18 32 0.24
1:20~1:50 42 0.30
1:60~1:200 0.33

Allowable Torque on Gearbox

Model of Geabox:2GN K

Model Gear Ratio
3 3.6 5
 6 7.5 9 10 12.5 15 18
 20 25 30 36 40 50
 60

Z2D06-24


Z2D10-24

 Output  Speed RPM 1067 899
 640 533 427 356 320 256 213 178 260 128 107 89 80 64 53
Permitted Torque N.m 0.04 0.05 0.07 0.09 0.11 0.13 0.15 0.18 0.22 0.26 0.26 0.33 0.39 0.47 0.52 0.65 0.71
kgf.cm 0.44 0.53 0.74 0.89 1.11 1.33 1.48 1.85 2.22 2.66 2.68 3.33 4.00 4.80 5.34 6.67

7.24
Model Gear Ratio
75 90 100 120 150 180 200

Z2D06-24


Z2D10-24

 Output  Speed r/min 43 36 32 27 21 18 16
Permitted Torque N.m 0.89 1.06 1.18 1.42 1.77 2.13 2.36
kgf.cm 9.04 10.85 12.06 14.47 18.09 21.71 24.12

Capacitor  / Wiring Diagram

48-Z2D-6-10W_page-0001_10
