| Gear Reduction Ratio | Series 1 | 31.25 | 78.125 | 195.3125 | 488.28125 |
| Series 2 | 25 | 32.5 | 156.25 | 390.625 | |
| Series 3 | 125 | 250 | |||

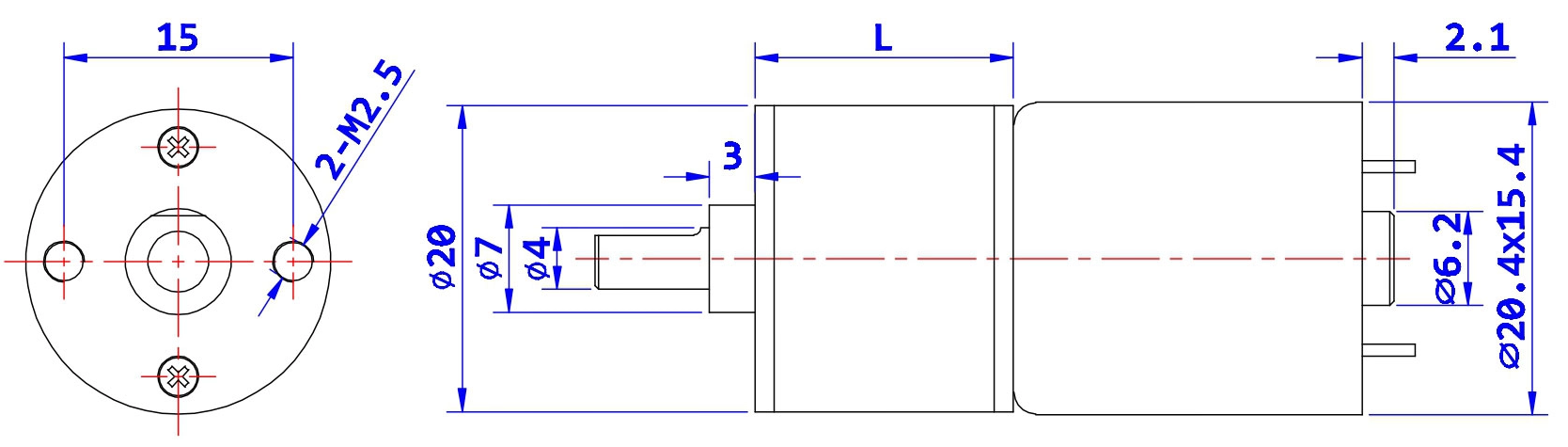

| Gearbox Length (L) | 16 | 17.5 | 19 | 20.5 | |
Brief Introduction:
These are a series of motors based on the round, complete sealed gearbox diameter of Ø20mm. Gearbox length can be increased or decreased according to different gear reduction ratio.Motor can be any type but most popular motors are those that the diameter is approx. Ø20mm. Gearbox spindle outputs from the centre of the gearbox.
Main Applications:
These series of motors can be used for the automatic window curtain,the safe box, the storage box,the robot,the advertising equipment,the audio equipment,the print,the electronic game machine,etc.
| Serial No. | ||
| 20GA130 | 20GA180 | |
| L | 25.1 | 32.1 |
| Serial NO. | Model | Rated | No load | At Maximum Efficiency | At Stall | |||||
| Voltage | Speed | Current | Speed | Torque | Current | Output | Torque | Current | ||
| [VDC] | [rpm] | [mA] | [rpm] | [g.cm] | [mA] | [mW] | [Kg.cm] | [mA] | ||
20GA130 | 07590-31 | 6.0 | 85 | 30 | 66 | 100 | 60 | 70 | 0.4 | 130 |
| 08500-62 | 6.0 | 85 | 60 | 62 | 450 | 170 | 290 | 1.5 | 400 | |
| 16140-62 | 6.0 | 110 | 140 | 85 | 1000 | 450 | 870 | 3.5 | 1300 | |
| 10513-156 | 6.0 | 45 | 70 | 30 | 1200 | 240 | 420 | 4.8 | 800 | |
| 14320-195 | 6.0 | 36 | 60 | 30 | 1200 | 200 | 370 | 6.0 | 800 | |
| 18106-312 | 4.8 | 24 | 150 | 16 | 4000 | 670 | 610 | 11.0 | 1800 | |
| 14230-488 | 6.0 | 15 | 80 | 12 | 3000 | 290 | 370 | 10.0 | 900 | |
| 20GA180 | 10165-25 | 6.0 | 240 | 60 | 205 | 200 | 230 | 400 | 1.3 | 1200 |
| 14200-25 | 18.0 | 620 | 100 | 500 | 700 | 450 | 3800 | 4.5 | 2000 | |
| 16140-62 | 6.0 | 110 | 140 | 85 | 1000 | 450 | 870 | 3.5 | 1300 | |
| 2453-488 | 2.4 | 16 | 180 | 13 | 3600 | 660 | 480 | 12 | 3500 | |
Remarks:
The specifications stated above are just for some typical models.The other specifications are welcome.
