| Gear | Series 1 | 12 | 30 | 75 | 187.5 | 468.75 | 1171.875 |
| Reduction | Series 2 | 9.6 | 24 | 60 | 150 | 375 | 937.5 |
| Ratio | Series 3 | 40 | 120 | 300 | 750 | ||

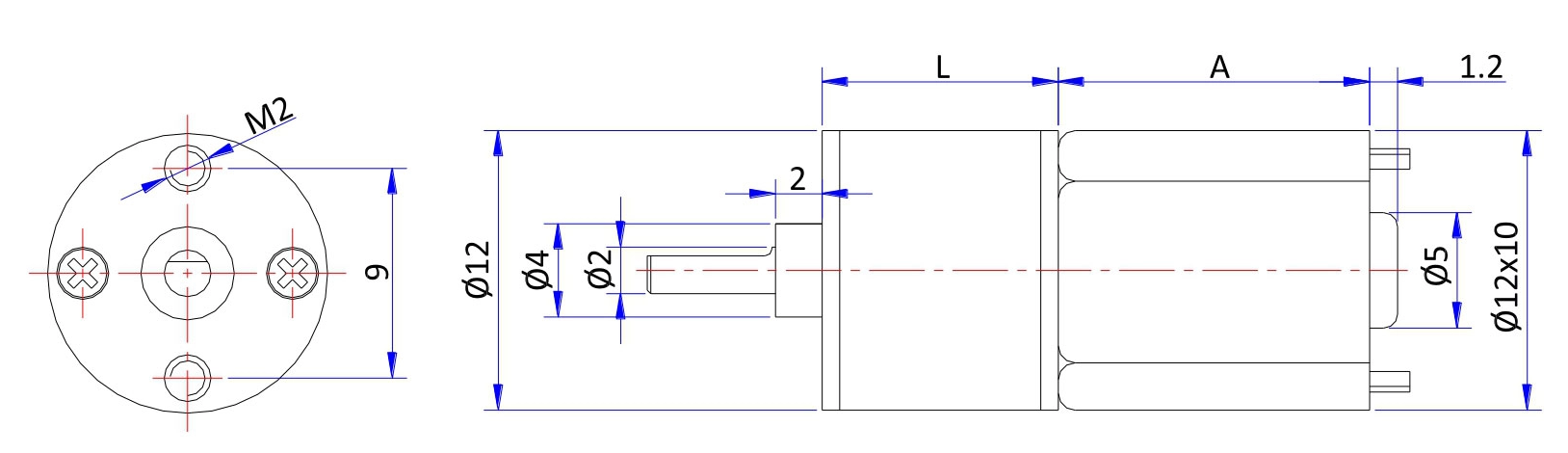

| Gearbox Length (L) | 11.2 | 12.6 | 14 | 16.3 | 17.7 | ||
| (Other reduction ratios are welcome) | |||||||
Brief Introduction:
These area series of motors based on the round, complete sealed gearbox of Ø12mm. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those that the diameter is approx. Ø12mm. Gearbox spindle outputs from the centre of the gearbox.
Main Applications:
Electronic door lock, monitor, optic equipment, printer, medical equipment, etc.
| Serial No. | ||
| 12GA030 | 12GAN30 | |
| A | 15 | 20 |
| Serial NO. | Model | Rated | No load | At Maximum Efficiency | At Stall | |||||
| Voltage | Speed | Current | Speed | Torque | Current | Output | Torque | Current | ||
| [VDC] | [rpm] | [mA] | [rpm] | [g.cm] | [mA] | [mW] | [Kg.cm] | [mA] | ||
12GA030 12GAN30 | 13115-75 | 2.4 | 210 | 120 | 160 | 160 | 350 | 260 | 0.9 | 1150 |
| 13115-150 | 2.4 | 100 | 120 | 90 | 300 | 360 | 270 | 1.6 | 1150 | |
| 10190-200 | 3.0 | 60 | 60 | 48 | 400 | 180 | 200 | 1.8 | 600 | |
| 10190-300 | 3.0 | 40 | 60 | 30 | 750 | 190 | 210 | 2.5 | 600 | |
| 09210-150 | 2.5 | 35 | 30 | 25 | 250 | 700 | 65 | 1.2 | 240 | |
| 09210-200 | 2.5 | 25 | 30 | 20 | 320 | 700 | 65 | 1.5 | 240 | |
| 09210-300 | 2.5 | 17 | 30 | 12 | 500 | 700 | 60 | 2.3 | 240 | |
Remarks:
The specifications stated above are just some basic models. The other specifications are welcome.
