Nostop DC Geared Motor 37GB Series

Availability:

Quantity:



Inquire Add to Basket

Product Description

Gear Stages	2	3	4	5	6	7
Gear Reduction Ratio	10	20	50	150	300	750
		30	60	180	350	900
			70	210	450	1050
			90	270	630	1350
Gearbox Length (L=mm)	19	21.5	24	26.5	29	31.5

Main Applications:

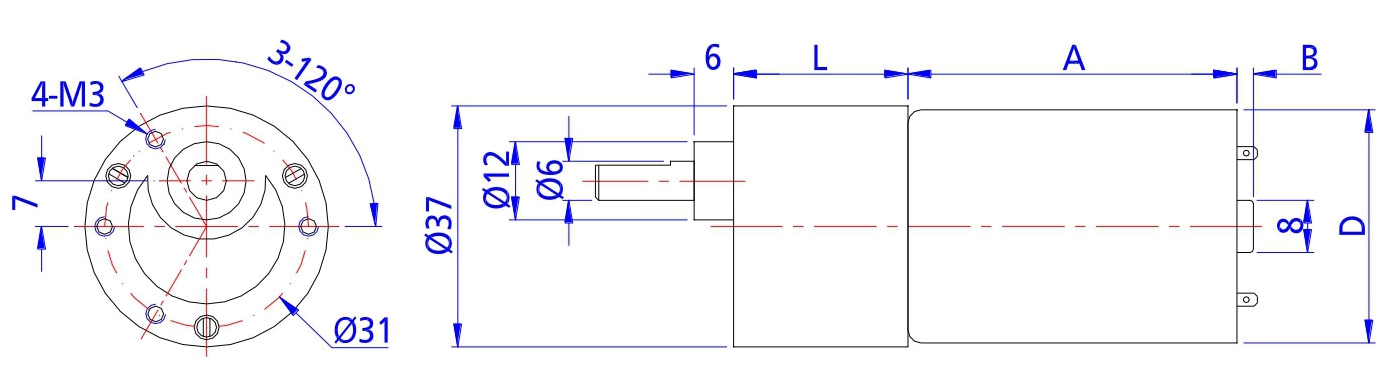

Bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, advertising equipment, medical instrument,analysisinstrument,electronicgamemachine,etc. P06-Nostop-DC-Geared-Motor-37GB-Series_page-0001_02_1399_371

	37GB520	37GB528	37GB540
A	22.7	29.1	50
B	3.2	1.9	3
C	Ø8	Ø8	Ø10
D	Ø33	Ø33	Ø35.8

Serial NO.	Model	Rated	No load		At Maximum Efficiency				At Stall
		Voltage	Speed	Current	Speed	Torque	Current	Output	Torque	Current
		[VDC]	[rpm]	[mA]	[rpm]	[Kg.cm]	[A]	[W]	[Kg.cm]	[A]
37GB520	13490-50	24	180	0.050	145	2	0.220	3.0	10	1.00
	11750-490	24	12	0.045	11	10	0.100	1.2	40	0.70
	11750-270	12	11	0.025	9	6	0.100	0.5	30	0.40
	13490-70	12	60	0.050	48	2	0.150	1.0	10	0.60
	17320-70	12	96	0.100	80	2	0.320	1.6	12	2.00
	20260-30	12	280	0.100	230	1.5	0.600	3.5	8	2.60
	25150-50	6	152	0.170	125	1.5	0.850	1.9	8	3.50
	17410-90	12	60	0.050	48	4	0.320	2.0	18	1.50
	11750-50	24	125	0.045	100	2	0.150	2.1	10	0.64
37GB528	13450-10	24	780	0.050	660	0.5	0.250	3.5	3	0.60
	15330-270	24	20	0.050	18	8	0.150	1.5	60	0.80
	11660-270	24	11	0.040	10	5	0.080	0.5	40	0.50
	15400-150	24	32	0.050	25	9	0.190	2.3	28	0.70
	15400-30	24	165	0.050	145	1	0.110	1.5	9	0.70
	17290-30	12	195	0.080	150	2	0.400	3.1	8	1.50
	17290-90	12	195	0.080	150	2	0.400	3.1	22	1.50
	17290-150	12	40	0.070	30	9	0.400	3.1	22	1.50
	18250-70	12	100	0.090	82	3	0.400	2.5	18	1.90
37GB540	21098-210	12	17	0.130	13.5	20	0.450	2.4	70	4.00
	21098-50	24	140	0.150	130	5	0.520	6.0	16	4.00
	14198-30	24	110	0.100	85	4.5	0.150	4.2	16	1.20
	27068-70	12	70	0.200	57	5	0.500	3.0	50	4.20
	19138-30	24	165	0.120	115	3.5	0.780	4.1	25	3.10
