| Gear Reduction Ratio | Series 1 | 50 | 150 | 450 | 1350 | 4050 |
| Series 2 | 30 | 100 | 300 | 900 | 2700 | |
| Series 3 | 25 | 75 | 250 | 750 | 2250 | |
| Series 4 | 10 or 15 | 20 | - | - | - | |
| Gearbox Length (L) | 12.8 | 14.2 | 15.6 | 17.9 | 19.3 | |
Brief Introduction:

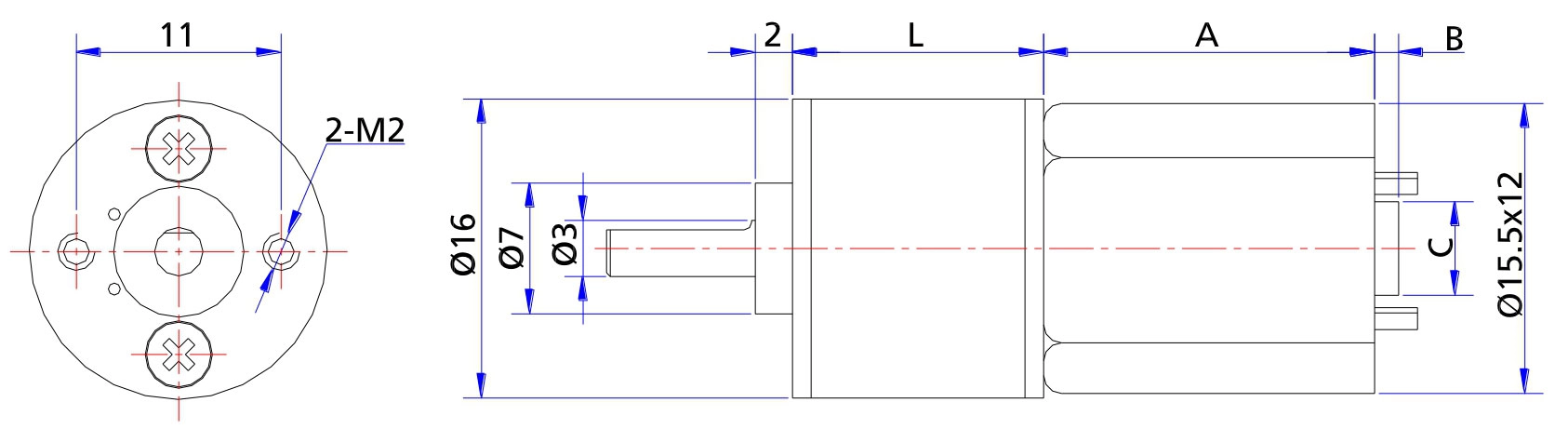

This is a series of motors based on the round, complete sealed gearbox diameter of Ø16mm. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those thatthe diameter is approx. Ø16mm. Gearbox spindle outputs from the centre of the gearbox.
Main Applications:
Monitor, Precision instrument, Mini mechanism, etc.
| Seraial No. | ||
| 16GA030 | 16GA050 | |
| A | 18.6 | 26.9 |
| B | 0.7 | 1.9 |
| C | Ø5 | Ø4.7 |
| Serial NO. | Model | Rated | No load | At Maximum Efficiency | At Stall | |||||
| Voltage | Speed | Current | Speed | Torque | Current | Output | Torque | Current | ||
| [VDC] | [rpm] | [mA] | [rpm] | [g.cm] | [mA] | [mW] | [Kg.cm] | [mA] | ||
16GA030 16GA050 | 10180-100 | 3 | 70 | 60 | 52 | 300 | 170 | 160 | 0.8 | 400 |
| 6 | 140 | 90 | 100 | 600 | 300 | 600 | 1.6 | 800 | ||
| 10180-200 | 6 | 58 | 80 | 46 | 1200 | 290 | 570 | 4.0 | 800 | |
| 10180-250 | 6 | 28 | 70 | 20 | 800 | 170 | 160 | 2.4 | 800 | |
| 08250-100 | 3 | 60 | 50 | 44 | 200 | 120 | 90 | 0.8 | 500 | |
| 09240-30 | 12 | 400 | 50 | 330 | 200 | 170 | 680 | 1.0 | 600 | |
| 09240-50 | 12 | 235 | 50 | 185 | 400 | 170 | 750 | 1.6 | 600 | |
| 07350-200 | 12 | 42 | 40 | 30 | 1600 | 120 | 490 | 4.0 | 400 | |
| 07350-250 | 12 | 32 | 40 | 23 | 1700 | 110 | 420 | 4.0 | 400 | |
| 12125-100 | 6 | 115 | 80 | 92 | 700 | 270 | 600 | 2.8 | 1000 | |
| 12125-150 | 6 | 78 | 80 | 65 | 800 | 240 | 530 | 3.5 | 1000 | |
| 12125-200 | 6 | 58 | 80 | 46 | 1200 | 290 | 570 | 4.5 | 1000 | |
| 14100-200 | 2.4 | 29 | 80 | 13 | * 2000 | 440 | 270 | 2.7 | 800 | |
| 14100-250 | 2.4 | 24 | 80 | 11 | * 2500 | 440 | 280 | 3.8 | 800 | |
Remarks:
The specifications stated above are just for some typical models. The other specifications are welcome.
| Gear Reduction Ratio | Series 1 | 50 | 150 | 450 | 1350 | 4050 |
| Series 2 | 30 | 100 | 300 | 900 | 2700 | |
| Series 3 | 25 | 75 | 250 | 750 | 2250 | |
| Series 4 | 10 or 15 | 20 | - | - | - | |
| Gearbox Length (L) | 12.8 | 14.2 | 15.6 | 17.9 | 19.3 | |
Brief Introduction:
This is a series of motors based on the round, complete sealed gearbox diameter of Ø16mm. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those thatthe diameter is approx. Ø16mm. Gearbox spindle outputs from the centre of the gearbox.
Main Applications:
Monitor, Precision instrument, Mini mechanism, etc.
| Seraial No. | ||
| 16GA030 | 16GA050 | |
| A | 18.6 | 26.9 |
| B | 0.7 | 1.9 |
| C | Ø5 | Ø4.7 |
| Serial NO. | Model | Rated | No load | At Maximum Efficiency | At Stall | |||||
| Voltage | Speed | Current | Speed | Torque | Current | Output | Torque | Current | ||
| [VDC] | [rpm] | [mA] | [rpm] | [g.cm] | [mA] | [mW] | [Kg.cm] | [mA] | ||
16GA030 16GA050 | 10180-100 | 3 | 70 | 60 | 52 | 300 | 170 | 160 | 0.8 | 400 |
| 6 | 140 | 90 | 100 | 600 | 300 | 600 | 1.6 | 800 | ||
| 10180-200 | 6 | 58 | 80 | 46 | 1200 | 290 | 570 | 4.0 | 800 | |
| 10180-250 | 6 | 28 | 70 | 20 | 800 | 170 | 160 | 2.4 | 800 | |
| 08250-100 | 3 | 60 | 50 | 44 | 200 | 120 | 90 | 0.8 | 500 | |
| 09240-30 | 12 | 400 | 50 | 330 | 200 | 170 | 680 | 1.0 | 600 | |
| 09240-50 | 12 | 235 | 50 | 185 | 400 | 170 | 750 | 1.6 | 600 | |
| 07350-200 | 12 | 42 | 40 | 30 | 1600 | 120 | 490 | 4.0 | 400 | |
| 07350-250 | 12 | 32 | 40 | 23 | 1700 | 110 | 420 | 4.0 | 400 | |
| 12125-100 | 6 | 115 | 80 | 92 | 700 | 270 | 600 | 2.8 | 1000 | |
| 12125-150 | 6 | 78 | 80 | 65 | 800 | 240 | 530 | 3.5 | 1000 | |
| 12125-200 | 6 | 58 | 80 | 46 | 1200 | 290 | 570 | 4.5 | 1000 | |
| 14100-200 | 2.4 | 29 | 80 | 13 | * 2000 | 440 | 270 | 2.7 | 800 | |
| 14100-250 | 2.4 | 24 | 80 | 11 | * 2500 | 440 | 280 | 3.8 | 800 | |
Remarks:
The specifications stated above are just for some typical models. The other specifications are welcome.
