| Gear | Series 1 | 12 | 30 | 75 | 187.5 | 468.75 | 1171.875 |
| Reduction | Series 2 | 9.6 | 24 | 60 | 150 | 375 | 937.5 |
| Ratio | Series 3 | 40 | 120 | 300 | 750 | ||

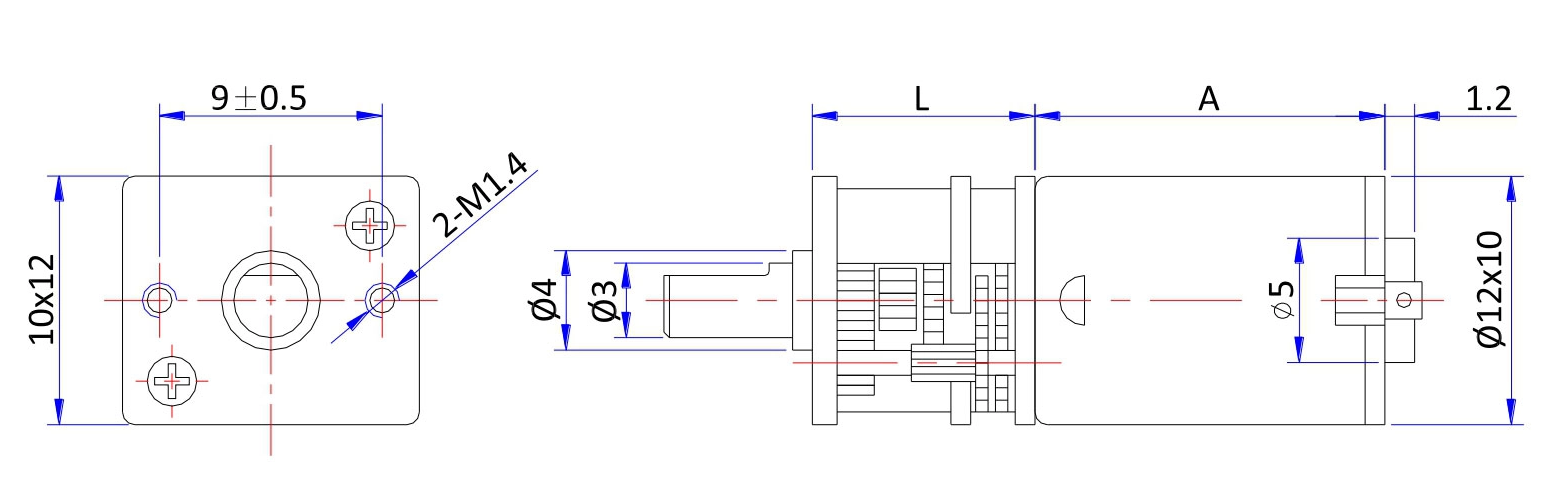

| Gearbox Length (L) | 11.2 | 12.6 | 14 | 16.3 | 17.7 | ||
| (Other reduction ratios are welcome) | |||||||
Brief Introduction:
These are a series of motors based on the flat, open-frame type gearboxesof Ø12x10mm. Gearbox length can be increased or decreased according to different gear reduction ratio. Motor can be any type but most popular motors are those that the diameter is approx. or a little less than Ø12mm. Gearbox spindle outputs from the centre of the gearbox.
Main Applications:
Electronic door lock, monitor, optic equipment, printer, medical equipment, etc.
| Seraial No. | ||
| 12GF030 | 12GFN30 | |
| A | 15 | 20 |
| Serial NO. | Model | Rated | No load | At Maximum Efficiency | At Stall | |||||
| Voltage | Speed | Current | Speed | Torque | Current | Output | Torque | Current | ||
| [VDC] | [rpm] | [mA] | [rpm] | [g.cm] | [mA] | [mW] | [Kg.cm] | [mA] | ||
| 12GF030 | 08260-287 | 4.5 | 40 | 30 | 32 | 500 | 150 | 160 | 3.1 | 600 |
| 09175-287 | 2.4 | 27 | 35 | 18 | 600 | 150 | 110 | 1.5 | 350 | |
| 4.5 | 52 | 45 | 30 | 1500 | 350 | 460 | 3.0 | 700 | ||
| 13115-287 | 2.4 | 55 | 30 | 40 | 700 | 350 | 280 | 3.0 | 500 | |
| 6.0 | 70 | 70 | 52 | 1200 | 250 | 640 | 4.0 | 700 | ||
Remarks:
The specifications stated above are just some basic models. The other specifications are welcome.
