PMDC Planetary Geared Motor 22JX10K-2238

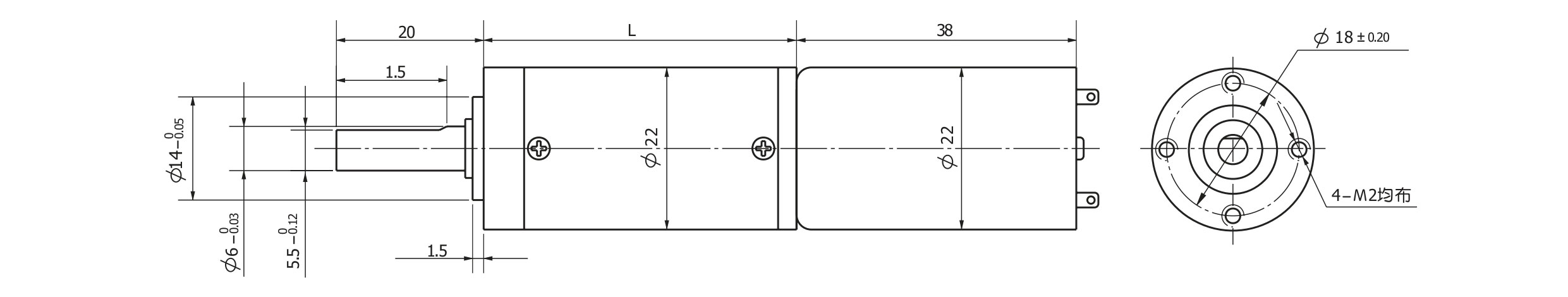

a-05-PMDC-Planetary-Geared-Motor-22JX10K-2238_page-0001_02

a-04-PMDC-Planetary-Geared-Motor-22JX5K-2238_page-0001_03

Type

Ratd voltage

(VDC)

No-load speed

(r/min)

No-load current

(mA)

Rated speed

(r/min)

Rated torque

(mN.m)

Output

power

(W)

Rated current

(mA)

Stall torque

(mN.m)

Stall

current

(A)

22ZY38-1260

6000

5150

1.6

195

19.5

1.1

22ZY38-12100

10000

9200

2.8

180

1.4

a-05-PMDC-Planetary-Geared-Motor-22JX10K-2238_page-0001_05

Redution ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	26	26	34.5	34.5	34.5	42.5	42.5	42.5	42.5	51	51	51	51	51
No-load speed r/min	1500	1200	428	315	222	117	84	60	43	31	23	16	11	8.3
Rated speed r/min	1390	990	360	270	190	100	72	51	37	27	19	14	10	7.5
Rated torque N.m	0.010	0.014	0.037	0.051	0.072	0.13	0.18	0.25	0.35	0.45	0.64	0.9	1	1
Max.permissible load in a short time N.m	0.3	0.3	0.6	0.6	0.6	1.5	1.5	1.5	1.5	3	3	3	3	3

a-05-PMDC-Planetary-Geared-Motor-22JX10K-2238_page-0001_07

Redution ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	26	26	34.5	34.5	34.5	42.5	42.5	42.5	42.5	51	51	51	51	51
No-load speed r/min	2695	1931	714	526	370	196	141	100	72	53	38	27	19	14
Rated speed r/min	2480	1776	657	484	341	180	130	92	66	49	35	25	18	13
Rated torque N.m	0.010	0.014	0.034	0.046	0.066	0.11	0.16	0.22	0.3	0.37	0.52	0.73	1	1
Max.permissible load in a short time N.m	0.3	0.3	0.6	0.6	0.6	1.5	1.5	1.5	1.5	3	3	3	3	3
