| Type | Ratd voltage (VDC) | No-load speed (r/min) | No-load current (mA) | Rated speed (r/min) | Rated torque (mN.m) | Output power (W) | Rated current (mA) | Stall torque (mN.m) | Stall current (A) |
| 36ZY57-2430 | 24 | 3000 | 100 | 2500 | 15 | 4.5 | 0.52 | 92 | 2.2 |
| 36ZY57-2436 | 24 | 3600 | 120 | 3000 | 17 | 5 | 0.5 | 89 | 2.0 |
| 36ZY57-2442 | 24 | 4200 | 120 | 3600 | 19 | 7 | 0.52 | 68 | 2.8 |
| Redution ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |

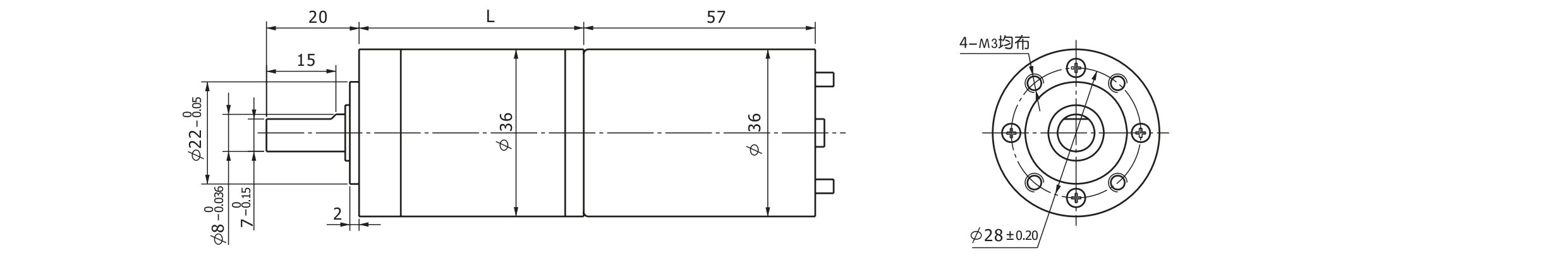

| Length(L) mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 55.5 | 55.5 | 55.5 |
| No-load speed r/min | 810 | 577 | 214 | 157 | 111 | 59 | 42 | 30 | 21 | 16 | 11 | 8.1 |
| Rated speed r/min | 675 | 480 | 178 | 131 | 92 | 49 | 35 | 25 | 18 | 14 | 9.5 | 7.2 |
| Rated torque N.m | 0.052 | 0.074 | 0.19 | 0.25 | 0.36 | 0.65 | 0.91 | 1.3 | 1.8 | 2.3 | 3 | 3 |
| Max.permissible load in a short time N.m | 0.9 | 0.9 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Redution ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| Length(L) mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 48.5 | 48.5 |
| No-load speed r/min | 972 | 692 | 257 | 189 | 133 | 70 | 50 | 36 | 25 | 19 | 13 |
| Rated speed r/min | 810 | 577 | 214 | 157 | 111 | 59 | 42 | 30 | 21 | 16 | 12 |
| Rated torque N.m | 0.06 | 0.084 | 0.21 | 0.29 | 0.41 | 0.74 | 1 | 1.4 | 2 | 2.6 | 3 |
| Max.permissible load in a short time N.m | 0.9 | 0.9 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 |
| Redution ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| Length(L) mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 55.5 | 55.5 |
| No-load speed r/min | 1135 | 807 | 300 | 521 | 155 | 82 | 59 | 4 | 30 | 22 | 16 |
| Rated speed r/min | 986 | 702 | 260 | 192 | 135 | 71 | 51 | 36 | 26 | 19 | 14 |
| Rated torque N.m | 0.066 | 0.094 | 0.24 | 0.32 | 0.46 | 0.82 | 1.1 | 1.6 | 2.2 | 2.9 | 3 |
| Max.permissible load in a short time N.m | 0.9 | 0.9 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 |
| Type | Ratd voltage (VDC) | No-load speed (r/min) | No-load current (mA) | Rated speed (r/min) | Rated torque (mN.m) | Output power (W) | Rated current (mA) | Stall torque (mN.m) | Stall current (A) |
| 36ZY57-2430 | 24 | 3000 | 100 | 2500 | 15 | 4.5 | 0.52 | 92 | 2.2 |
| 36ZY57-2436 | 24 | 3600 | 120 | 3000 | 17 | 5 | 0.5 | 89 | 2.0 |
| 36ZY57-2442 | 24 | 4200 | 120 | 3600 | 19 | 7 | 0.52 | 68 | 2.8 |
| Redution ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Length(L) mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 55.5 | 55.5 | 55.5 |
| No-load speed r/min | 810 | 577 | 214 | 157 | 111 | 59 | 42 | 30 | 21 | 16 | 11 | 8.1 |
| Rated speed r/min | 675 | 480 | 178 | 131 | 92 | 49 | 35 | 25 | 18 | 14 | 9.5 | 7.2 |
| Rated torque N.m | 0.052 | 0.074 | 0.19 | 0.25 | 0.36 | 0.65 | 0.91 | 1.3 | 1.8 | 2.3 | 3 | 3 |
| Max.permissible load in a short time N.m | 0.9 | 0.9 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Redution ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| Length(L) mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 48.5 | 48.5 |
| No-load speed r/min | 972 | 692 | 257 | 189 | 133 | 70 | 50 | 36 | 25 | 19 | 13 |
| Rated speed r/min | 810 | 577 | 214 | 157 | 111 | 59 | 42 | 30 | 21 | 16 | 12 |
| Rated torque N.m | 0.06 | 0.084 | 0.21 | 0.29 | 0.41 | 0.74 | 1 | 1.4 | 2 | 2.6 | 3 |
| Max.permissible load in a short time N.m | 0.9 | 0.9 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 |
| Redution ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |
| Length(L) mm | 31.5 | 31.5 | 38.5 | 38.5 | 38.5 | 48.5 | 48.5 | 48.5 | 48.5 | 55.5 | 55.5 |
| No-load speed r/min | 1135 | 807 | 300 | 521 | 155 | 82 | 59 | 4 | 30 | 22 | 16 |
| Rated speed r/min | 986 | 702 | 260 | 192 | 135 | 71 | 51 | 36 | 26 | 19 | 14 |
| Rated torque N.m | 0.066 | 0.094 | 0.24 | 0.32 | 0.46 | 0.82 | 1.1 | 1.6 | 2.2 | 2.9 | 3 |
| Max.permissible load in a short time N.m | 0.9 | 0.9 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 |
