PMDC Planetary Geared Motor 42JX100K-4268

Share to:

PMDC Planetary Geared Motor 42JX100K-4268

Availability:

Quantity:



Inquire Add to Basket

Product Description

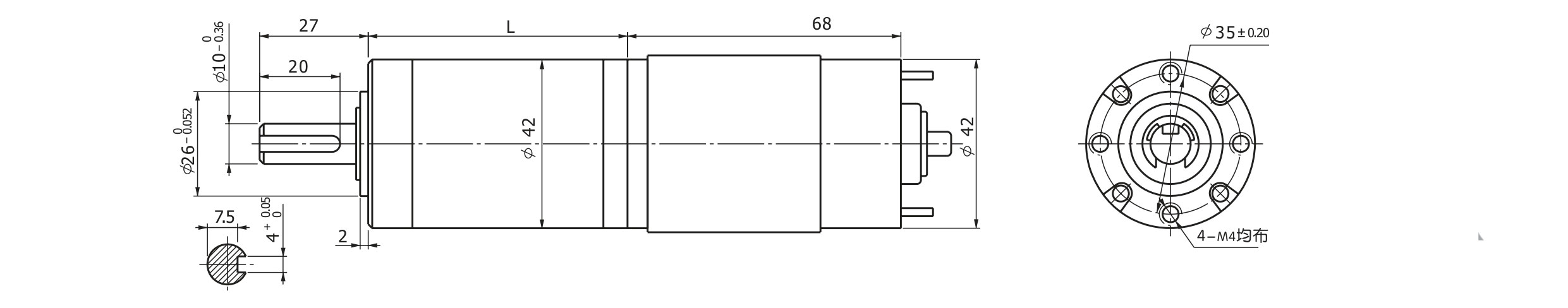

a-18-PMDC-Planetary-Geared-Motor-42JX100K-4268_page-0001_02

a-04-PMDC-Planetary-Geared-Motor-22JX5K-2238_page-0001_03

Type

Ratd voltage

(VDC)

No-load speed

(r/min)

No-load current

(mA)

Rated speed

(r/min)

Rated torque

(mN.m)

Output

power

(W)

Rated current

(mA)

Stall torque

(mN.m)

Stall

current

(A)

42ZY68-2420

2000

0.15

1700

8.7

0.6

220

2.0

42ZY68-2430

3000

0.17

2200

9.0

1.0

150

2.3

a-18-PMDC-Planetary-Geared-Motor-42JX100K-4268_page-0001_05

Redution ratio	3.71	5.18	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	51.5	51.5	51.5	51.5	51.5	64.5	64.5	64.5	64.5	74.5	74.5	74.5
No-load speed r/min	590	420	157	116	81	43	31	22	16	11	8.3	6.0
Rated speed r/min	460	330	121	89	63	33	24	17	12	9.0	6.5	5.0
Rated torque N.m	0.17	0.24	0.63	0.85	1.2	2.1	3	4.2	5.9	7.6	10	10
Max.permissible load in a short time N.m	1.5	1.5	6	6	6	15	15	15	15	15	15	15

a-18-PMDC-Planetary-Geared-Motor-42JX100K-4268_page-0001_07

Redution ratio	3.71	5.18	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	51.5	51.5	51.5	51.5	51.5	64.5	64.5	64.5	64.5	74.5	74.5	74.5
No-load speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1
Rated speed r/min	592	424	157	115	81	43	31	22	16	11	8.3	6.3
Rated torque N.m	0.14	0.19	0.5	0.68	0.97	1.7	2.4	3.4	4.7	6.1	8.5	10
Max.permissible load in a short time N.m	1.5	1.5	6	6	6	15	15	30	30	30	30	30
