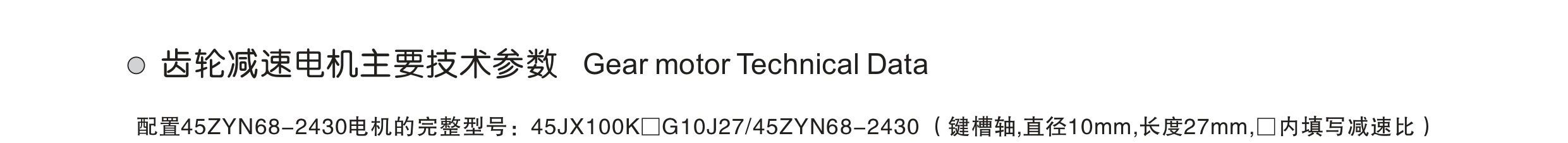

| Type | Ratd voltage (VDC) | No-load speed (r/min) | No-load current (mA) | Rated speed (r/min) | Rated torque (mN.m) | Output power (W) | Rated current (mA) | Stall torque (mN.m) | Stall current (A) |
| 45ZYN68-2430 | 24 | 3000 | 1.35 | 2400 | 71 | 17.6 | 1.35 | 0.30 | 4.43 |
| Redution ratio | 3.71 | 5.18 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 |

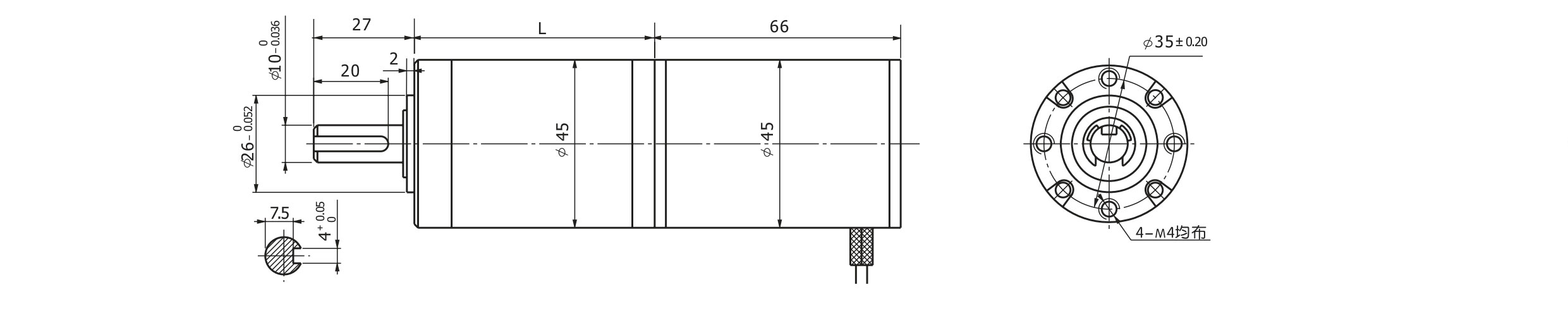

| Length(L) mm | 51.5 | 51.5 | 51.5 | 51.5 | 51.5 | 64.5 | 64.5 | 64.5 | 64.5 | 74.5 | 74.5 |
| No-load speed r/min | 809 | 579 | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 11 |
| Rated speed r/min | 647 | 463 | 171 | 126 | 89 | 47 | 34 | 24 | 17 | 13 | 9.5 |
| Rated torque N.m | 0.24 | 0.33 | 0.81 | 1.1 | 1.6 | 2.6 | 3.7 | 5.2 | 7.2 | 8.9 | 10 |
| Max.permissible load in a short time N.m | 1.5 | 1.5 | 6 | 6 | 6 | 15 | 15 | 15 | 15 | 30 | 30 |
