PMDC Planetary Geared Motor 56(60)JX300K-60105

Share to:

PMDC Planetary Geared Motor 56(60)JX300K-60105

Availability:

Quantity:



Inquire Add to Basket

Product Description

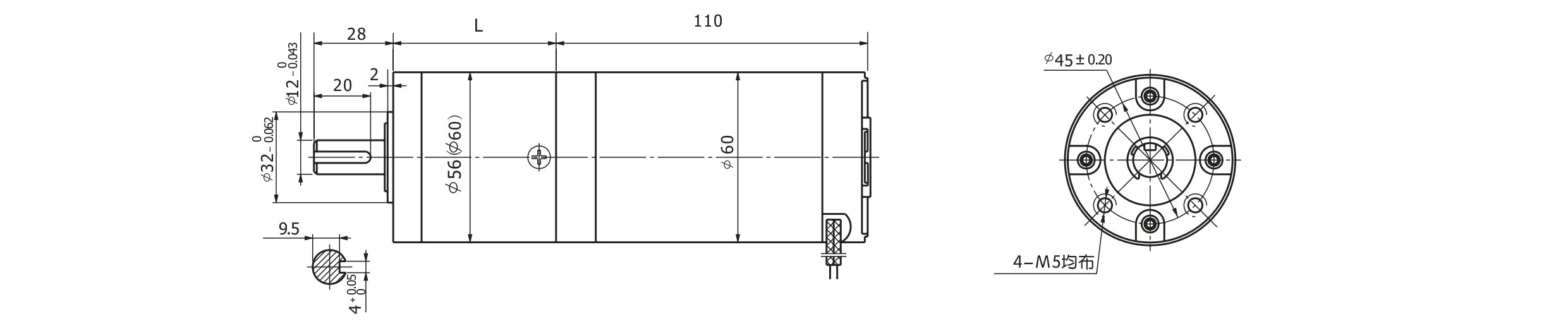

a-24-PMDC-Planetary-Geared-Motor-56(60)JX300K-60105_page-0001_02

a-04-PMDC-Planetary-Geared-Motor-22JX5K-2238_page-0001_03

Type

Ratd voltage

(VDC)

No-load speed

(r/min)

No-load current

(mA)

Rated speed

(r/min)

Rated torque

(mN.m)

Output

power

(W)

Rated current

(mA)

Stall torque

(mN.m)

Stall

current

(A)

60ZY105-2420

2000

0.32

1550

125

1.6

0.55

6.0

60ZY105-2430

3000

0.4

2500

125

2.2

0.72

10.8

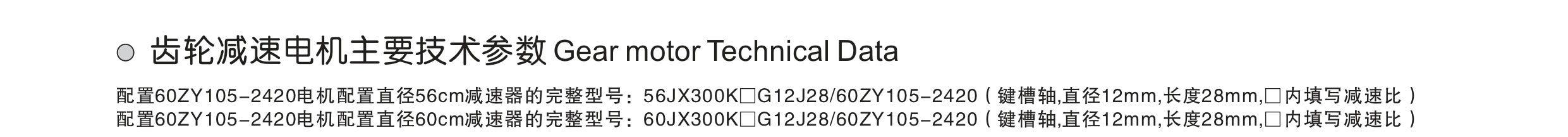

a-24-PMDC-Planetary-Geared-Motor-56(60)JX300K-60105_page-0001_05

Redution ratio	3.6	4.25	13	15	18	47	55	65	76	168	198	234	276	326
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	46.0	46.0	46.0	46.0	46.0	57.5	57.5	57.5	57.5	77.0	77.0	77.0	77.0	77.0
No-load speed r/min	555	470	154	133	111	42	36	30	26	12	10	8.5	7.2	6.1
Rated speed r/min	430	365	119	103	86	33	28	24	20	9.2	7.8	6.6	5.6	4.7
Rated torque N.m	0.43	0.5	1.4	1.7	2.0	5.0	5.8	7.3	8.1	17	20	23.7	27.9	30
Max.permissible load in a short time N.m	4.5	4.5	15	15	15	30	30	30	30	45	45	45	45	45

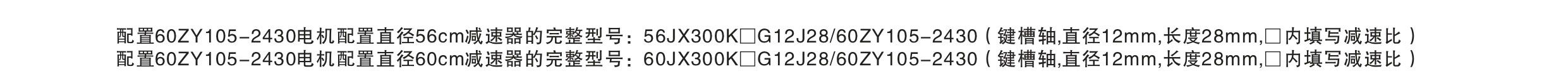

a-24-PMDC-Planetary-Geared-Motor-56(60)JX300K-60105_page-0001_07

Redution ratio	3.6	4.25	13	15	18	47	55	65	76	168	198	234	276	326
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	46.0	46.0	46.0	46.0	46.0	57.5	57.5	57.5	57.5	77.0	77.0	77.0	77.0	77.0
No-load speed r/min	833	706	230	200	167	64	54	46	39	18	15	13	11	9.2
Rated speed r/min	694	588	192	167	139	53	45	38	33	15	12	10	9.0	7.7
Rated torque N.m	0.43	0.50	1.4	1..	2.0	5.0	5.8	7.3	8.1	17.0	20.0	23.7	27.9	30
Max.permissible load in a short time N.m	4.5	4.5	15	15	15	30	30	30	30	45	45	45	45	45
