PMDC Planetary Geared Motor 72JX850K-71110

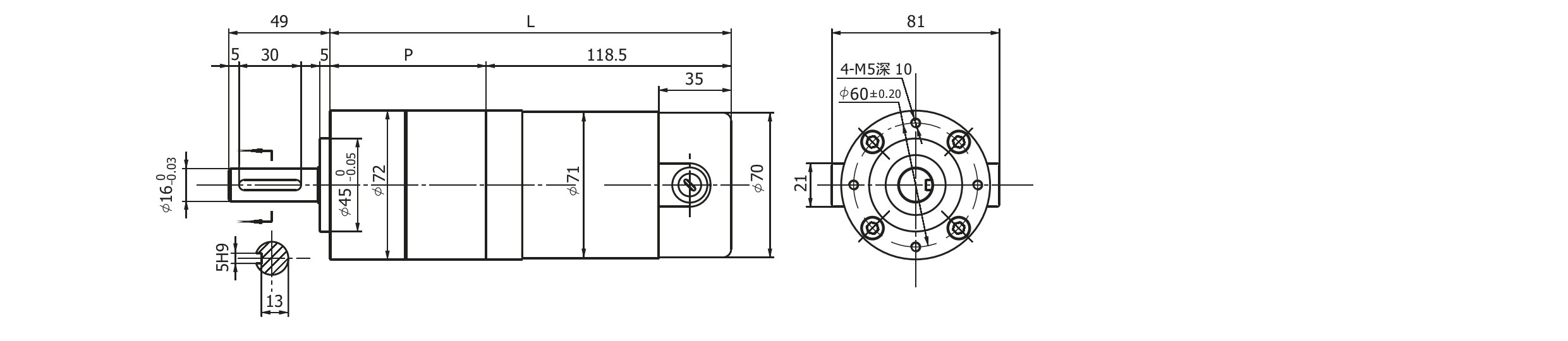

a-25-PMDC-Planetary-Geared-Motor-72JX850K-71110_page-0001_02

a-04-PMDC-Planetary-Geared-Motor-22JX5K-2238_page-0001_03

Type

Ratd voltage

(VDC)

No-load speed

(r/min)

No-load current

(mA)

Rated speed

(r/min)

Rated torque

(mN.m)

Output

power

(W)

Rated current

(mA)

Stall torque

(mN.m)

Stall

current

(A)

71ZY110-2420

2000

0.4

1600

0.20

2.4

1.0

9.5

71ZY110-2430

3000

0.5

2400

0.24

3.5

1.2

a-25-PMDC-Planetary-Geared-Motor-72JX850K-71110_page-0001_05

Redution ratio	4	7	14	19	27	35	46	68	82	100	124	150	195	308
Number of gear trains	1	1	2	2	2	3	3	3	3	3	3	3	3	3
Length(L) mm	56	56	75.5	75.5	75.7	75.5	75.5	95.5	95.5	95.5	95.5	95.5	95.5	95.5
No-load speed r/min	500	286	143	105	74	57	43	29	24	20	16	13	10	6
Rated speed r/min	400	229	114	84	59	46	35	24	20	16	13	11	8	6
Rated torque N.m	0.7	1.3	2.3	3.1	4.4	5.7	7.5	9.9	12	15	18	22	28	45
Max.permissible load in a short time N.m	25	25	85	85	85	85	85	170	170	170	170	170	170	170

a-25-PMDC-Planetary-Geared-Motor-72JX850K-71110_page-0001_07

Redution ratio	4	7	14	19	27	35	46	68	82	100	124	150	195	308
Number of gear trains	1	1	2	2	2	3	3	3	3	3	3	3	3	3
Length(L) mm	56	56	75.5	75.5	75.5	75.5	75.5	95.5	95.5	95.5	95.5	95.5	95.5	95.5
No-load speed r/min	750	429	214	158	111	86	65	44	37	30	24	20	15	10
Rated speed r/min	600	343	171	126	89	69	52	35	29	24	18	16	12	8
Rated torque N.m	0.9	1.5	2.7	3.7	5.2	6.8	8.9	12	14	18	22	26	34	54
Max.permissible load in a short time N.m	25	25	85	85	85	85	85	170	170	170	170	170	170	170
