PMDC Planetary Geared Motor 82JX1200K-83125

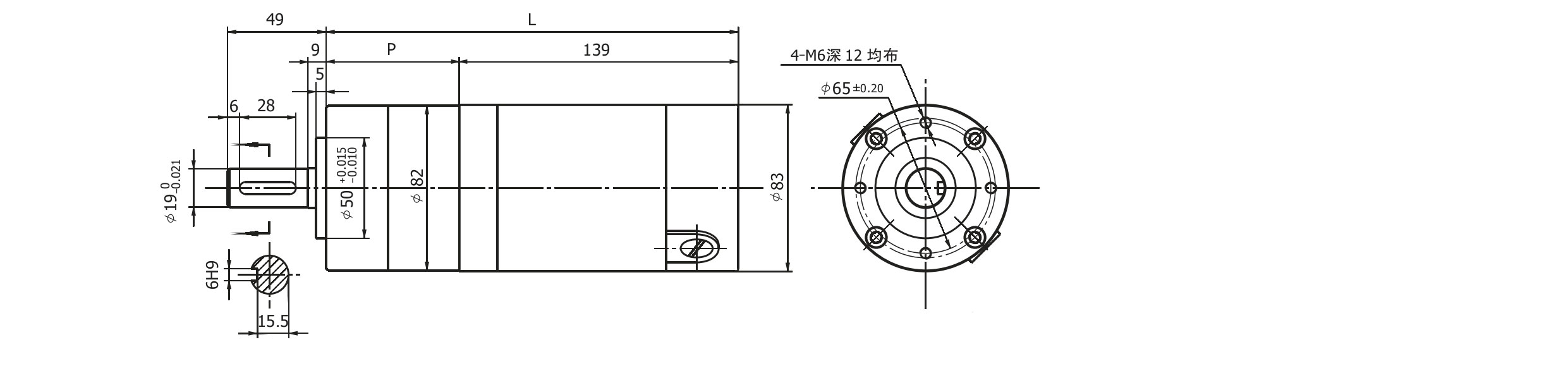

a-26-PMDC-Planetary-Geared-Motor-82JX1200K-83125_page-0001_02

a-04-PMDC-Planetary-Geared-Motor-22JX5K-2238_page-0001_03

Type

Ratd voltage

(VDC)

No-load speed

(r/min)

No-load current

(mA)

Rated speed

(r/min)

Rated torque

(mN.m)

Output

power

(W)

Rated current

(mA)

Stall torque

(mN.m)

Stall

current

(A)

83zy125-2420

2000

0.8

1700

0.24

3.5

1.6

83ZY125-2430

3000

0.9

2500

0.30

4.6

1.8

a-26-PMDC-Planetary-Geared-Motor-82JX1200K-83125_page-0001_05

Redution ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	3	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90.3	90.3	90.3	90.3	114.6	114.6	114.6	114.6	114.6	114.6	114.6	114.6
No-load speed r/min	500	286	143	105	80	63	40	31	28	22	17	13	10	6
Rated speed r/min	425	243	121	89	68	53	34	27	24	19	15	11	9	5
Rated torque N.m	0.9	1.5	2.7	3.7	4.9	6.2	8.8	11	12	16	20	27	34	58
Max.permissible load in a short time N.m	40	40	120	120	120	120	240	240	240	240	240	240	240	240

a-26-PMDC-Planetary-Geared-Motor-82JX1200K-83125_page-0001_07

Redution ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	3	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90.3	90.3	90.3	90.3	114.6	114.6	114.6	114.6	114.6	114.6	114.6	114.6
No-load speed r/min	750	429	214	158	120	94	60	47	42	33	26	20	15	9
Rated speed r/min	625	357	179	132	100	78	50	39	35	28	22	16	13	8
Rated torque N.m	1.1	1.9	3.4	4.6	6.1	7.8	11	14	16	20	25	33	43	72
Max.permissible load in a short time N.m	40	40	120	120	120	120	240	240	240	240	240	240	240	240
